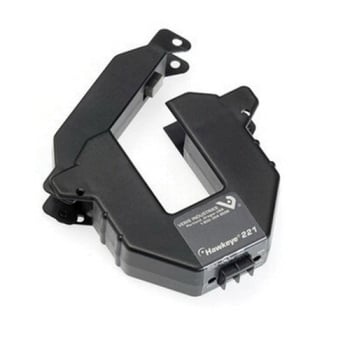

H221 Veris

Name: H221 Veris
Brand: Veris
SKU: 23258
Availability: InStock

$206.60

Hawkeye 0 to 300 A Input 4 to 20 mA DC Output High Analog Current Transducer, Split-Core, 1.6 x 1.4 in

SKU: 23258 Category: Temperature Controls Brand: Veris

Description
Additional information

Datasheet

The Veris H221 Split Core, Span Adj., Range: 0-300AAC, Output: 4-20mA, Loop

Application	:	Building Automation Systems
Current Measurement Accuracy	:	±2% of F.S. above 30 A
Current Measurement Range	:	0 – 300 A
Current Sensor type	:	Current Transducer, AC
Electrical Wiring Size	:	22 – 12 AWG (0.33 – 3.3 mm²)
Measurement Type	:	AC Current
Model	:	H221
Monitored Frequency Range	:	50 – 60 Hz
Monitored Wire Size	:	1.4″ (35 mm)
Mounting	:	Split Core
Operating Humidity	:	10 – 90% RH, non-condensing
Operating Temperature	:	5 – 140 °F (-15 – 60 °C)
Output Specifications	:	4 – 20 mA
Outputs	:	Analog output
Product Certification	:	UL \| CE
Product Type	:	Sensor
Range	:	High Current Series
Relay Coil Voltage	:	None
Relay Contact Ratings	:	None
Relay Poles/Throw	:	None
Warranty	:	5 years

Features:

Hawkeye H221 analog current transducers provide reliable load trending information for large motor loads (up to 2400 A), with a proportional 4 to 20 mA signal. The H221 versions include a span potentiometer that allows each sensor to be calibrated for maximum resolution.

Split-core design for easy installation and fast retrofits
No need for external CTs on large conductors
Large openings for heavy conductors
Loop powered 4 to 20 mA output
2-wire design reduces wiring cost
Zero and span adjustments for field flexibility
30 mA at 12 to 30 VDC sensor power

Weight	3 lbs
Dimensions	5 × 9 × 3 in
