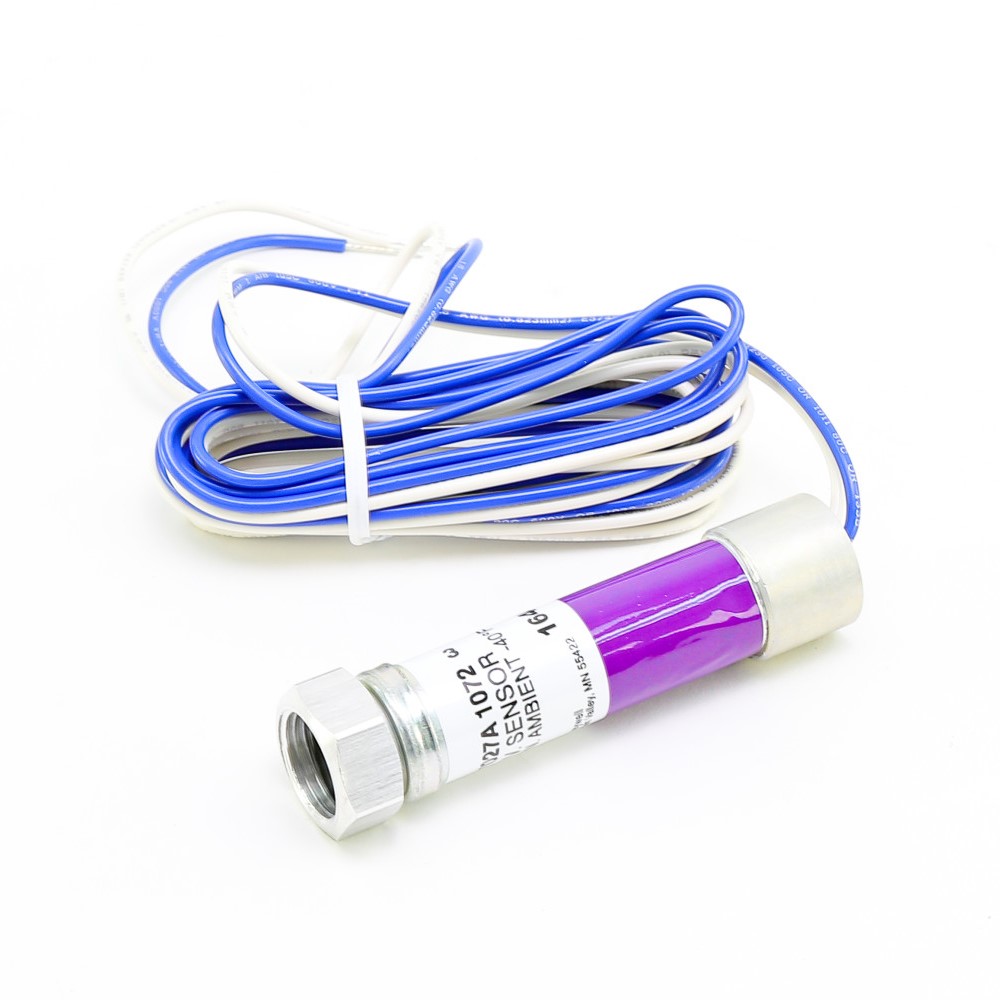

C7027A1072 Honeywell Flame Sensor
$375.00
The Honeywell C7027A1072 Flame Sensor -40 – 250F W 1/2 IN. CONDUIT SPUD
13 in stock (can be backordered)
The Honeywell C7027A1072 Flame Sensor -40 – 250F W 1/2 IN. CONDUIT SPUD; Minipeeper Ultraviolet Flame Detector, Used for Coal, Gas and Oil Fired Burners, 96 Inch Lead Length, -40/215 Degree Ambient Temperature, Mounts on 1/2 Inch Sighting Pipe Using A Integral Collar, Includes 1/2 Inch NPT Spud Connector
Overview
Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.
Features
- Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
- C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
- Detectors can be wired in parallel for difficult sighting applications.
- C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
- Allows for blast tube mounting due to compact size.
- C7044 mounts with a two screw bracket.
- The C7044 UV sensor tube is enclosed in a stainless steel housing.
- C7044 has the capability of side or end viewing in flame monitoring applications.
Product Specification
| Application | Coal fired burners; Gas fired burners; Oil fired burners |
| Dimensions (in.) | 1 1/16 in. diameter x 4 in. long |
| Dimensions (mm) | 27 mm diameter x 102 mm long |
| Includes | 1/2 in. NPT threaded spud connector. |
| Used With | Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290 |
| Comments | Detects ultraviolet radiation in flames |
| Mounting | Integral nut for 1/2 in. sighting pipe. |
| Approvals, Underwriters Laboratories Inc. | Listed: File No. MP268, Guide No. MCCZ |
| Approvals, Canadian Standards Association | Certified: Master Report LR95329-1 |
| Electrical Connections | 2 NEC Class 1 lead wires |
| Vibration | 0.5 G max |
| Approvals, Swiss RE | Acceptable |
| Approvals, Factory Mutual | Approved: Report No. 24181.03 |
| Ambient Temperature Range (F) | -40 F to 215 F |
| Ambient Temperature Range (C) | -40 C to 102 C |
| Lead Length (in.) | 96 in. |
| Lead Length (mm) | 2438 mm |
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 4 × 4 in |
