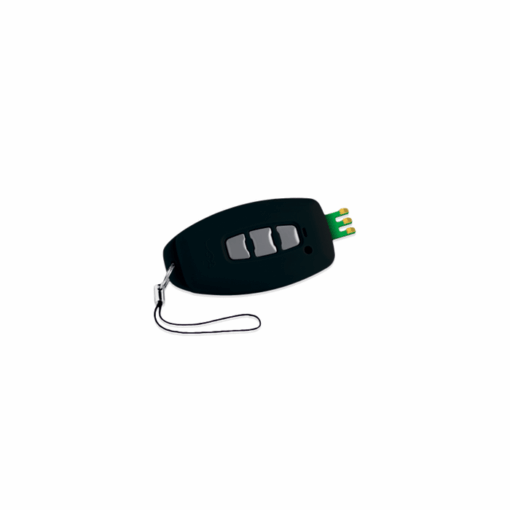

TC3KEY Johnson Controls Programming Key

Overview

The TC3KEY Johnson Controls Programming Key is a compact cloning tool designed for TC Series Panel-Mount Refrigeration Controllers. It allows users to download configuration settings from a controller and upload them to other identical controllers, streamlining the setup process and ensuring configuration consistency.

Features

• Cloning Capability: Enables quick downloading and uploading of configuration parameters between identical controllers.
• Status Indicator: Equipped with an upload/download status LED for visual monitoring during data transfer.
• Durable Design: Built with a black, self-extinguishing container for heat and fire resistance.
• Simple Connectivity: Features a female Micro-B USB connector for interfacing with compatible equipment.

Specifications

• Dimensions: 33.0 mm x 73.5 mm x 13.0 mm (1 5/16 in. x 2 7/8 in. x 1/2 in.)
• Connection Method: Female Micro-B USB connector
• Power Supply: USB powered
• Degree of Protection: IP00
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Operating Humidity: 10% to 90% RH, non-condensing
• Software Class: A
• Compliance: cURus Recognized, FCC Compliant Class A, Industry Canada Class A, CE Mark

Applications

• Field programming and parameter backup for Johnson Controls TC Series refrigeration controllers.
• Multi-unit commercial refrigeration setups requiring fast duplication of configuration profiles.
