M7284Q1009 Honeywell Actuator
$1,400.00
Modutrol IV Motor, 120Vac, Non Spring Return, 150 Lb-In Torque, 2 Internal Auxiliary Switches, 30-60 Second Nominal Timing, Modualting, 4-20 Ma Control Signal, 90-160 Degree Stroke, 90 Degree Factory Stroke Setting, Foot Mounted, Dual Ended Square Shaft, Integral Junction Box Provides Nema 3 Weather Protection, Includes Transformer and Screw Terminal Adapter

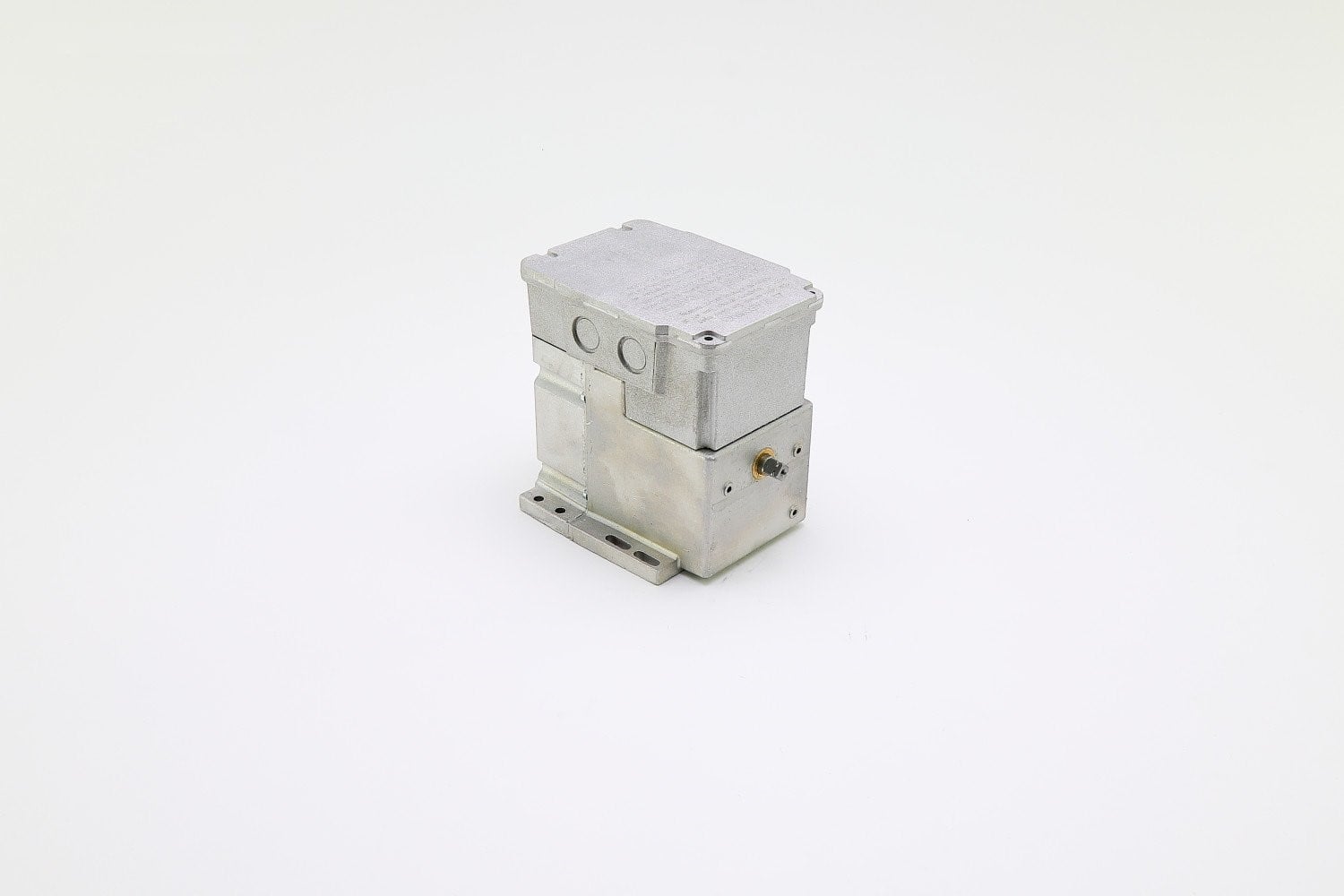

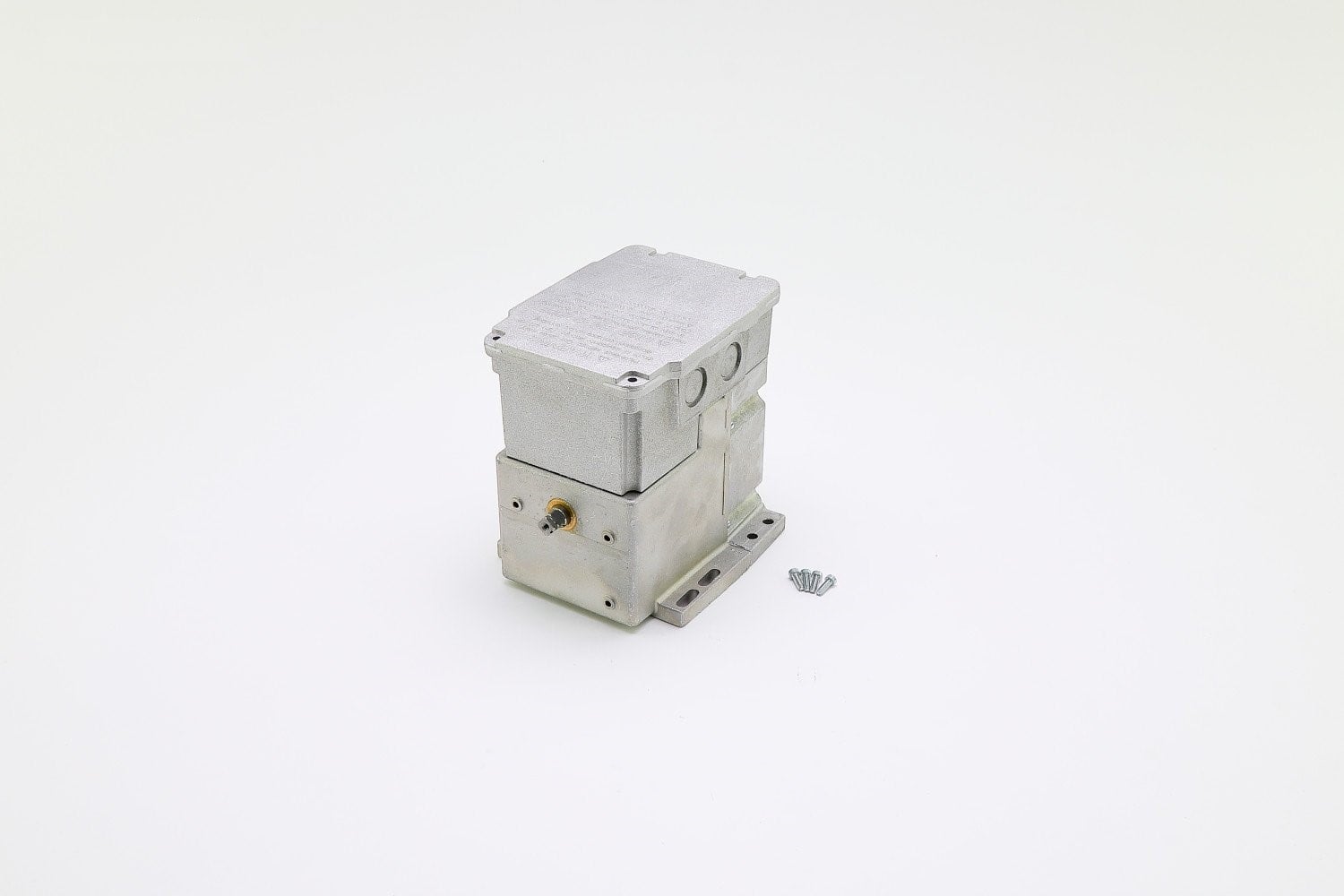

Honeywell M7284Q1009 Actuator – Modutrol IV Non-Spring Return, 120V

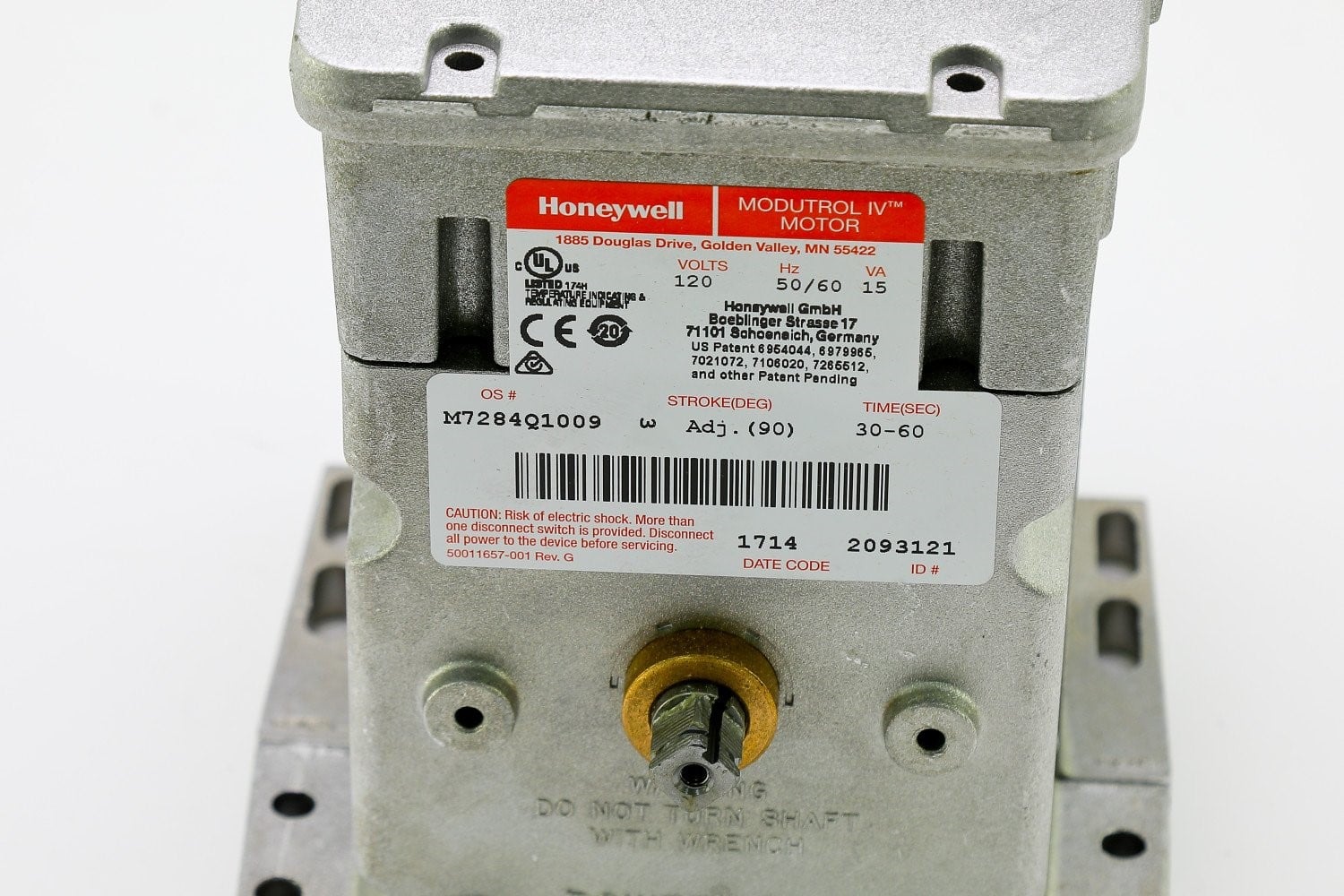

THE HONEYWELL M7284Q1009 NON-Spring RETURN FOOT MOUNTED Actuator. 29VA 120V 50/60 HZ 90 DEG ADJ STROKE 30-60 SEC TIMING 150LB-IN TORQUE W/ Transformer, 4-20 MA INPUT, W/ADJ ZERO AND SPAN, 2 AUX Switch, DUAL Shaft.
Overview
The Honeywell M7284Q1009 is a durable Modutrol IV actuator designed for precise modulation of dampers and valves in HVAC and combustion control systems. Featuring non-spring return operation, this actuator delivers dependable performance with 150 lb-in torque, dual auxiliary switches, and adjustable stroke settings. Its rugged housing and versatile mounting design make it ideal for demanding commercial and industrial environments.
Specifications
| Specification | Value |
|---|---|
| Actuator Type | Modulating, Non-Spring Return |
| Voltage | 120 VAC, 50/60 Hz |
| Torque | 150 lb-in |
| Stroke | Adjustable 90° to 160° (factory set at 90°) |
| Timing | 30–60 seconds for full stroke |
| Control Signal | 4–20 mA proportional |
| Auxiliary Switches | Two internal |
| Shaft Design | Dual-ended square shaft (3/8 in) |
| Mounting | Foot-mounted |
| Power Consumption | 15 VA driving |
| Ambient Temp Range | –40 °F to +150 °F (–40 °C to +66 °C) |
| Housing | Die-cast aluminum with weather protection (NEMA 3) |
Key Features & Benefits
-
Provides proportional modulation with a 4–20 mA input for precision control.
-
Dual auxiliary switches for additional control logic or system feedback.
-
Adjustable stroke range from 90° to 160° to fit various applications.
-
Rugged construction with wide ambient operating temperature range.
-
Foot-mounting design simplifies installation in retrofit or new setups.
-
Suitable for dampers, valves, and combustion air systems.
Applications
-
Commercial HVAC damper control
-
Boiler and burner gas/air valve actuation
-
Retrofit replacement for existing Modutrol IV motors
-
Industrial combustion systems requiring modulating control
Installation & Maintenance
-
Verify wiring and polarity before energizing the unit.
-
Adjust stroke limits to meet system requirements.
-
Ensure actuator linkage is free from binding.
-
Regularly inspect auxiliary switches for accurate operation.
-
Avoid manually forcing the shaft to prevent gear damage.
| Weight | 8 lbs |
|---|---|

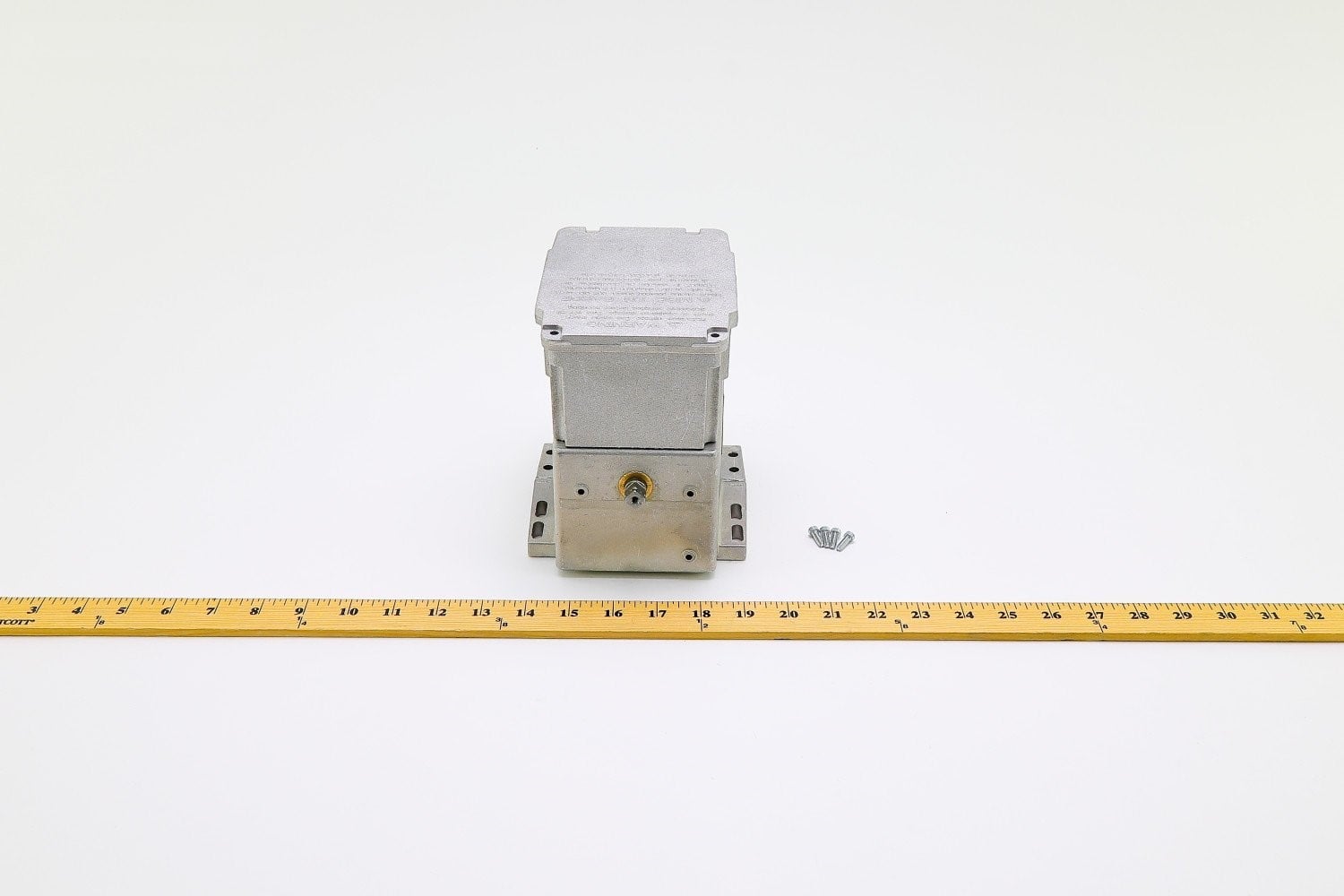

| Dimensions | 7 × 10 × 8 in |
