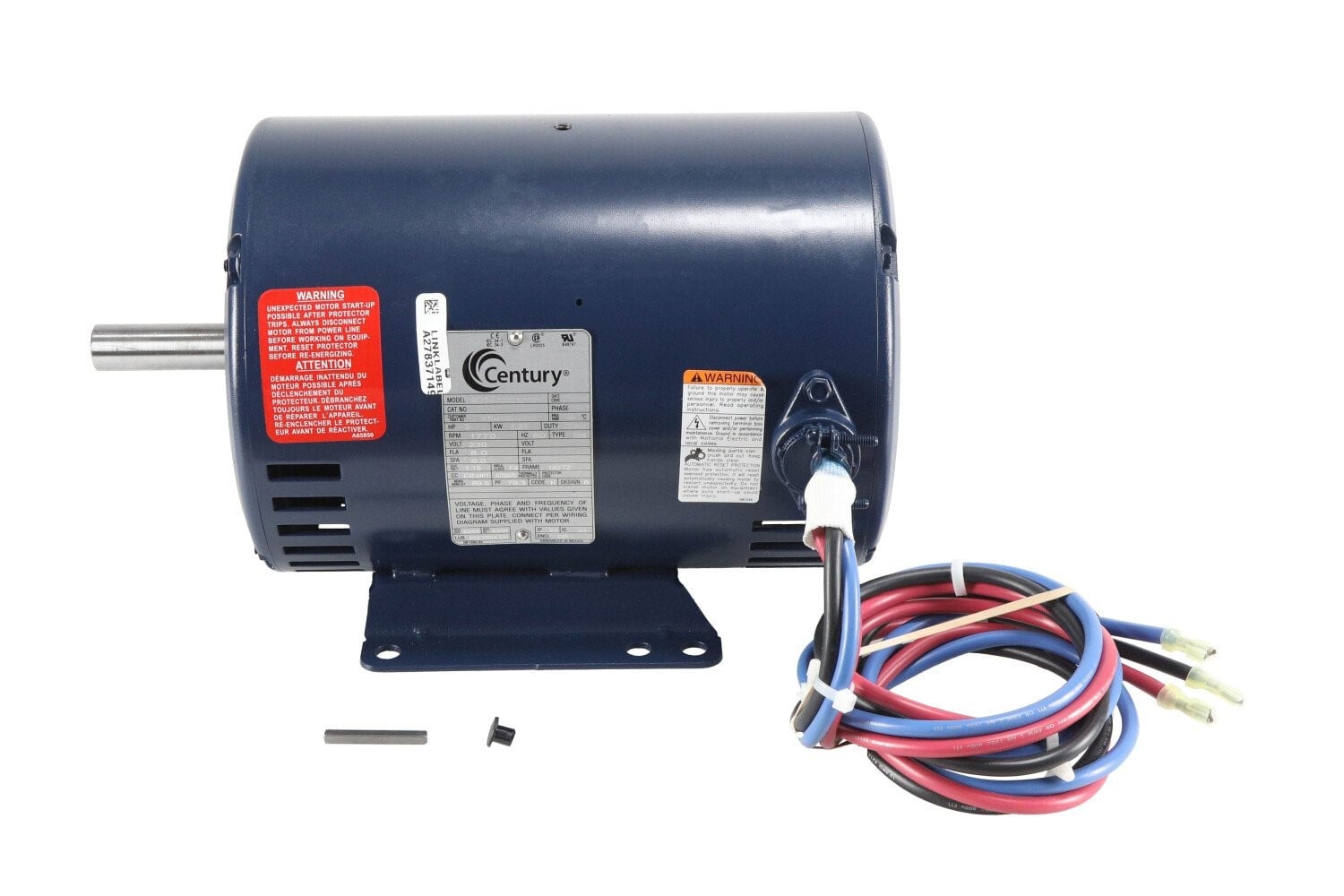

MOT7515 Trane Motor

Overview

The Trane MOT7515 is a general-purpose, 3 horsepower (HP) electric motor. It is designed as an Original Equipment Manufacturer (OEM) component for Trane Heating, Ventilation, and Air Conditioning (HVAC) systems. This motor operates on a three-phase electrical supply, typically at 208-230 volts. It is built for reliable performance in demanding industrial and commercial applications.

Features

The MOT7515 motor is engineered for durability and reliable operation. Key features include:

• Power: Delivers 3 HP.
• Bearing Type: Utilizes Ball bearings.
• Thermal Protection: Includes a thermal protector (TRUE) for enhanced safety.
• Enclosure Type: Features an Open Dripproof (ODP) enclosure, which offers protection from dripping liquids.
• Rotation: It has a reversible rotation, typically Counter-Clockwise (CCW).
• Mount: Rigid Base mounting.
• Insulation Class: Rated at Insulation Class F.
• Service Factor: Has a high service factor of 1.15.

Specifications

• Part Number: MOT7515
• Horsepower (HP): 3 HP
• Voltage Range: 208-230V
• Phase: Three (3PH)
• Frequency (Hz): 60 Hz
• RPM: 1,770 RPM (Range: 1,700-1,800)
• Load Current (A): 8.8 A
• Shaft Diameter: 0.875 inches
• Frame Size: 184T Frame
• Shipping Weight: 54 lbs

Applications

The Trane MOT7515 is a versatile motor primarily used in various Trane HVAC systems as a general-purpose component. Its durable construction and ODP enclosure make it suitable for applications that require a robust three-phase motor, such as in fans and blowers within commercial or industrial HVAC equipment.
