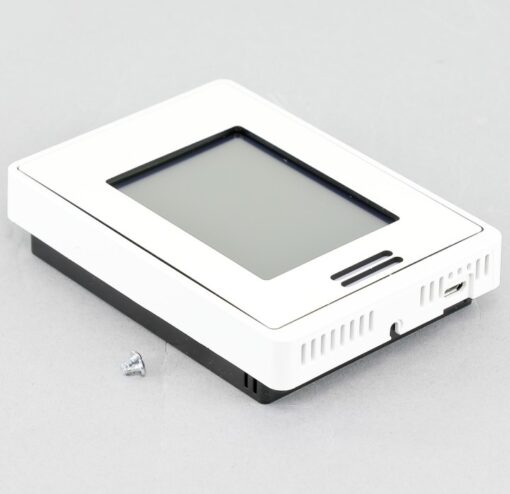

SE8350U0B11 Schneider Electric Thermostat

Name: SE8350U0B11 Schneider Electric Thermostat
Brand: Schneider Electric
SKU: SE8350U0B11
Availability: InStock

$458.30

LWV FCU BN RH WHT WHT

SKU: SE8350U0B11 Category: Thermostats Brand: Schneider Electric

LWV FCU BN RH WHT WHT

For 2 and 4-pipe fan coil units
3-speed fan control
Universal control outputs
Product Alert: Must purchase communication module (VCM8000V5045P) separately for Zigbee Pro

Product Specifications

[Us] rated supply voltage	24 V AC 50/60 Hz +/- 15 %
Application	Low voltage fan coil
AWG Gauge	AWG 24…AWG 18
Brand	Schneider Electric
By Schneider	Yes
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Color Casing	White
Communication Port Protocol	BACnet MS/TP
	Modbus RTU
Depth	0.98 in (25 mm)
Device Short Name	SE8300
Directives	2014/30/EU – electromagnetic compatibility
	2014/35/EU – low voltage directive
	2014/53/EU – radio equipment directive
Economizer	Yes
Final Result for Flywheel performance tracking	Edge control non-recurring
Function Available	Available with CO2/RH/T
	Brightness sensor
	Changes can be made directly over display
	Code lock function
	Easily configurable
	Fan control
	Firmware update by USB
	HVAC control
Height	4.72 in (120 mm)
Humidity Calibration Certificate	1 pt
Humidity Control	Yes
Humidity Measurement Drift	Less Than 1 % Yearly
Humidity Setting Range	30…95 %
Information Displayed	Temperature
Input Type	Analog 5
	Dry contact 2
Input Voltage	0…10 V DC
Line Rated Current	4 A
Manufacturer	Schneider Electric
Market Segment	Buildings
	Healthcare
	Lodging/Hotel
	Non-critical buildings
	Office
	Residential
	School
	Small commercial
Measurement Accuracy	Humidity +/- 10 %, 10…20 % non-condensing)
	Humidity +/- 10 %, 80…90 % non-condensing)
	Humidity +/- 5 %, 20…80 % RH non-condensing)
	Temperature +/- 0.5 °C,
Net Weight	11.99 oz (340 g)
Network Frequency	50 Hz
	60 Hz
Number of Units in Package 2	1
Number of Units in Package 3	20
Number of Units in Package 4	32
Output Current	0.3 A universal output
	1 A relay output
	1.5 A universal output inrush)
	3 A relay output inrush)
Output Type	4 xuniversal
	5 xrelay output
Output Voltage	0…10 V DC analog output
	24 V AC relay output
Package 2 Height	1.57 in (4 cm)
Package 2 Length	3.94 in (10 cm)
Package 2 Weight	17.64 oz (500.0 g)
Package 2 width	5.51 in (14 cm)
Package 3 GTIN	43606480770065
Package 3 Height	5.91 in (15 cm)
Package 3 Length	15.75 in (40 cm)
Package 3 Weight	23.05 lb(US) (10.455 kg)
Package 3 width	11.81 in (30 cm)
Package 4 Height	5.91 in (15 cm)
Package 4 Length	15.75 in (40 cm)
Package 4 Weight	35.77 lb(US) (16.225 kg)
Package 4 Width	5.91 in (15 cm)
PIR Cover	No
Product Alert	We are currently experiencing delays on this product. As we work to return it to normal, inventory and lead times may not be accurate. Please use the chat feature to contact CCC for additional details
Product Name	SE8000 Series
Product Or Component Type	Room controller
Range	EcoStruxure Building Expert
Relative Humidity	0…95 %
Scheduling	No
Sensor Type	Humidity: bulk polymer
	Humidity: space RH sensor
	Temperature: 10 kOhm T2 NTC thermistor
Standards	EN/IEC 60730-1
	ETSI EN 300 328
	ETSI EN 301 489-1:v1.9.2
	ETSI EN 301 489-17:v2.2.1, 2012
	FCC part 15 subpart B
	FCC part 15 subpart C
	ICES-003
	UL 60730-2-9
Surface Finish	Matte
Surface Treatment	Untreated
Temperature Ambient Operating Range	32…122 °F (0…50 °C)
Temperature Resolution	0.1 °C
Temperature Setting Range	40…90 °F (4.5…32 °C) heating
	54…100 °F (12…37.5 °C) cooling
Temperature Shipping and Storage Range	-22…122 °F (-30…50 °C)
Unit Type of Package 2	CAR
Unit Type of Package 3	S02
UNSPSC Classification v19	39121521
UNSPSC Classification v23	39121521
Volume of Package 2	560 cm3
Volume of Package 3	18000 cm3
Width	3.39 in (86 mm)

Documents

Brochure	SE8000 Series Room Controllers
Comparison guide	Product Comparison Guide SE8000 and SE7000 Series Room Controllers
Data sheet	SE8300Room Controller Low Voltage Fan Coil Controller and Zone Controller
Installation guide	SE8300 Series Installation Guide
	SmartStruxure Lite Solution SmartStruxure Lite Solution SE7000/SE8000 Room Controllers ZigBee Pro Wireless Integration Guide
Integration guide	SE8000 Series BACnet Integration
	VVT Zoning Application for Variable Volume and Temperature Control
Interface guide	SE8300 User Interface Guide Commercial and Hotel/Lodging HVAC Fan Coil Applications
Quick reference guide	SE8000 Quick Reference Guide

Weight	2 lbs
Dimensions	7 × 5 × 3 in
