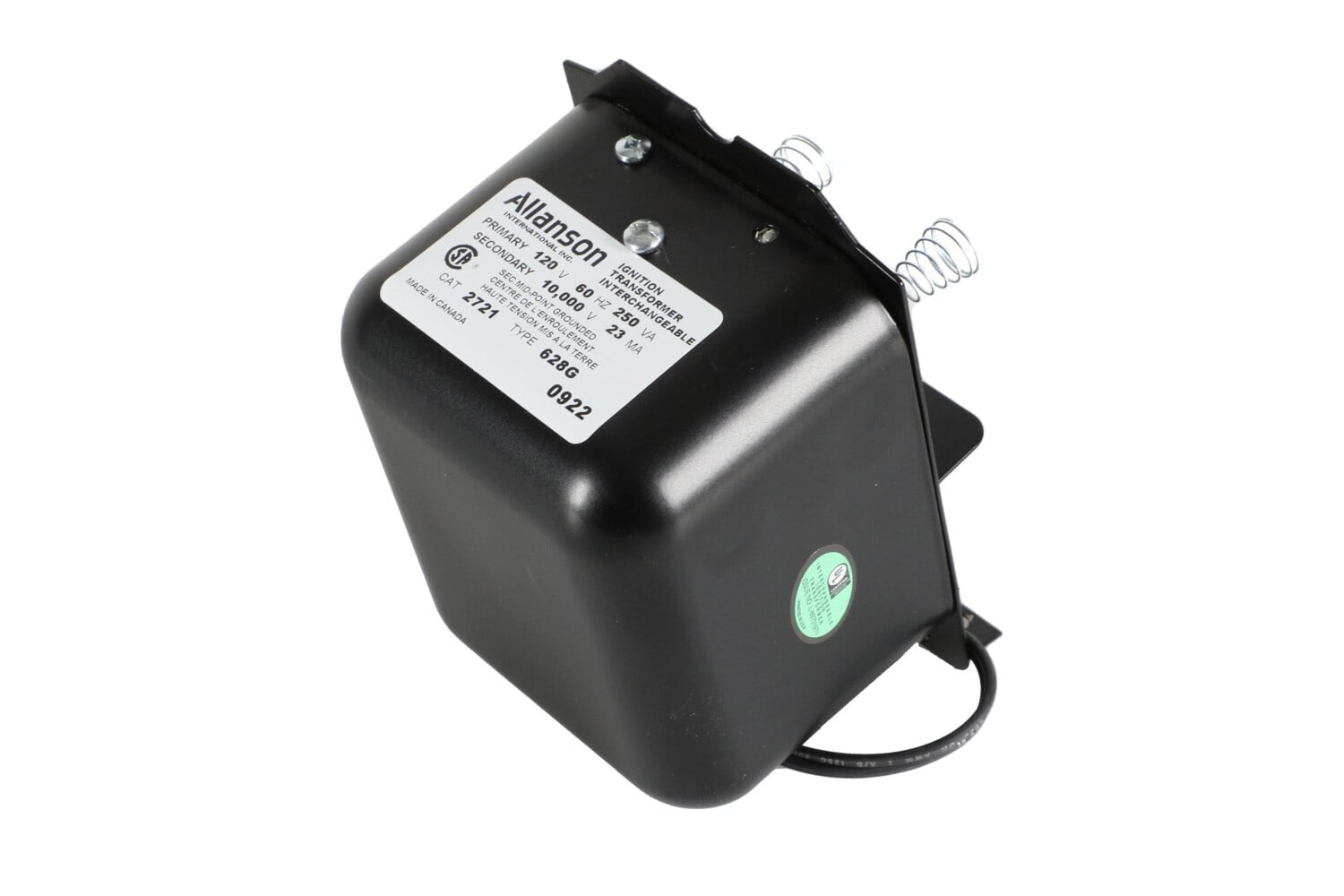

2721-628G Allanson Transformer
$98.90
120Vac Supply Voltage, 10,000Vac Secondary Voltage, 23mA, Mid Point Ground, Ignition Transformer (Beckett A, AF, AFG Burner)
2721-628G FERROMAGNETIC IGNITION TRANSFORMER
Allanson’s Double Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial oil applications.
Features:
- Designed with high temperature wire
- Runs cooler, quieter and safer on all types of burners.
- Designed to burner manufacturer?s specifications
- Meets American and European noise emission standards offering superior EMI and RFI protection.
- Single porcelain designs
- Dependable Power
| Application | OIL |
|---|---|
| Burner Manufacturer | BECKETT |
| Burner Type | A, AF, AFG |
| Input Voltage. | 120V |
| Current | 23mA |
| Grounding | Mid Point Ground |
| Secondary Voltage | 10000V |
| Input Frequency | 60Hz |
| Can Size | Small Can Series |
| Hv Terminal | Large Spring Contact |
| Hinge Location | End Hinge |
| Poles | Double |
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 7 × 6 in |
