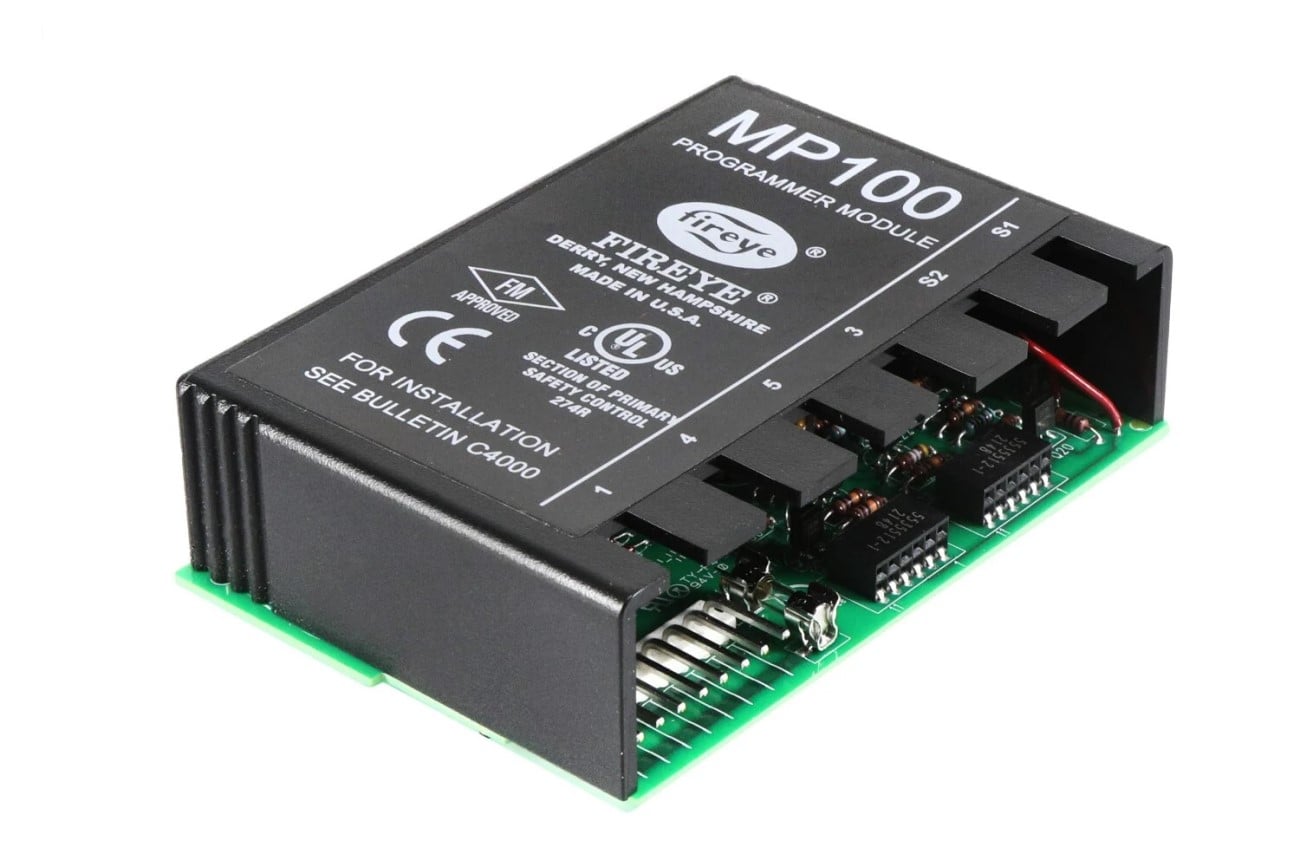

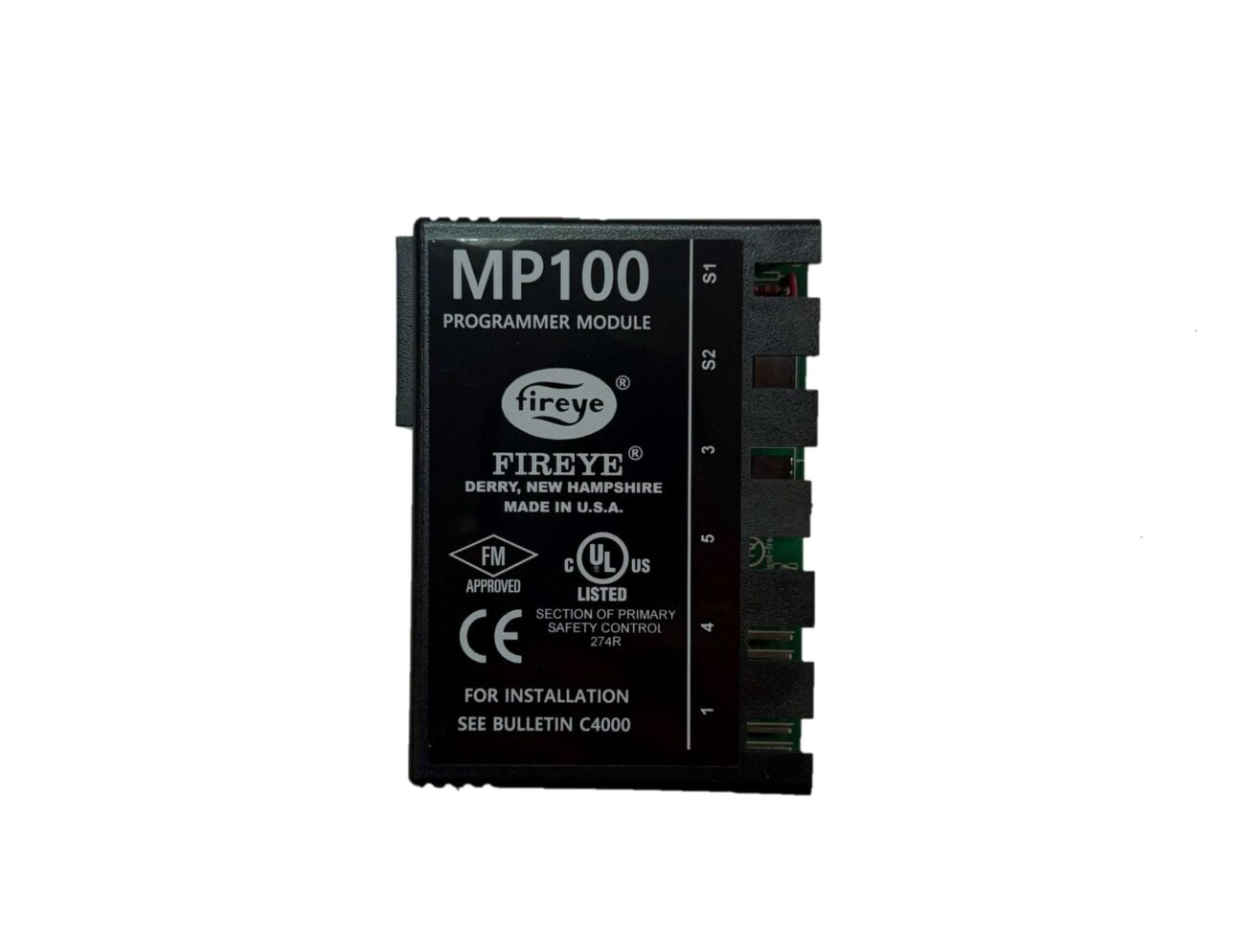

The Fireye MP100 Programmer, Relight function.
The Fireye MP100 Programmer Module is used with the Fireye Modular M-Series II control. The operational characteristics of the control are determined by the selection of the programmer module (e.g. re-ignition, 2-stage capability, pilot cutoff, etc.). The programmer module incorporates a plug-in design for easy installation.
The MP100 Programmer Module is designed as a replacement for the Fireye M1 Series “re-ignition” controls. It provides ignition and Flame Safeguard for heating or process light oil or gas fired burners. The Amplifier Module should be selected based on the type of flame scanner (UV scanner, or flame rod), and the required Flame Failure Response Time (F.F.R.T.).
MP100 Fireye Programmer Tech Sheet (1)
MP100 Fireye Programmer Tech Sheet (2)
Overview
The Fireye MP100 is a plug-in programmer module designed for the Fireye M-Series II flame safeguard system. It controls burner sequencing, manages ignition timing, supervises flame signal transitions, and includes a relight function that allows the burner to attempt reignition before going to lockout. The MP100 establishes the core operational characteristics of the burner system and works with the appropriate amplifier module to deliver safe, reliable combustion control.
Key Features
-
Relight capability that initiates automatic retry of ignition before lockout
-
Controls burner sequencing, including purge, pilot trial, main flame, and shutdown logic
-
Plug-in modular design for fast replacement and easy servicing
-
LED status indicators for burner stages, flame, lockout, and diagnostics
-
Compatible with multiple flame detection types, including UV, flame rod, and photocell (via appropriate amplifier)
-
Defines purge timing, PTFI, MTFI, recycle behavior, and post-purge functions
-
Rugged industrial design for commercial and industrial burner environments
Specifications
| Specification | Details |
|---|---|
| Model Number | MP100 |
| Module Type | Programmer Module |
| System | Fireye M-Series II Flame Safeguard |
| Key Function | Relight operation |
| Burner Sequencing | Included |
| Flame Supervision | Via amplifier module |
| Indicators | LED system status indicators |
| Installation | Plug-in to M-Series II chassis |
| Purge Timing | Determined by module |
| PTFI/MTFI Control | Yes |
Applications
-
Commercial and industrial burners
-
Boilers, furnaces, and process heating systems
-
M-Series II flame safeguard retrofits or replacements
-
Burners requiring automatic relight behavior
-
Systems needing configurable safety and ignition sequencing
Benefits
-
Improves burner uptime through relight attempts before lockout
-
Simplifies maintenance with drop-in module replacement
-
Enhances safety through reliable sequencing and flame supervision
-
Provides clear diagnostic feedback via LED indicators
-
Works with multiple flame detection technologies
-
Designed specifically for Fireye M-Series II control bases
