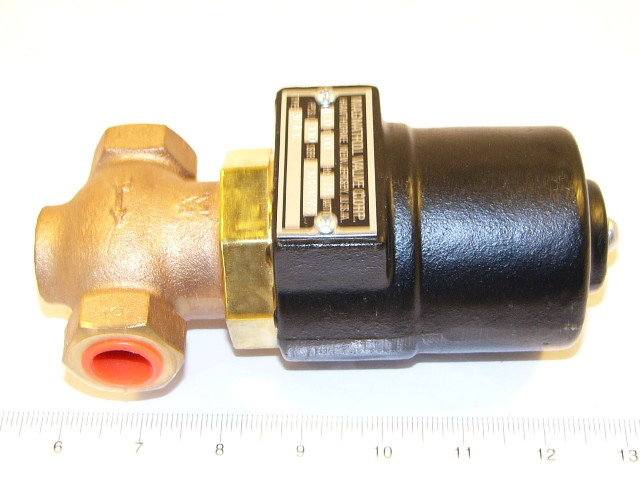

18A42-120V Magnatrol Solenoid Valve
$288.40
1/2″ N/C 0/110# 120V COIL

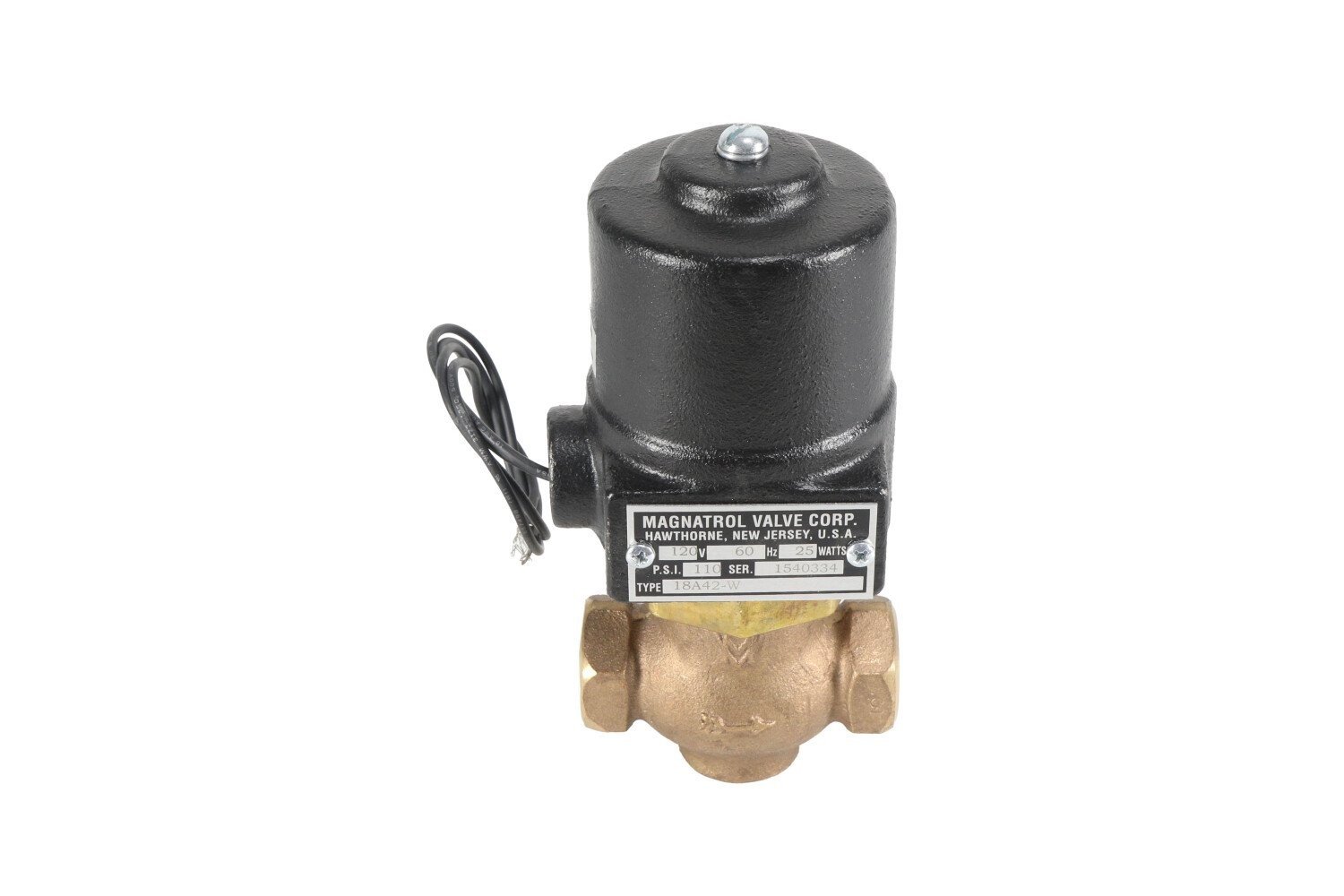

G18A42SC-ACBW Magnatrol Solenoid Valve
The Magnatrol 18A42-120V SOLENOID Valve 1/2″ N/C 0/110# 120V COIL
18A42-120V Magnatrol Solenoid Valve
| Pipe Size | 1/2 Inch |
| Pipe Size Range | 1/2 – 3 Inch |
| Maximum Differential Pressure | 110 psi |
| Max. Static Pressure | 300 psi |
| For Fluid(s) | Water, Fuel Oil, Air, Gas, Solvents, Brine, Vacuum |
| Max. Fluid Temperature | 212 ° F |
| Watts AC | 25 |
| Watts DC | 18 |
| Amps Hold (120-60) | 0.4 |
| Amps Inrush (120-60) | 1.2 |
| Dimension A | 7 Inch |
| Dimension B | 5 7/8 Inch |
| Dimension C | 2 3/4 Inch |
| Dimension D | 3 1/4 Inch |
| Shipping Weight | 8 lbs |
| Coil Housing Options | NEMA 12 (general purpose), Explosion Proof & NEMA 4, NEMA 4X |
Overview
The Magnatrol 18A42 is a two-way, full port, bronze solenoid valve designed for general purpose fluid control. It features a Normally Closed (N/C) operation, meaning the valve opens when the coil is energized (Energize to Open) and closes when power is de-energized. This internal pilot-operated or direct-acting valve is constructed to be packless and can operate from zero differential pressure up to its maximum rating.
Features
- Operation: Normally Closed (N/C), opening upon coil energization.
- Construction: Cast Bronze body with Full Port, NPT ends, and packless design for dependable service.
- Pressure Operation: Requires no differential pressure to open, operating from 0 up to its maximum differential pressure.
- Coil: Designed for continuous duty with the specified 120 VAC coil.
- Design: Straight-thru design.
- Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top.
Specifications
- Part Number: 18A42 (or G18A42SC-ACBW)
- Pipe Size: 1/2″ NPT
- Maximum Differential Pressure (Max Diff PSI): 110 PSI
- Max. Static Pressure: 300 PSI
- Control Voltage: 120 VAC, 60 HZ
- Power Rating: 25 Watts AC / 18 Watts DC
- Amps Hold (120-60): 0.4
- Amps Inrush (120-60): 1.2
- Maximum Fluid Temperature: 212° F
- Body Material: Bronze
- Shipping Weight: Approximately 8 lbs.
Applications
The 18A42 solenoid valve is used to control the flow of general service fluids, including Water, Oil, Air, Gas, Solvents, Brine, and Vacuum. It is suitable for any fluids that are not reactive with the construction materials and are free of sediment. It is a general-purpose valve often employed in HVAC and process control systems.
| Weight | 7 lbs |
|---|---|
| Dimensions | 7 × 4 × 4 in |
