DPT2090-250G Johnson Controls Pressure Transmitter

Overview

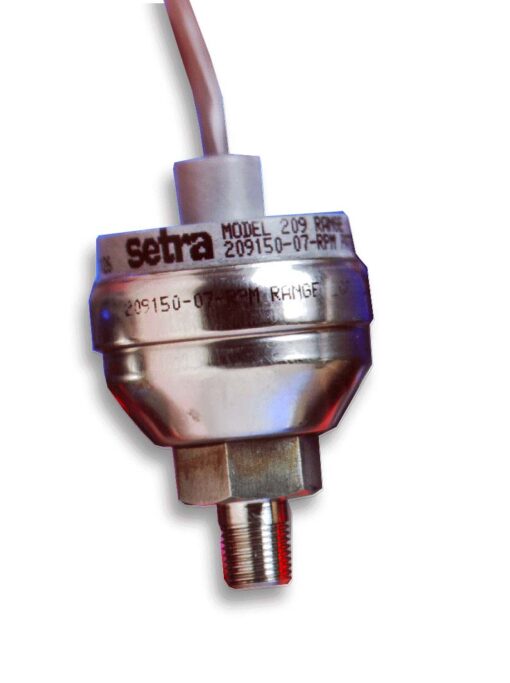

The DPT2090-250G Johnson Controls Pressure Transmitter (utilizing the Setra Systems Model 209 platform) is designed for demanding industrial and building automation applications requiring high performance and reliability at a budget-conscious price point. This gauge pressure transducer features a rugged stainless steel and Valox housing and utilizes a 17-4 PH stainless steel capacitance sensing element coupled with a high-level output IC-based circuit to ensure excellent accuracy and long-term stability without requiring additional amplification.

Features

• Rugged design that survives harsh industrial environments
• Operates over a wide temperature band (-40°F to 185°F)
• Compatible with a wide variety of gases and liquids
• Operates on low-cost, unregulated DC power with reverse excitation protection
• Suitable for high shock and vibration applications
• No seals, O-rings, or brazed joints, eliminating potential leak points and corrosion susceptibility

Specifications

• Pressure Range: 0 to 250 psig (Gauge)
• Input Voltage: 9 to 30 VDC
• Output Signal: 0.5 to 5.5 VDC
• Accuracy: ±0.25% Full Scale
• Process Connection: 1/4-inch 18 NPT Male
• Electrical Connection: 2 ft. multiconductor cable with conduit connection
• Wetted Materials: 17-4 PH Stainless Steel
• Housing Material: Stainless Steel and Valox

Applications

• HVAC/R equipment monitoring
• Building automation systems
• Hydraulic system monitoring
• Compressor control systems
• Industrial engines and OEM equipment
