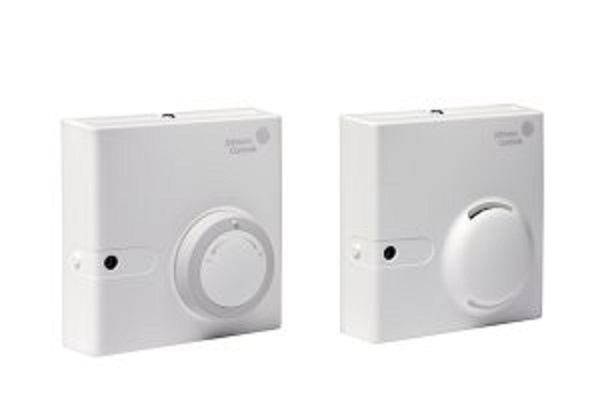

TE-68NP-1N00S Johnson Controls Temperature Sensor

Overview

The Johnson Controls TE-68NP-1N00S is a wall-mounted room temperature sensor designed for commercial HVAC and building automation systems. It features a 1K Ohm nickel sensing element to provide accurate temperature monitoring, along with a warmer/cooler dial for local setpoint adjustments and a manual override button for temporary occupancy scheduling, all within an enclosure without a digital display.

Features

• Precision 1K Ohm nickel RTD sensing element for stable temperature measurement.
• Local warmer/cooler setpoint adjustment dial for occupant comfort control.
• Manual occupancy override pushbutton to temporarily bypass time-of-day scheduling.
• Modular jack connection for simplified field wiring and installation.
• Integrated Zone Bus access port to allow convenient controller servicing and commissioning.
• Internal DIP switches to enable or disable specific unit functions.

Specifications

• Sensor Element: 1K Ohm thin-film nickel RTD
• Setpoint Adjustment: Warmer/Cooler dial (1500 Ohms)
• Connection: 6-pin modular jack
• Display: No display
• Enclosure Dimensions: 80 x 80 x 36 mm
• Operating Temperature Range: 32 to 131 degrees Fahrenheit (0 to 55 degrees Celsius)
• Operating Humidity Range: 10 to 95 percent RH, non-condensing

Applications

• Room, office, and classroom temperature monitoring in commercial buildings.
• Indoor space climate control integrated with building management systems.
• Use with Johnson Controls Application Specific Controllers such as the VMA1200 and VMA1400 series.
