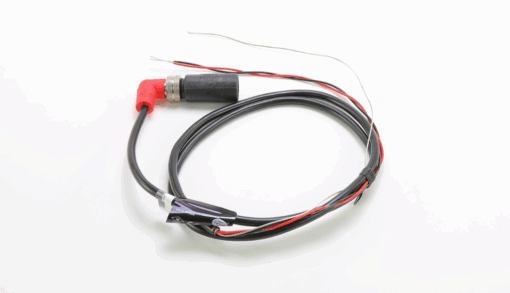

48PT2-9007 Fireye Scanner

Overview

The Fireye 48PT2-9007 is a precision infrared flame scanner designed to detect low flicker frequency infrared signals from gas and oil flames. This lead sulfide scanner features a 90-degree angled head and is engineered for use with Fireye D-Series, Flame-Monitor, FlameWorx, MicroM, and BurnerLogix flame safeguard controls. It includes a 4-foot shielded cable rated for Tray Cable – Exposed Run (TC-ER), complying with UL 1569 standards for durability and safety in industrial environments.

Features

• Infrared flame detection technology for accurate burner monitoring.
• 90-degree head orientation for flexible installation in tight or angled burner configurations.
• Low impedance detector specifically designed to sense low flicker frequency IR signals.
• Replaceable 4-263-1 Firetron sensor cell for easy maintenance.
• Complies with NEMA 4X and UL 1569 crush and impact requirements.
• Shielded 4-foot tray-rated cable (TC-ER) for reliable electrical grounding and protection.

Specifications

• Model Number: 48PT2-9007
• Scanner Type: Infrared (Lead Sulfide)
• Mounting Connection: 1/2 inch NPT mounting collar
• Lead Wire Length: 4 feet (1220 mm)
• Temperature Range: -40 degrees F to 140 degrees F (-40 degrees C to 60 degrees C)
• Voltage Across Cell: 7-15 VDC
• Cell Resistance: 20K – 80K ohms
• Physical Dimensions: 1.25 inch diameter with 1/2-14 tapered pipe thread

Applications

The 48PT2-9007 is widely used in industrial and commercial burner management systems to monitor flames from gaseous fuels and oil. It is essential for applications requiring dependable flame sensing in high-demand combustion environments, such as industrial boilers and heating equipment. Its angled head makes it ideal for installations where a straight-line view of the burner flame is obstructed or where space is limited.
