UV1A6 Fireye Scanner

UV1A6 Fireye UV Flame Scanner – OEM Flame Safeguard UV Detector

UV1A6 Fireye Scanner Datasheet

Overview

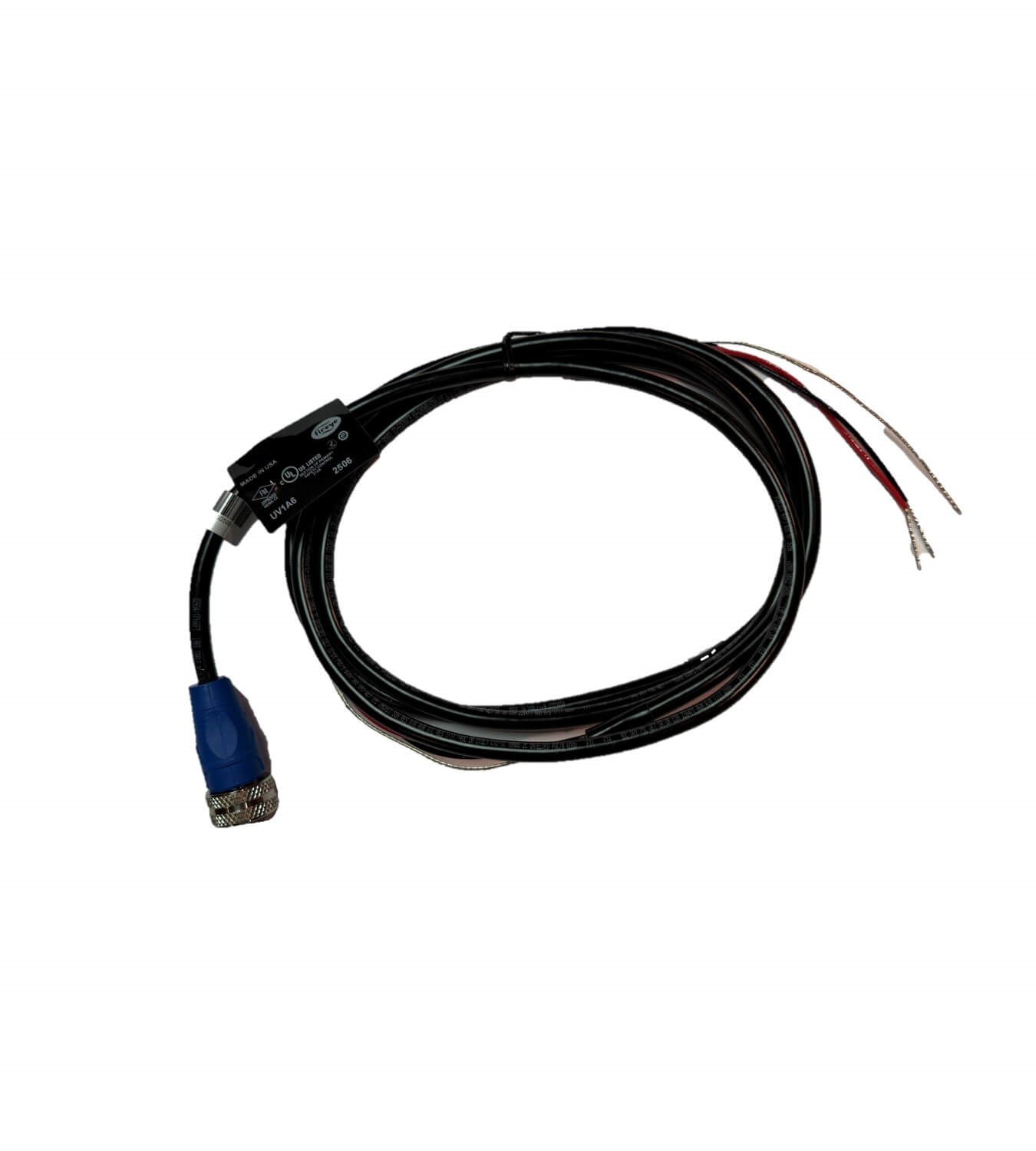

The Fireye UV1A6 is a premium ultraviolet (UV) flame scanner designed for industrial and commercial burner applications. It functions as a non-self-checking miniature detector that identifies UV radiation emitted by flames to ensure safe combustion. This OEM device is built for reliability in challenging environments, featuring a rugged quartz UV tube and a durable 1/2-inch NPT connector with a 6-foot flexible conduit.

Features

• Reliable UV Detection: Specifically designed to detect ultraviolet radiation from fuel gas and No. 2 oil flames.
• Durable Construction: Features a quartz UV tube and a rugged housing suitable for harsh industrial conditions.
• Flexible Wiring: Includes 6 feet (1800 mm) of flexible conduit rated for tray cable – exposed run (TC-ER), meeting UL 1569 standards.
• Easy Installation: Equipped with a standard 1/2-inch NPT mounting collar for secure connection to most burner control systems.
• Wide Compatibility: Works seamlessly with Fireye M-Series, MicroM, Flame-Monitor, BurnerLogix, and Nexus safeguard systems.

Specifications

• Model: UV1A6
• Mounting: 1/2-inch NPT pipe mounting
• Cable Length: 6 feet (1800 mm)
• Temperature Range: -40°F to 200°F (-40°C to 94°C)
• Humidity: 85% RH maximum, non-condensing
• Operating Voltage: 560 VAC (S1-S2) applied
• Tube Type: Quartz, non-replaceable, non-self-checking
• Compliance: UL 1569 (crush and impact requirements); NEMA 7 explosion-proof options available

Applications

The UV1A6 is ideal for flame monitoring in:

• Commercial and industrial boiler systems
• Natural gas and propane burners
• Light oil (#2 oil) combustion processes
• HVAC and process heating systems
• Retrofit applications for systems requiring non-self-checking UV detection
