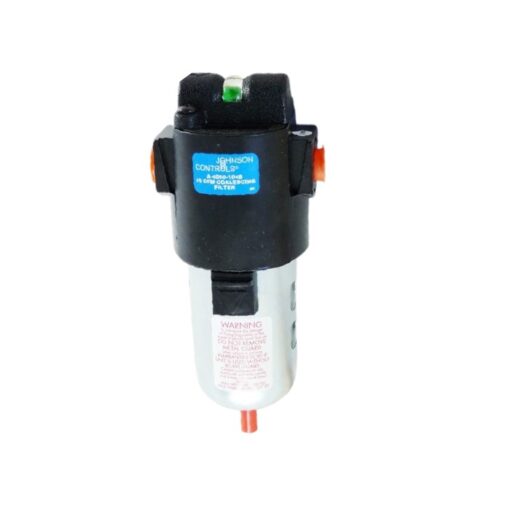

A-4000-1048 Johnson Controls Filter
$515.60
The Johnson Controls A-4000-1048 is a pneumatic coalescing oil removal filter designed to provide clean, oil-free air for pneumatic control systems. It effectively removes oil aerosols and contaminants to protect downstream components and ensure optimal system performance.
Overview
The Johnson Controls A-4000-1048 is a pneumatic coalescing oil removal filter designed to provide clean, oil-free air for pneumatic control systems. It effectively removes oil aerosols and contaminants to protect downstream components and ensure optimal system performance.
Features
- High Efficiency Filtration: Formulated to be 99.999+% efficient for removing particles 0.025 microns in size and larger.
- Automatic Drain: Equipped with an automatic drain mechanism that automatically expels accumulated liquids.
- Enhanced Protection: Features a durable plastic bowl equipped with a metal guard for added safety.
- Status Monitoring: Includes an integrated differential pressure indicator to signal when service is required.
Specifications
- Flow Capacity: 10 SCFM
- Port Size: 3/8 inch NPT
- Maximum Input Pressure: 150 PSIG
- Maximum Temperature: 125°F
Applications
- Pneumatic control systems
- Commercial HVAC air supply stations
- Oil aerosol and particulate removal in control lines
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 4 × 4 in |
