AG13B020 Schneider Electric PopTop Actuator
$60.00

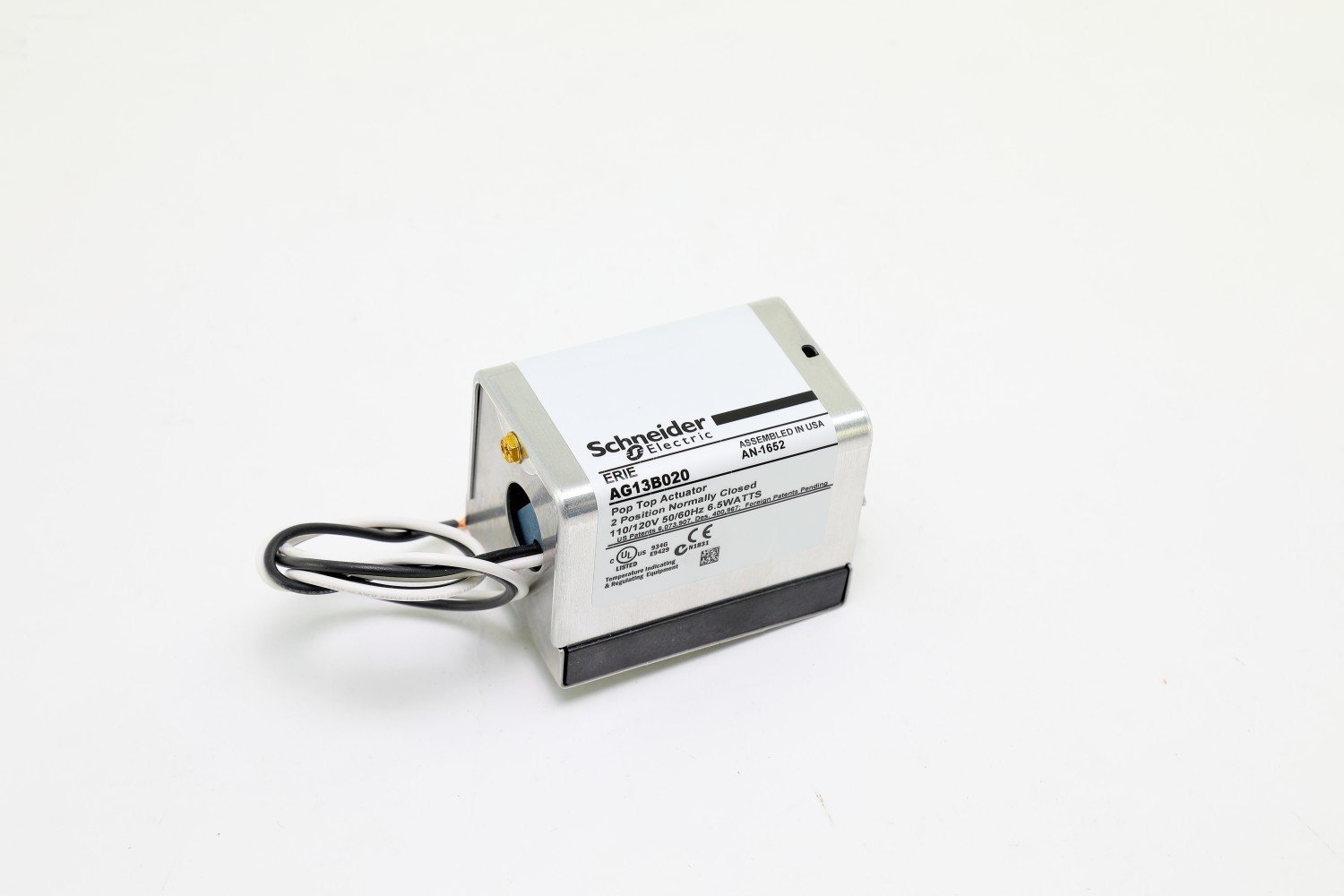

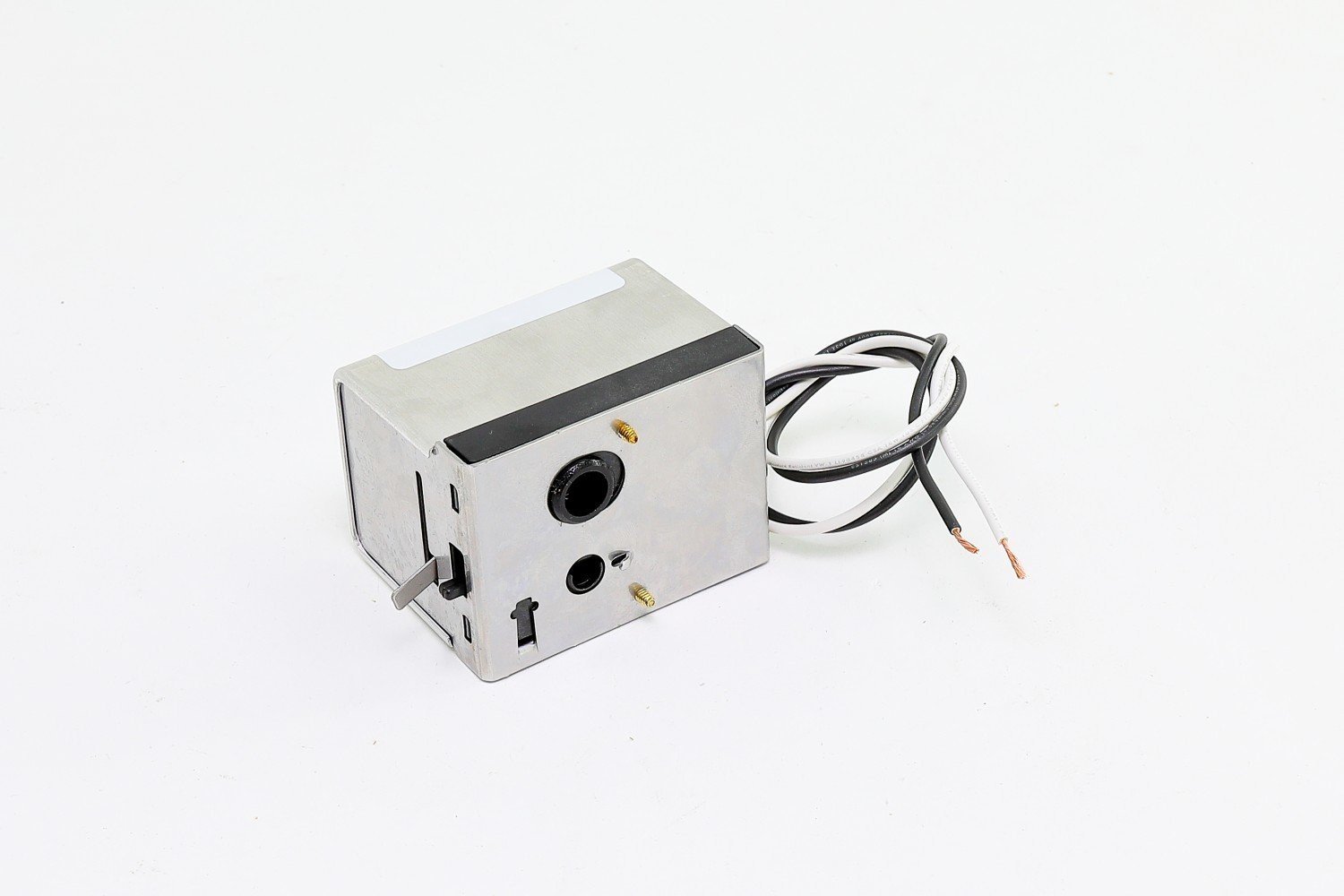

AG13B020 Schneider Electric PopTop Actuator, 120V, GCO, N.C., General Temp, 18″ Leads
Overview of AG13B020 Schneider Electric PopTop Actuator
The AG13B020 is a PopTop style spring-return actuator designed for HVAC zone valves. The “B” version indicates it is a 120 VAC actuator (versus the “A” version which is 24 VAC). It is used to operate 2-position (on/off) valve bodies in hydronic systems. Thanks to its PopTop design, you can remove the actuator without disturbing the piping — great for maintenance and replacement. Invensys AG13B020 Two Position Actuator, 120V, GCO, N.C., General Temp, 18″ Leads
Actuator: (AG13B020):
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 110 VAC, 115 VAC, 120 VAC
- Leads and Connections: 18 in Appliance
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: AG
- Actuator Use: Zone Valves
Product Specifications
| Actuator Type | Electric |
| Actuator Use | Zone Valves |
| Auxiliary Switch | No |
| By Schneider | Yes |
| California Residents | WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Control Signal | 2-Position (On/Off) |
| Humidity | 5 to 95% non-condensing |
| IP Protection Rating | IP10 |
| Lead Length | 18 in |
| Leads and Connections | Appliance |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Motor Type | AC Synchronous |
| NEMA Protection Rating | NEMA 1 |
| Override | Automatic reset |
| Position Indicator | Housing scale |
| Power Consumption Running VA | 7.50 VA |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 110 VAC |
| 115 VAC | |
| 120 VAC | |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | AG |
| Stroke Running time | 24.0 s |
| Temperature Ambient Operating Range | 0 to 93.3 C (32 to 200 F) |
| Temperature Shipping and Storage Range | -40 to 71 C (-40 to 159.8 F) |
Documents
Features & Benefits
-
PopTop modular design allows actuator removal without disturbing plumbing
-
120 VAC input suits standard residential/commercial power systems
-
Spring-return ensures safe default position on power loss
-
Manual override for servicing or testing
-
Compatible with PopTop valve bodies for mixing, diverting, or zone control
Applications
-
HVAC zone valve actuation for residential or commercial heating/cooling
-
Retrofit or replacement of 120 VAC actuator in existing PopTop valves
-
Systems where serviceability and modular maintenance are key
-
Hydronic mixing, diverting, or on/off control functions
Installation & Maintenance Tips
-
Snap actuator directly onto valve body after piping is complete
-
Wire to 120 VAC control signal, respecting polarity if needed
-
Test full stroke and correct valve response after installation
-
Use manual override for service checks without power
-
Inspect periodically for wear, proper return action, and cleanliness
| Weight | 2 lbs |
|---|---|
| Dimensions | 4 × 5 × 3 in |
