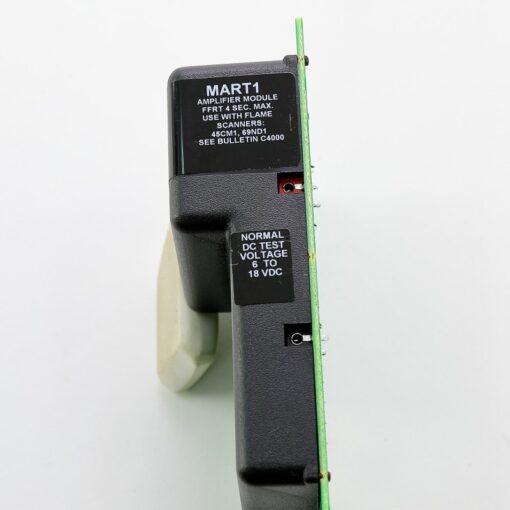

MART1 Fireye Amplifier

Overview

The Fireye MART1 is a precision flame signal amplifier module designed for use with the Fireye Modular M-SERIES II flame safeguard control system. It is engineered to provide reliable flame detection and monitoring for industrial and commercial burner management applications. The MART1 specifically processes flame rectification signals, ensuring high-speed detection and safety shutdown capability to protect equipment and personnel in demanding combustion environments.

Features

• Flame Rectification Technology: Utilizes rectification to provide accurate and reliable flame sensing.
• High-Speed Response: Features a flame failure response time (FFRT) of 2 to 4 seconds for rapid safety shutdown.
• Plug-in Design: Incorporates a modular plug-in format for easy installation and replacement within the M-SERIES II chassis.
• Signal Monitoring: Equipped with built-in test jacks to allow for real-time flame signal strength measurement during operation.
• Broad Compatibility: Designed to work seamlessly with Fireye 69ND flame rods and 45CM1 scanners.
• Robust Construction: Built to withstand the harsh conditions of industrial boiler and furnace environments.

Specifications

• Model Number: MART1
• Control Compatibility: Fireye Modular M-SERIES II
• Flame Failure Response Time (FFRT): 2.0 to 4.0 seconds
• Scanner Compatibility: 69ND, 45CM
• Signal Type: Flame rectification (rod or photocell)
• Test Jack Output: 0-10 VDC range for flame signal intensity
• Supply Voltage: Determined by the M-SERIES II chassis (typically 120V or 230V AC)
• Operating Temperature: -40 degree F to 140 degree F (-40 degree C to 60 degree C)
• Shipping Weight: Approximately 1 lb

Applications

The MART1 amplifier is ideal for industrial and commercial combustion systems where flame rectification is the preferred method of detection. Common applications include:

• Industrial boilers and furnaces
• Power generation and turbine combustion safety
• Oil and gas refining and petrochemical burners
• Commercial HVAC heating systems
• Food processing and thermal manufacturing systems
