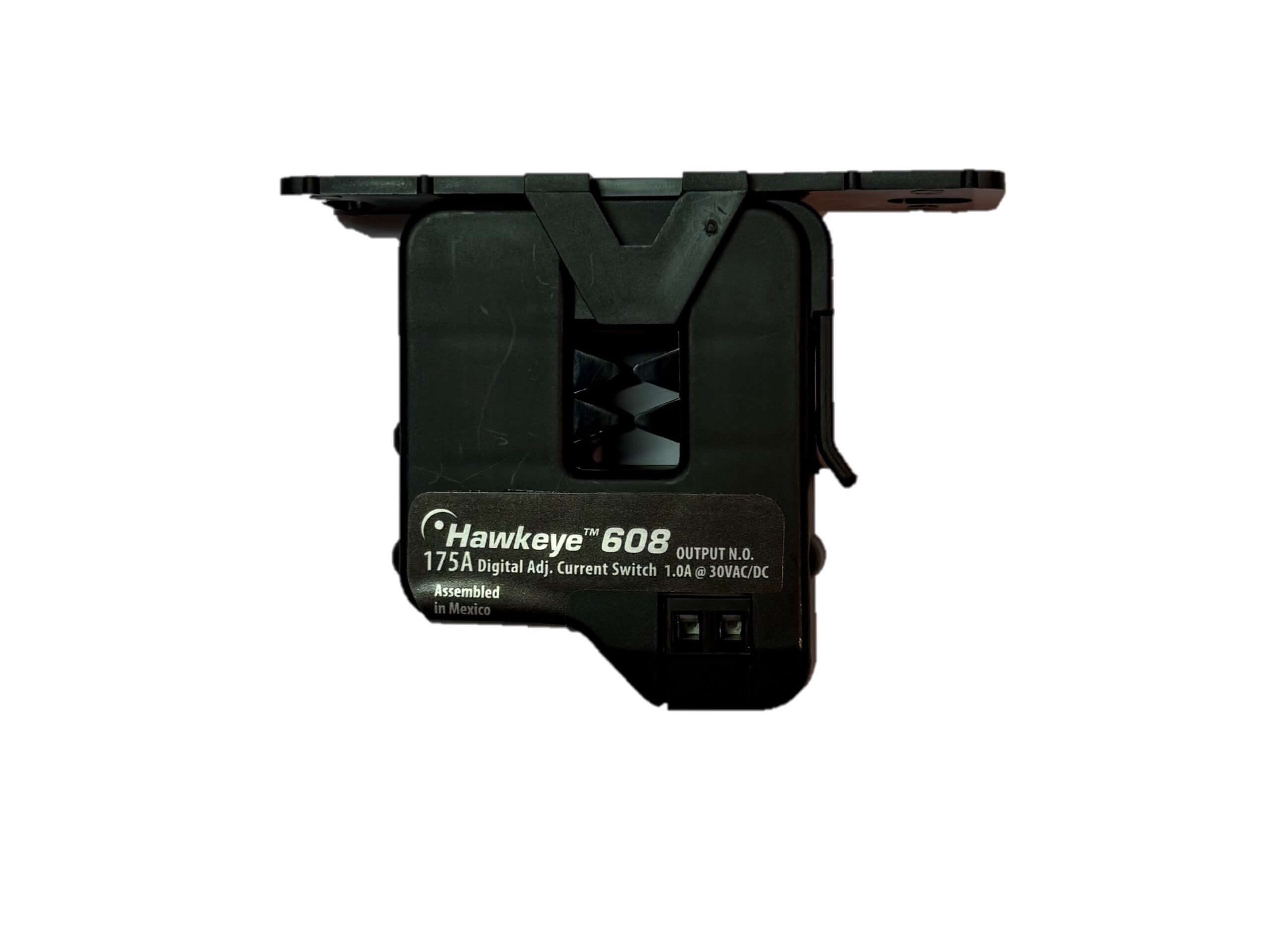

H608 Veris Current Switch Veris
$42.00
The Veris H608 Mini Split Core Current Switch, Adj., Range: 1.25-50AAC Output: N.O., 1.0A
5 in stock
The Veris H608 Veris Current Switch The Veris H608 Mini Split Core Current Switch, Adj., Range: 1.25-50AAC Output: N.O., 1.0A
Overview
The Veris H608 is an adjustable, split-core current switch designed for monitoring HVAC motors, pumps, and fans. With a wide sensing range from 0.5 to 175 amps, it provides a reliable, non-invasive way to detect motor status, verify equipment operation, or monitor system load conditions. The H608 is self-powered, eliminating the need for an external power source, and includes an adjustable trip point with a built-in LED for quick calibration and setup.
Features
-
Adjustable trip point for customized monitoring (0.5–175 A)
-
Split-core design enables easy retrofit around existing conductors
-
Self-powered from the monitored current (no external power needed)
-
LED status indicator for trip verification
-
Normally open solid-state contact rated up to 1 A @ 30 VAC/DC
-
Compact housing fits tight control panels
-
Durable construction rated for industrial environments
-
5-year limited warranty
Specifications
| Application | : | Building Automation Systems |
| Current Measurement Range | : | 0.5 – 175 A |
| Current Sensor type | : | Current Switch, AC |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H608 |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Monitored Wire Size | : | 0.5″ (12 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
| Output Specifications | : | N.O. 1 A @ 30 VAC/DC |
| Outputs | : | Switch output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | HX08 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Setpoint | : | Adjustable |
| Warranty | : | 5 years |
Applications
The Veris H608 is ideal for monitoring and verifying current flow in electrical and mechanical systems. Typical applications include:
-
HVAC fan, pump, and compressor run status monitoring
-
Belt loss and motor failure detection
-
Proof of flow in air handling units
-
Automation feedback in BMS and BAS systems
-
Load verification and preventive maintenance monitoring
Its wide current range and adjustable trip point make it ideal for retrofit or new installations in industrial and commercial environments.
Benefits
-
Simple installation — split-core design eliminates circuit interruption
-
Highly sensitive and adjustable for small or large load monitoring
-
Self-powered operation reduces wiring complexity
-
Bright LED indicator simplifies calibration and diagnostics
-
Maintenance-free solid-state design for long service life
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 7 × 2 in |
