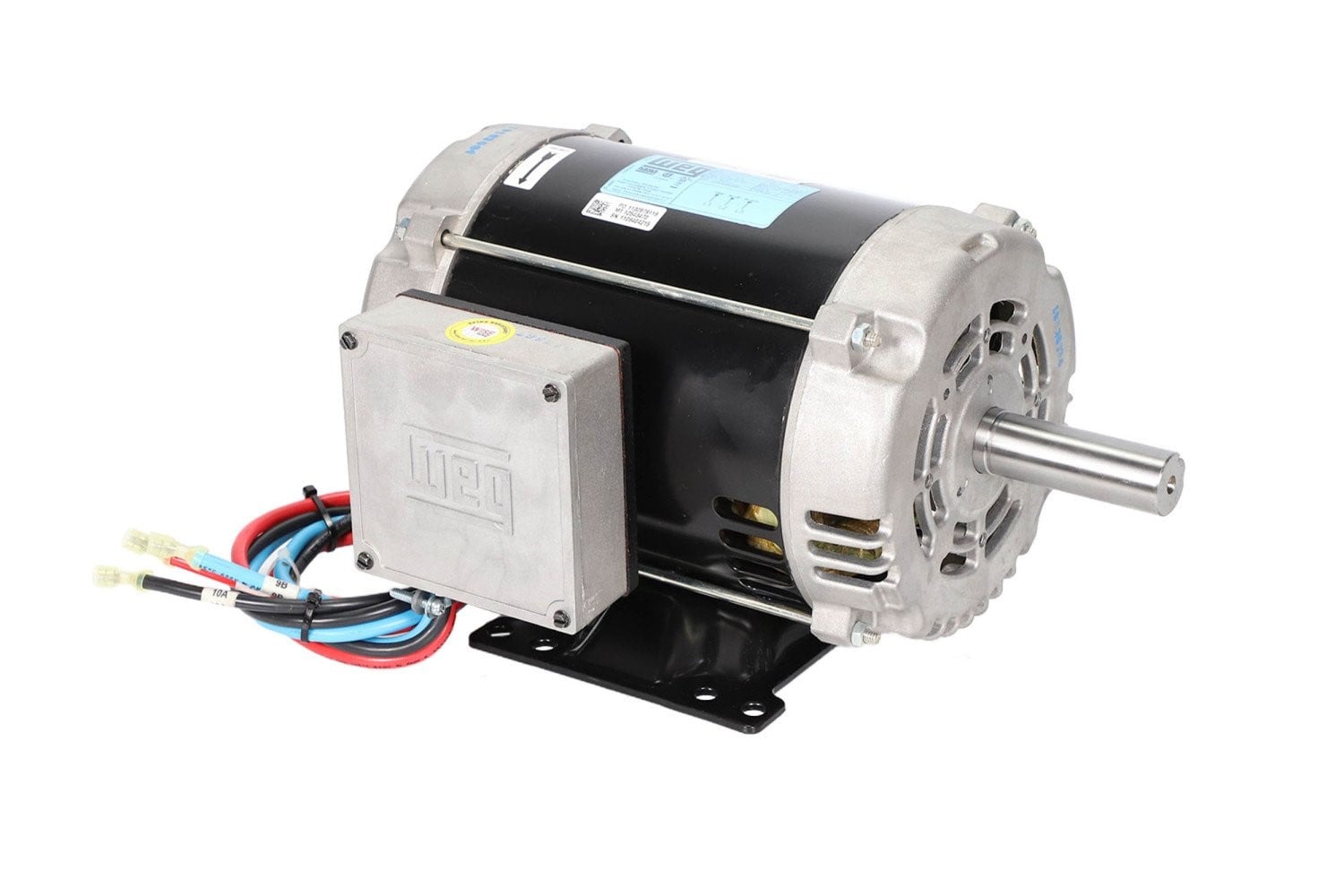

MOT16311 Trane Motor

Overview

The Trane MOT16311 Motor is a robust Original Equipment Manufacturer (OEM) electric motor designed to drive high-intensity airflow, typically used in large Trane Heating, Ventilation, and Air Conditioning (HVAC) equipment. This motor is powerful, rated at 7.5 HP, and is engineered to handle demanding loads, such as large centrifugal fans or blower applications in commercial and industrial settings.

Features

Key features of the MOT16311 Motor include:

• Power: Rated at 7.5 HP.
• Electrical System: Designed for three-phase (3PH) electricity.
• Voltage: Operates on 460V.
• Rotation: Features bi-directional rotation (Clockwise/Counter-Clockwise or CW/CCW).
• Design: Built with a Rigid mount.
• Enclosure Type: Open Drip Proof (ODP) enclosure.
• Frequency: Operates at 50/60 Hz.

Specifications

• OEM Part Number: MOT16311
• Power: 7.5 HP
• Voltage: 460V
• Phase: Three (3PH)
• Speed: 3450 RPM
• Mount: Rigid
• Rotation: CW / CCW
• Enclosure Type: ODP (Open Drip Proof)
• Weight: 68 lbs (30844.26g)
• Shaft Diameter: 1.125″

Applications

The MOT16311 Trane Motor is specifically used in Trane HVAC equipment where high-intensity air flow is required. It is suitable for systems that contain large centrifugal fans or blower loads that need to deal with demanding operational requirements in large commercial or industrial parts of HVAC equipment.
