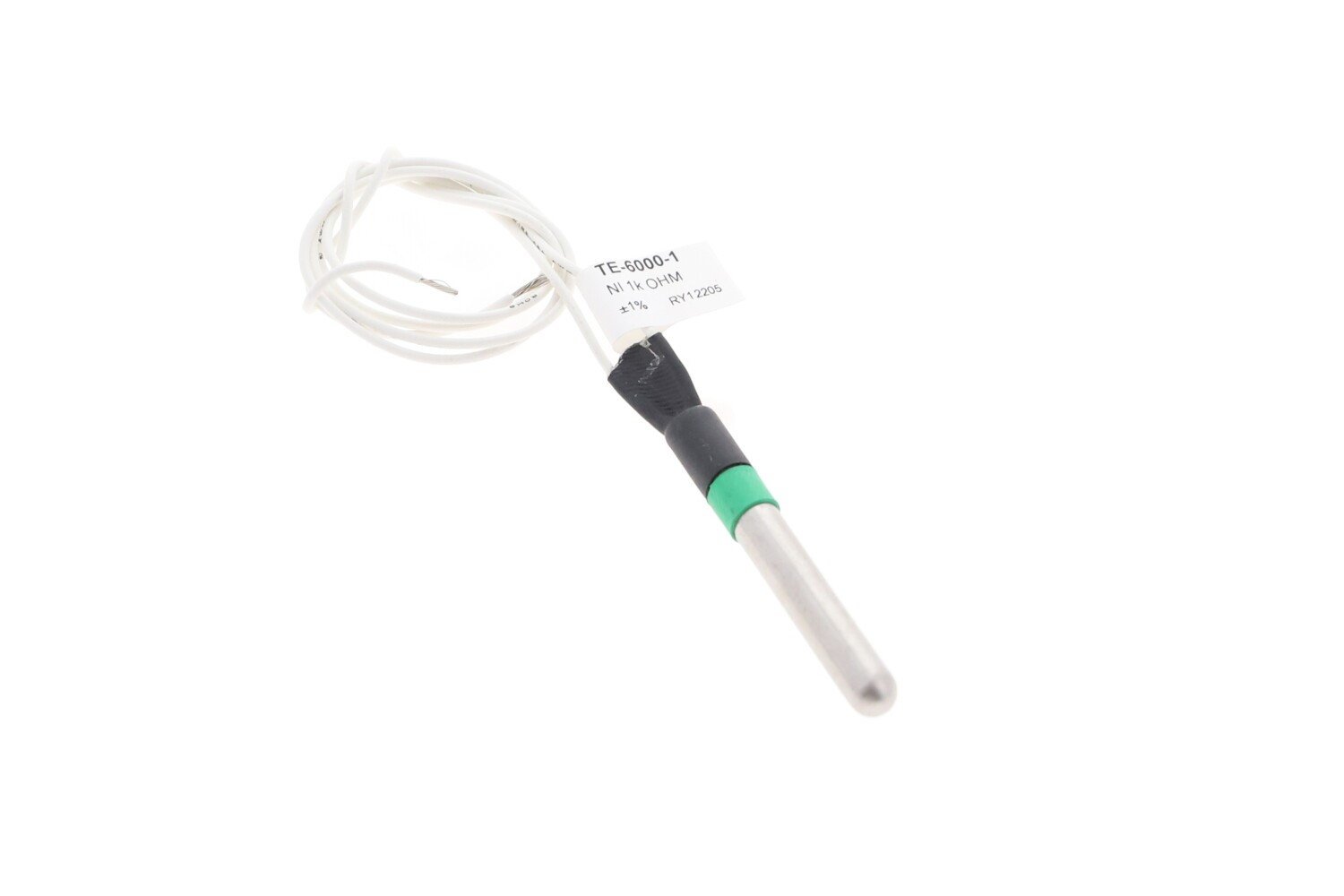

TE-6000-1 Johnson Controls Sensor

Overview

The Johnson Controls TE-6000-1 is a precision temperature sensing element designed to provide accurate and reliable temperature feedback for commercial and industrial HVAC control systems. Built with a 1,000 Ohm nickel resistive element, it ensures consistent data delivery to building automation systems, controllers, and energy management systems where dependable monitoring is critical.

Features

• High-accuracy 1,000 Ohm nickel resistive sensing element
• Tight ±1% resistance tolerance for repeatable performance across its operating range
• Straightforward two-wire lead configuration for simple field installation
• Seamless integration and full compatibility with Johnson Controls controllers and building automation systems
• Color-coded green band on the leads for rapid model identification

Specifications

• Element Type: 1,000 Ohm Nickel at 70°F (21°C)
• Resistance Tolerance: ±1.0% at 70°F (21°C)
• Field Connection: Two 18 AWG wire leads
• Temperature Coefficient: Positive, approximately 5.4 ohms/°C (3 ohms/°F)
• Temperature Range: -50°F to 250°F (-46°C to 121°C)
• Sensor Construction: Copper probe
• Shipping Weight: 0.2 lb (0.09 kg)

Applications

The TE-6000-1 is engineered for a variety of temperature sensing applications within commercial HVAC environments. It is ideal for strap-on applications on pipes and can also be utilized in duct, room, immersion well, and dew point configurations when paired with appropriate TE-6001 series hardware assemblies.
