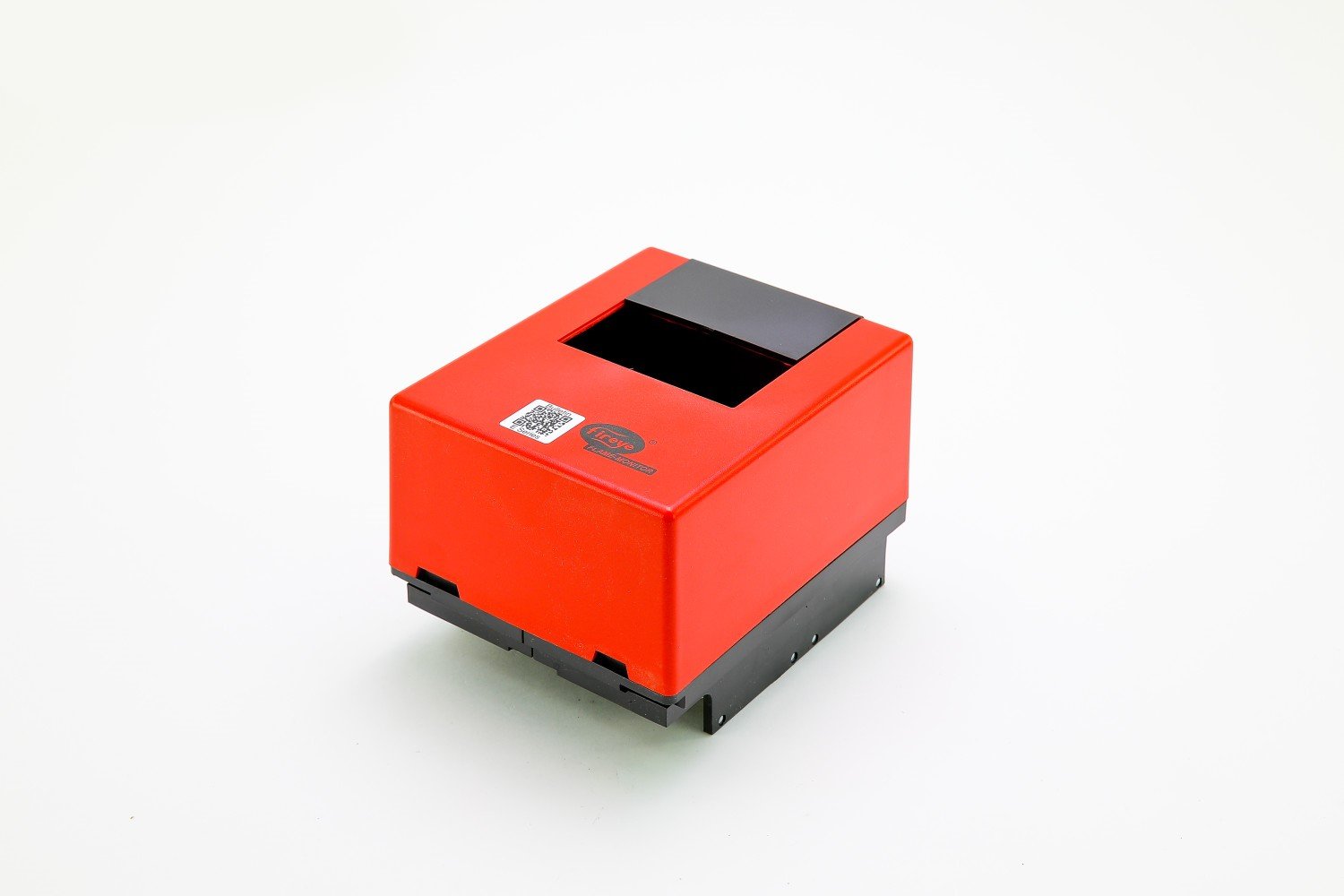

E110 Fireye Flame Monitor (Chassis)

Overview

The Fireye E110 Flame-Monitor is a microprocessor-based burner management control system designed to provide proper burner sequencing, ignition, and flame monitoring for automatically ignited oil, gas, and combination fuel burners. As part of the Flame-Monitor series, the E110 chassis (consisting of the EB700 chassis, dust cover, and mounting screw) manages the burner/blower motor, ignition, and fuel valves in conjunction with limit and operating controls. It is a highly modular system that utilizes interchangeable programmer and flame amplifier modules to offer complete versatility in selecting control functions, timing, and flame scanning means.

Features

• Modular design with interchangeable programmer and flame amplifier modules for tailored control functions
• Non-volatile memory retains system history, lockout information, and current position during power interruptions
• Real-time status and constant flame signal read-out available via an optional ED510 display module
• Integrated Modbus communications via an RS485 multi-drop link for remote data monitoring
• Selectable purge time via dipswitches located on the EP programmer module
• Run/Check switch allows operators to stop the program sequence at Purge, PTFI, or Auto positions for testing
• Directly interchangeable with Fireye D-Series and C-Series controls using the same 18-terminal wiring base
• Tracks and displays main fuel operational hours and complete burner cycles

Specifications

• Model Number: E110 (Chassis includes EB700, 48-1836, and EC600)
• Supply Voltage: 120 VAC (+10%, -15%) at 50/60 Hz
• Power Consumption: 25 VA
• Temperature Rating: -40 degree F to 140 degree F (-40 degree C to 60 degree C)
• Humidity: 85% R.H. non-condensing
• Maximum Simultaneous Connected Load: 2000 VA
• Shipping Weight: Approximately 5 lbs (2.3 kg)
• Agency Approvals: UL, FM, and CSA Approved

Applications

The Fireye E110 is used in commercial and industrial heating applications to manage automatically ignited burners. It is compatible with a variety of flame detection technologies, including ultraviolet (UV), auto-check infrared, flame rod, and self-check UV scanners. It is ideally suited for boiler and furnace systems where safe ignition sequencing and continuous flame monitoring are critical for operational safety and regulatory compliance.
