S7820A1007 Honeywell Remote Reset Module

S7820A1007 Datasheet

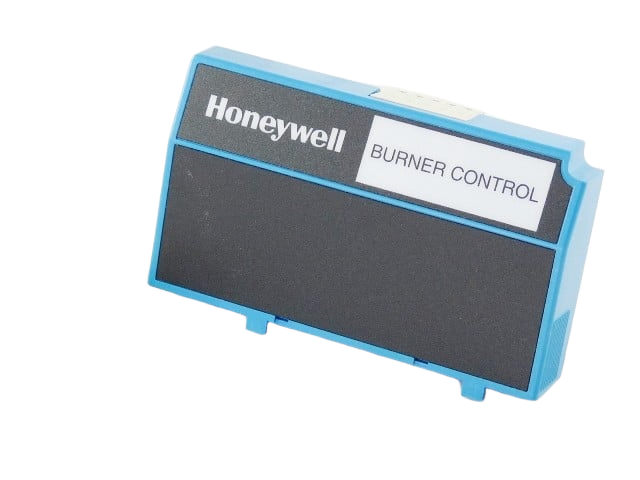

The Honeywell S7820A1007 RESet Module STANDARD. INCLUDES 5 PIN CONNECTOR (P/N 203541).

Overview

The Honeywell S7820A1007 is a remote reset control module designed for burner management systems. It allows the operator to issue a remote reset of the burner safety control from a vantage point outside of the primary burner panel. This enhances safety and convenience in boiler rooms where direct access to the burner controller may be restricted.

Specifications

Features & Benefits

• Enables remote reset without needing to access the burner control directly

• Improves safety and efficiency in boiler room operations

• Simple 5-wire connection to existing control chassis

• Compact design fits within control panel layouts

• Useful for systems where burners are isolated or in restricted areas

Applications

• Boiler and burner systems where operator interface is remote

• Control panels requiring a reset pushbutton away from the burner stack

• Installations where access to the controller is obstructed or confined

• Safety systems demanding a local reset point

Installation & Usage Tips

• Install the reset module at a convenient, safe location accessible by operators

• Wire the module correctly according to the 5-wire interface pinout

• Test the remote reset function during commissioning to ensure proper operation

• Label the reset point clearly to prevent misuse or confusion

• Periodically verify wiring insulation and mechanical integrity
