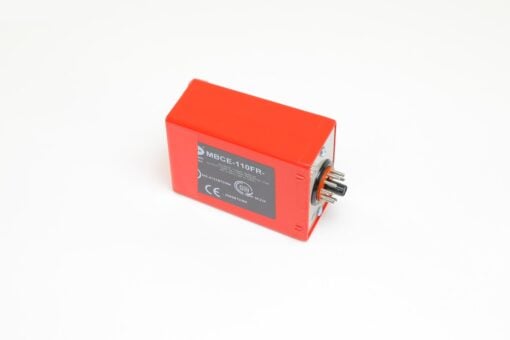

MBCE-110FR-1 Fireye Flame Sensor Module

Overview

The Fireye MBCE-110FR-1 is a single-channel flame sensor module designed for industrial and commercial burner management systems. It provides visual indication and electrical outputs to signal the presence of a flame in a combustion chamber using the ionization principle. This 120VAC module is engineered to work with Fireye flame rods, functioning as either a standalone detection unit or as a component within a larger flame safeguard system to ensure safe ignition and continuous monitoring.

Features

• Flame rod compatibility for sensing via the ionization principle.
• Flame ON/OFF LED indicator for immediate visual verification.
• 4-20mA analog output for direct reading of flame signal strength.
• Self-check circuitry to ensure internal component integrity.
• CE approved 11-pin relay base for secure connectivity.
• Versatile mounting options for panel surfaces or DIN-rails.
• Compact and durable construction suitable for demanding industrial environments.

Specifications

• Model Number: MBCE-110FR-1
• Supply Voltage: 110 VAC (+10%, -15%), 50/60 Hz
• Flame Failure Response Time (FFRT): 1 second
• Flame Relay Output: SPDT 2 Amp Resistive @ 110VAC / 1 Amp @ 30VDC
• Operating Temperature: -40°F to 150°F (-40°C to 65°C)
• Humidity: 85% RH maximum (non-condensing)
• IP Rating: IP-20
• Agency Approvals: CE, EN298, EN230
• Shipping Weight: Approximately 1 lb (0.5 kg)

Applications

The MBCE-110FR-1 is primarily used in industrial and commercial combustion systems, including boilers, furnaces, ovens, and kilns. It is designed to provide reliable flame verification for burner management and safety systems, preventing hazardous conditions by ensuring fuel valves are only active when a flame is detected. It is commonly integrated with a 60-2886 standalone wiring base.
