36S17 Magnatrol SOLENOID Valve

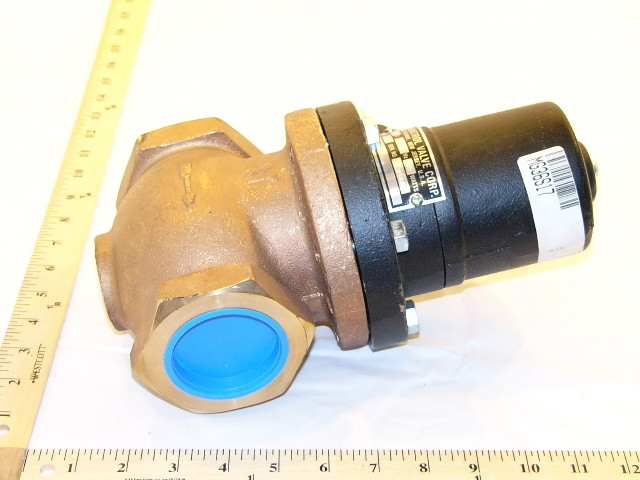

The Magnatrol 36S17 SOLENOID Valve 2″ N/C 0-25# 2-WAY STEAM VLV 120V

Overview

The Magnatrol 36S17 is a two-way, full port, Bronze Solenoid Valve, designated as a Type “S” valve. It is a Normally Closed (N/C) valve, meaning it opens when the coil is energized and closes when power is de-energized. This valve is designed to operate from zero to its maximum differential pressure, requiring no differential pressure to open. It is intended for use with steam and is an older model that has been superseded by the current part number G36S17SC-ACTS.

Features

• Operation: Normally Closed (N/C), opening upon coil energization.
• Mechanism: Internal pilot-operated or direct-acting.
• Construction: Cast Bronze body with Globe Pattern and NPT ends, featuring packless construction.
• Full Port: Provides a straight-through design for flow.
• Coil: Encapsulated Class H coil is standard, designed for continuous duty with both AC and DC voltages.
• Pressure Operation: No differential pressure is required for the valve to open.
• Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top.
• Maximum Fluid Temperature: 400° F.
• Maximum Static Pressure: 200 PSI.

Specifications

• Part Number: 36S17
• Replacement Part Number: G36S17SC-ACTS
• Pipe Size: 2″ NPT
• Maximum Differential Pressure (Max Diff PSI): 25 PSI
• Control Voltage (Standard AC): 120 VAC, 60 HZ
• Power Rating (120-60): 45 Watts AC (3.5 Amp inrush, 0.8 Amp hold) / 23 Watts DC
• Maximum Fluid Temperature: 400° F
• Body Material: Bronze
• Weight: Approximately 27 lbs

Applications

The 36S17 solenoid valve is specifically used to control the flow of steam. The steam must be clean and free of sediment for proper operation. It is suitable for general-purpose steam service in industrial and process control systems.
