61-3060 Fireye Base

Overview

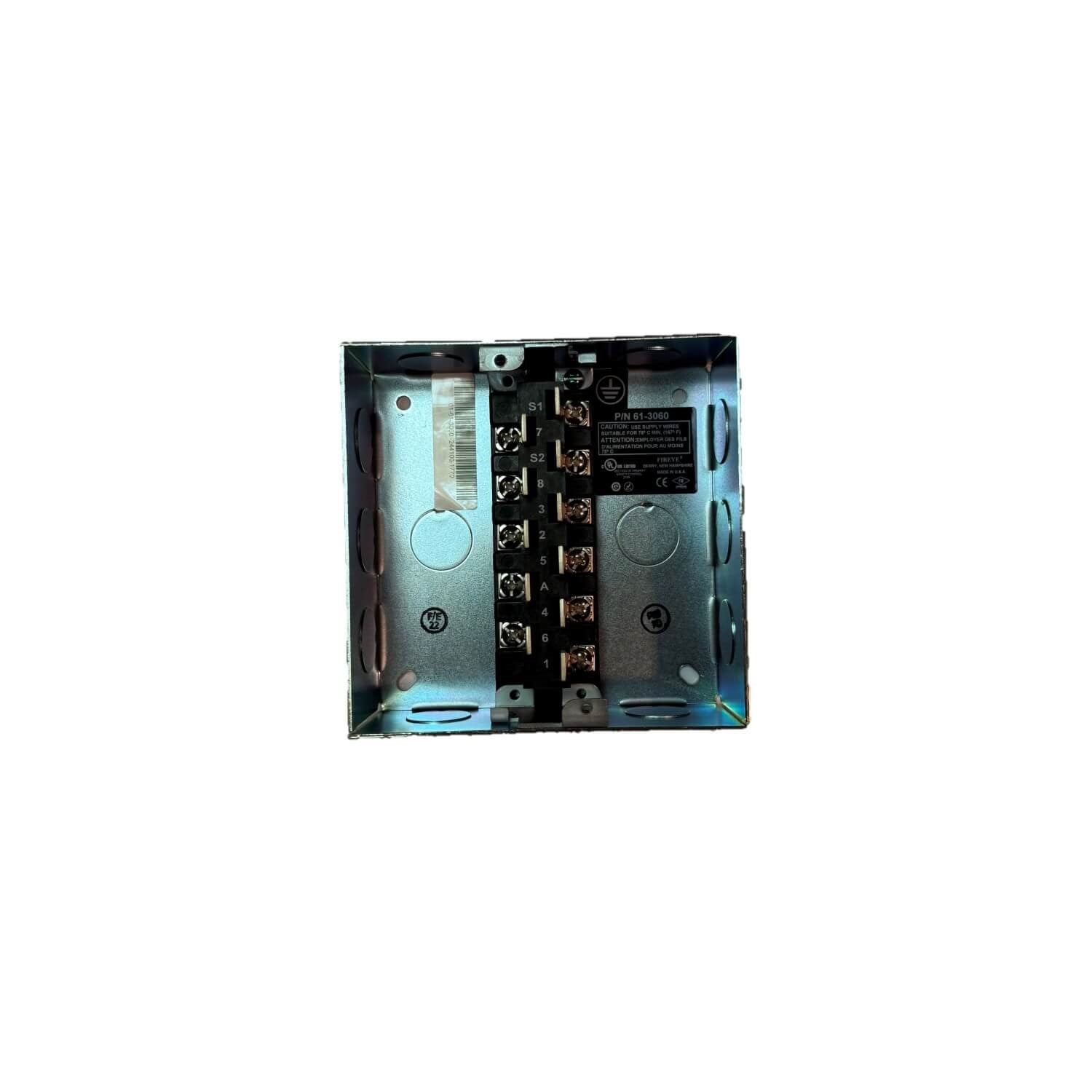

The Fireye 61-3060 is a heavy-duty, surface-mounted closed wiring base designed specifically for M-Series II and MicroM flame safeguard control systems. It serves as a secure and organized terminal platform for electrical connections, protecting wiring integrity from dust and environmental contaminants in industrial and commercial combustion environments. This modular base is engineered for durability and ease of installation, ensuring reliable signal transmission between flame scanners and burner management controllers.

Features

• Closed design provides enhanced protection for terminal connections against dust, debris, and accidental contact.
• Surface-mount configuration allows for versatile installation directly on burners or control panels.
• Rugged construction designed to withstand the vibration and temperature fluctuations common in industrial boiler rooms.
• Modular compatibility ensures easy integration with all Fireye MicroM and M-Series II flame safeguard modules.
• Simplifies maintenance and troubleshooting by providing a stable and organized wiring interface.

Specifications

• Model Number: 61-3060
• Type: Closed Wiring Base
• Mounting: Surface Mount
• Compatibility: Fireye M-Series II, MicroM, UVM, and TFM controls
• Operating Temperature: -40 degrees F to 140 degrees F (-40 degrees C to 60 degrees C)
• Material: High-impact, temperature-resistant industrial composite
• Shipping Weight: Approximately 1.5 to 1.8 lbs
• Dimensions: Approximately 6 x 6 x 6 inches (boxed)

Applications

The 61-3060 wiring base is used in commercial and industrial HVAC systems, including industrial burners, boilers, and air handling units. It is the standard interface for mounting Fireye flame safeguard controls that monitor gaseous and oil-fired flames. It is ideal for installations requiring a robust, enclosed electrical platform to ensure continuous flame monitoring and combustion safety in demanding environments.
