60-2692 Fireye Mounting Flange

Overview

The Fireye 60-2692 is a high-quality, 1-inch NPT threaded mounting flange specifically engineered for the secure and precise installation of industrial flame scanners. It serves as a rigid mounting interface, ensuring that sensing devices remain stable and accurately aligned with the burner flame, which is critical for consistent and reliable combustion monitoring. This heavy-duty component is built to withstand the demanding conditions of industrial burner management and flame safeguard systems.

Features

• Provides a stable and secure mounting base to prevent vibration-related sensor misalignment.
• Includes a 1-inch NPT threaded connection for seamless integration into standard burner system piping and sight pipes.

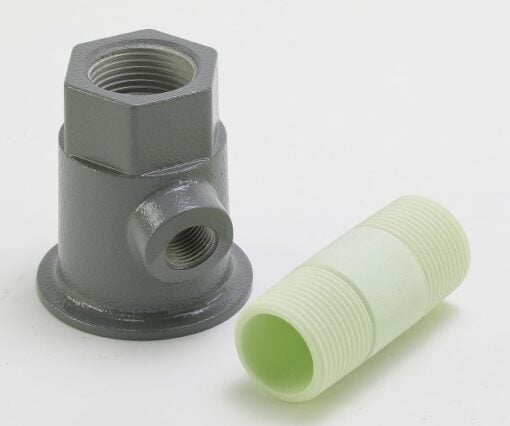

• Comes as a kit that includes the Fireye 35-127-1 heat insulating nipple to prevent heat transfer and gas leakage from the observation port.
• Features a 3/8-inch NPT female cooling air connection to help maintain optimal scanner temperature.
• Rugged construction designed for long-term durability in high-temperature industrial combustion environments.

Specifications

• Model Number: 60-2692
• Product Type: Mounting Flange Kit
• Connection Size: 1 inch
• Thread Type: NPT (National Pipe Thread)
• Cooling Air Connection: 3/8 inch NPT female
• Included Hardware: 35-127-1 Heat Insulating Nipple
• Weight: Approximately 0.77 kg (1.7 lbs)
• Compatibility: Fireye Phoenix Series II and InSight scanners

Applications

The 60-2692 mounting flange is primarily used with Fireye Phoenix Series II and InSight (including InSight I, Series II, and Series IV) integrated flame scanners. It is an essential accessory for commercial and industrial burner installations, such as large multi-burner boilers, furnaces, and ovens. It is ideally suited for any application where maintaining precise line-of-sight alignment for UV or IR flame sensors is necessary for safety and operational reliability.
