MP560 Fireye Programmer

Overview

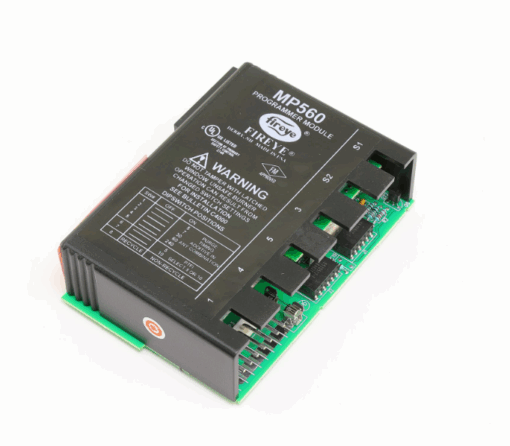

The Fireye MP560 is a high-performance programmer module designed for use with Fireye Modular M-Series II flame safeguard control systems. This microprocessor-based plug-in module determines the operational characteristics of the burner control system, including sequencing, timing, and safety functions. It is engineered to provide automatic ignition and continuous flame monitoring for commercial and industrial burners, ensuring safe and efficient combustion management.

Features

• Selectable Operation: Features a series of dipswitches to choose between recycle and non-recycle modes based on specific application requirements.
• Flexible Timing: Integrated dipswitches allow for the selection of purge timing and Pilot Trial for Ignition (PTFI) timing.
• Pilot Stabilization: Includes a dedicated 8-second pilot stabilization period to ensure a steady flame before transitioning to the main fuel source.
• Check-Run Switch: Equipped with a built-in check-run switch to assist technicians in testing the size and stabilization of the pilot flame.
• Diagnostic Feedback: Features LED indicator lights on the front panel to provide visual status updates on the control’s operating sequence.
• Plug-in Design: Compact, modular construction facilitates easy installation into the M-Series II chassis and simplifies field replacement.

Specifications

• Model: MP560
• Input Voltage: 120 VAC (+10%, -15%) at 50/60 Hz
• Main Flame Trial for Ignition (MTFI): 10 seconds
• Pilot Stabilization Period: 8 seconds
• Operating Temperature: -40 degrees F to 140 degrees F (-40 degrees C to 60 degrees C)
• Shipping Weight: Approximately 0.4 lbs
• Dimensions: 5.75 x 4 x 1.75 inches
• Flame Failure Response Time (FFRT): Determined by the selection of the associated amplifier module

Applications

The MP560 is primarily utilized in commercial and industrial combustion systems, including high-efficiency HVAC boilers, power generation burners, and petrochemical processing systems. It is specifically designed for use with two-stage burners or applications requiring precise pilot stabilization. The module is compatible with various Fireye flame scanners, such as UV1A, UV2, and 45UV3, when paired with the appropriate amplifier and wiring base within the M-Series II ecosystem.
