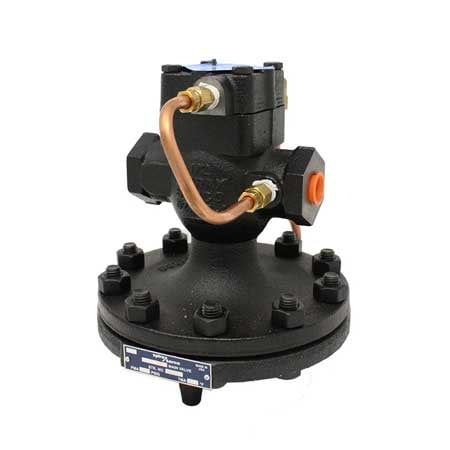

55225 Spirax Sarco Regulator
$1,948.60
1-1/4 in. 25 NPT Regulator CAST IRON
Overview of 55225 Spirax Sarco Regulator
The Spirax Sarco 55225 is part of Spirax’s 25P pilot-operated pressure reducing main valve family. This 1-¼” NPT, cast iron regulator is designed for steam pressure reduction, offering precise control, dead-end shutoff, and reliable performance in commercial and industrial steam systems.
It uses downstream sensing feedback through a pilot to adjust the main valve opening to maintain the desired set pressure. The 55225 model can handle steam pressures up to 250 psi and temperatures up to 450 °F.
Features
-
Pilot-operated main valve for accurate steam pressure regulation
-
Self-acting diaphragm mechanism with external feedback sensing
-
Dead-end shutoff capability meeting ANSI/FCI 70-2 Class IV standards
-
Cast iron body construction with stainless steel trim
-
Uses color-coded pilot springs for ease of setpoint selection
-
Interchangeable spring modules for various pressure ranges
-
Horizontal installation recommended for best performance
-
Wash-through design to reduce debris retention
-
Designed for steam service with proven durability
Specifications
| Specification | Details |
|---|---|
| Model / Series | 55225 (25P Series) |
| Nominal Size | 1-¼” NPT |
| Body Material | Cast Iron |
| Maximum Pressure (Steam) | 250 psi |
| Maximum Temperature | 450 °F |
| End Connections | FNPT (female NPT) |
| Shutoff Rating | ANSI/FCI 70-2 Class IV dead-end shutoff |
| Control Type | Pilot-operated with feedback sensing |
| Sensing Line | External downstream sensing |
| Internal Trim | Stainless steel (valve seat and disc) |
| Mounting Orientation | Horizontal recommended |
| Spring Range Options | Multiple color-coded ranges (e.g. 3-30 psi, 20-100 psi, 80-250 psi) |
| Service Media | Saturated steam |
| Typical Applications | Main steam pressure reduction, protecting downstream equipment, boiler control systems |
Applications
The 55225 Spirax Sarco regulator is suited for a wide range of steam pressure control applications, including:
-
Main steam line pressure reduction
-
Feedwater pump steam control
-
Steam to conform to process equipment inlet pressure requirements
-
Steam regulation for heat exchangers or control valves
-
Industrial boiler downstream protection
Its pilot-operated design enables stable regulation even under varying load conditions.
Benefits
-
Precise pressure regulation with stable control dynamics
-
Strong shutoff performance to prevent overpressure
-
Modular pilot spring system for easy reconfiguration
-
Built for durability in steam service conditions
-
Support for a broad operating range (pressure and temperature)
-
Maintenance and service ease with standard internal parts
| Weight | 42 lbs |
|---|---|
| Dimensions | 15 × 14 × 12 in |
