MC120R Fireye Chassis

Fireye MC120R Chassis – 120 VAC M Series II with Remote Reset

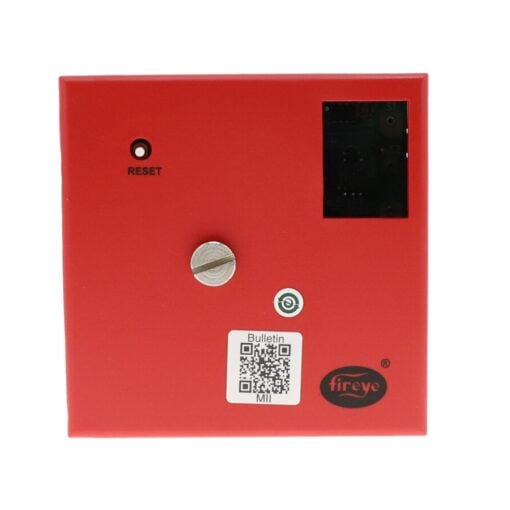

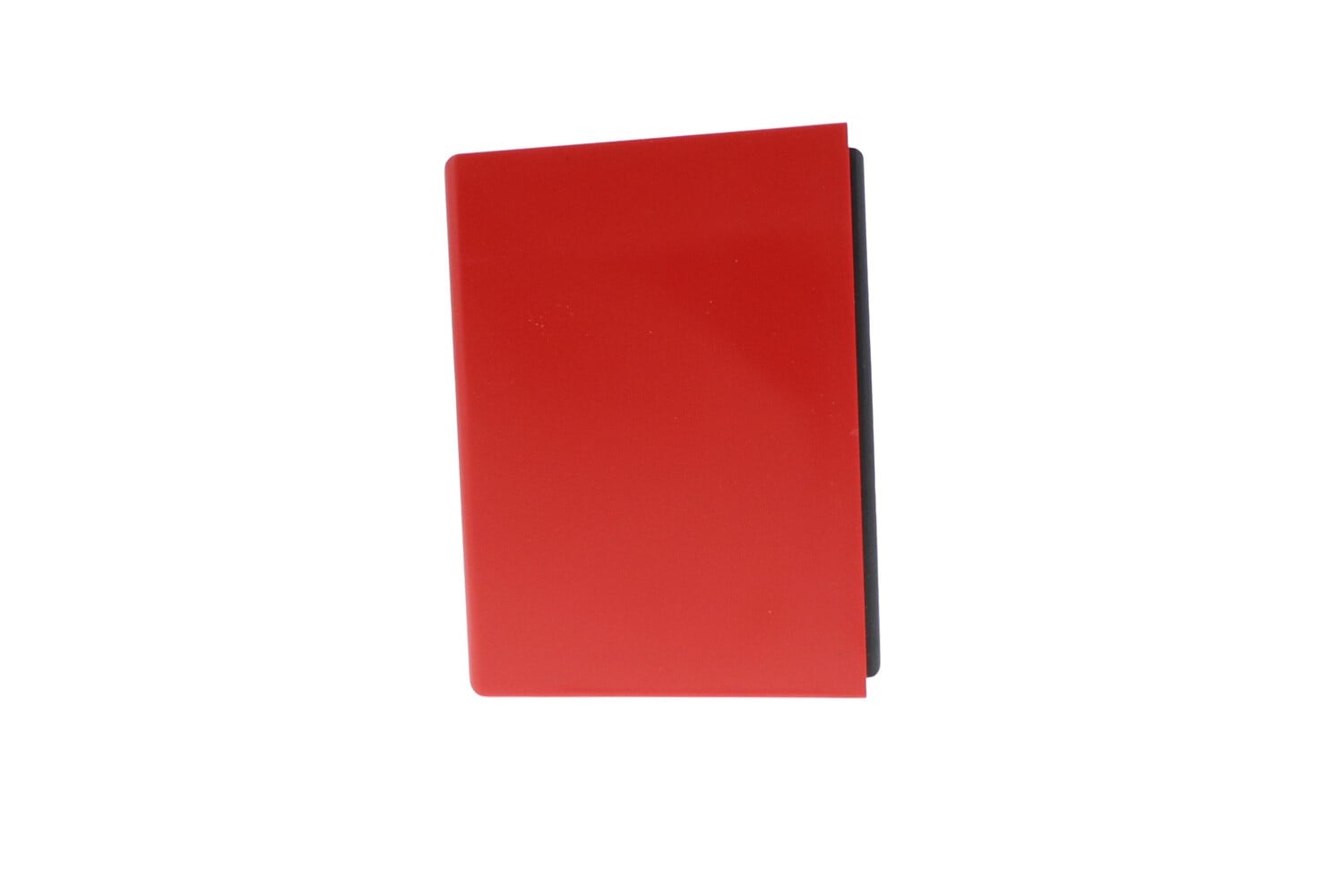

The Fireye MC120R 120 VAC, 50/60 Hz Chassis with remote reset.

Fireye MC120R Datasheet

Overview

The Fireye MC120R is a flame safeguard control chassis in the M Series II line, designed to drive and monitor burner ignition, flame detection, and safety circuits on gas or oil burners. It operates on 120 VAC (50/60 Hz) and includes a remote reset capability, making it well suited for applications where access to the chassis is limited or requires remote intervention.

This robust chassis is widely used in commercial and industrial combustion systems, offering proven reliability, compatibility with industry-standard sensors and scanners, and flexible mounting and wiring options.

Specifications

Features & Benefits

• Remote reset functionality for easier maintenance in hard-to-reach installations

• M Series II design ensures compatibility with existing Fireye flame scanner systems

• Capable of driving ignition, monitoring flame, and handling safety shutdowns

• Durable construction suited for industrial environments

• Simplifies burner control by providing a single integrated chassis

Applications

• Gas or oil burner systems in commercial / industrial heating

• Boilers, furnaces, burners where remote access is challenging

• Retrofit or replacement in fire alarm or combustion control panels

• Systems using Fireye scanners or sensor interfaces

Installation & Maintenance Notes

• Mount the chassis in a dry, accessible location away from excessive vibration

• Ensure proper fuse or circuit protection per Fireye recommendations

• Use correct wiring gauge and proper signal grounding to avoid electrical noise

• After installation, perform functional tests: ignition, flame sensing, failure modes, and remote reset operation

• Periodically inspect wiring, connectors, and chassis for corrosion or overheating

Warranty & Quality Assurance

• Built to Fireye’s OEM standards for durability and safety

• Warranty is valid when installed and operated according to manufacturer specifications

Apex Controls is not affiliated with Fireye or the use of the Fireye logo
