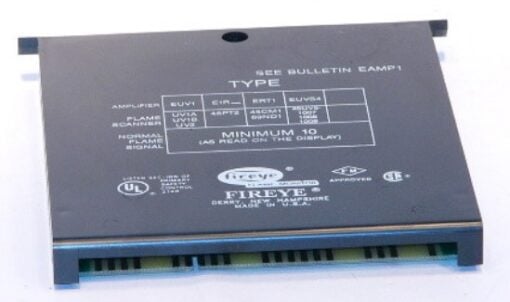

EUV1 Fireye Amplifier

Overview

The Fireye EUV1 is a standard ultraviolet (UV) flame amplifier module designed for use with the Fireye Flame-Monitor burner management system. It serves as a critical component in industrial and commercial combustion systems by amplifying the signals received from UV flame scanners to ensure safe burner operation. The EUV1 is specifically intended for intermittent operation where the burner cycles at least once every 24 hours, providing dependable flame detection for oil, gas, and combination-fuel applications.

Features

• Standard UV signal amplification for accurate and responsive flame sensing.
• Seamless integration with Fireye Flame-Monitor chassis (e.g., E100, E110, EB700).
• Supports remote display, reset, and diagnostic capabilities when paired with compatible modules.
• Plug-in design for easy installation and maintenance within the control system.
• Non-volatile memory for retaining control status during power interruptions.
• UL listed and FM approved for primary safety control applications.

Specifications

• Model Number: EUV1
• Amplifier Type: Ultraviolet (UV), non-self-check
• Supply Voltage: 120 VAC (standard for Flame-Monitor systems)
• Compatible Scanners: UV1A, UV2, UV8A, UV90, and 45UV3
• Temperature Range: -40° F to 140° F (-40° C to 60° C)
• Shipping Weight: Approximately 0.5 lbs to 1 lb
• Certifications: UL Component Recognized, FM Approved

Applications

The EUV1 is used in conjunction with Fireye Flame-Monitor systems to provide proper burner sequencing, ignition, and flame monitoring. It is ideally suited for monitoring flames from gaseous fuels such as natural gas and propane, as well as light oil fuels. Common applications include:

• Commercial and industrial boilers.
• Industrial furnaces and ovens.
• Power plants and utility boilers.
• Petrochemical and refinery burners.
• Waste incineration and thermal processing systems.
