62094 Spirax Sarco Vent
$589.00
The Spirax Sarco 62094 3/4 in. VS206 STEAM Air Vent DESCRIPTION

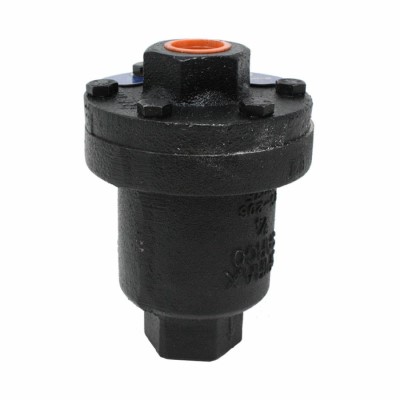

The Spirax Sarco 62094 3/4 in. VS206 STEAM Air Vent
DESCRIPTION
Spirax Sarco Thermostatic Air Vent, Balanced Pressure, VS 206 Series, 3/4 in NPT Connection, 250 psig Operating, Cast Iron, 5-1/2 in H, Domestic
The VS204 and VS206 air vents are designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation.
SPECIFICATIONS
| Type | : | Balanced Pressure |
| Domestic/Import | : | Domestic |
| Series | : | VS 206 |
| Material | : | Cast Iron |
| Connection Type | : | 3/4 in NPT |
| Pressure Rating | : | 250 psig Operating |
| Dimensions | : | 5-1/2 in H |
| Application | : | For installation at end of all steam mains and headers, On all steam equipment such as air coils, Heat exchangers, Autoclaves, Sterilizers, Platen presses, Rotating cylinders, Jacketed kettles, Laundry equipment and Reboilers |
| Industry Standards | : | ASTM A126 Body |
FEATURES
- Maximum allowable pressure: 250 psig up to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- Stainless steel internals
| Weight | 6 lbs |
|---|---|
| Dimensions | 7 × 9 × 6 in |
