16S14 Magnatrol Solenoid Valve

Datasheet

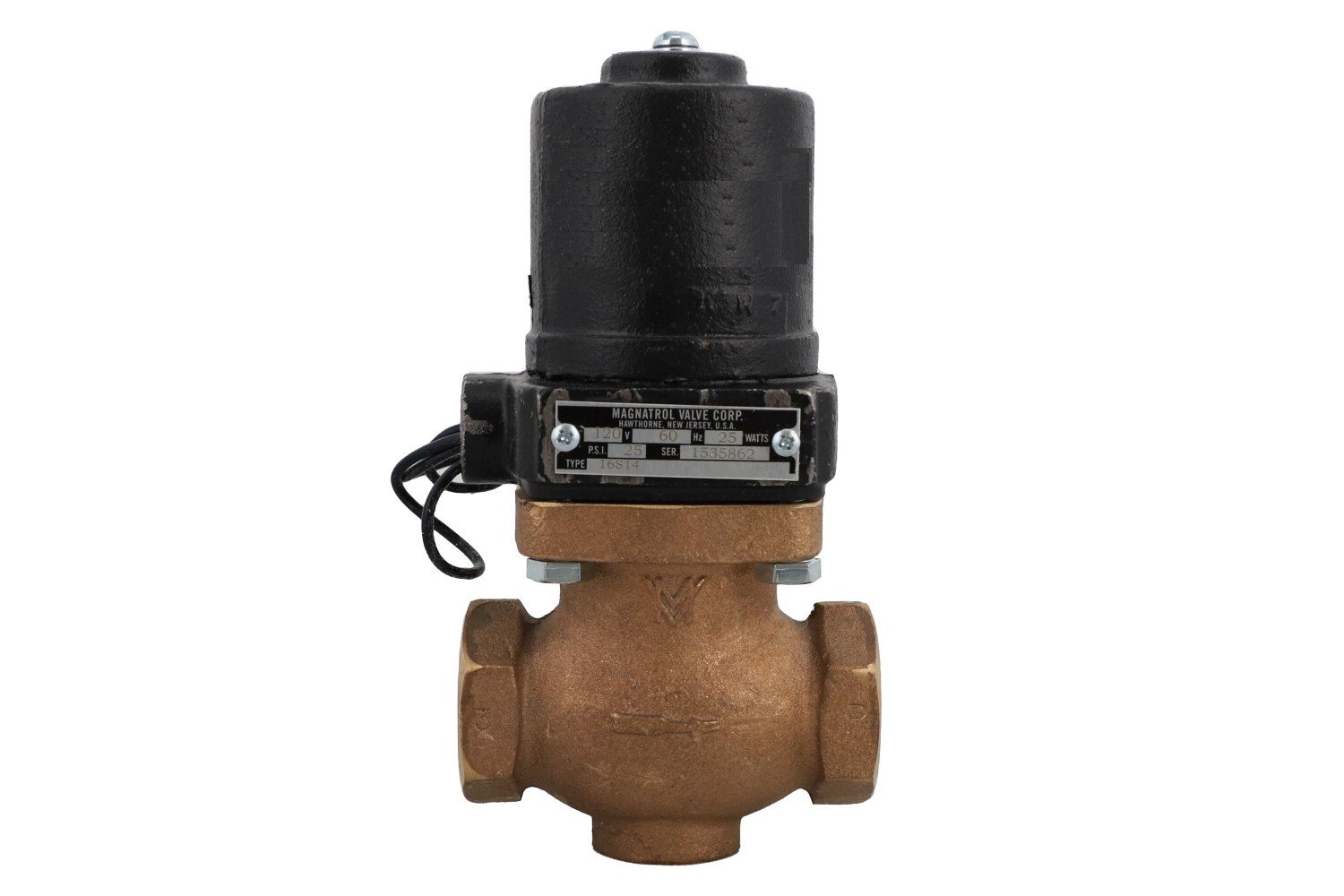

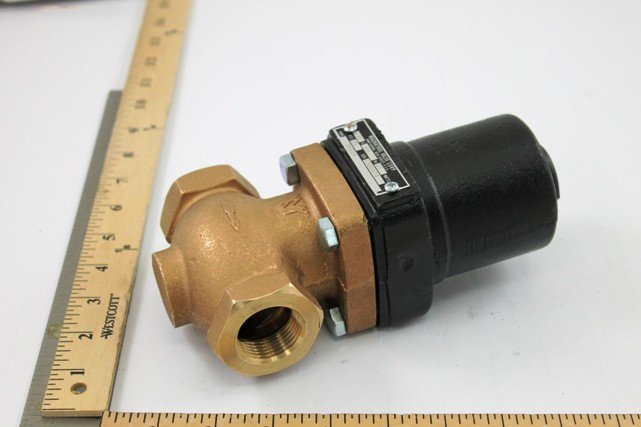

16S14 Magnatrol Solenoid Valve (G16S14SC-ACTS)

1″npt BRZ N/C 120V 0/25# STEAM

Operation: Valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger. Upon de-energizing the coil, a spring closes the pilot valve and opens a bleed passageway to permit pressure to build above the piston and seat it.

<h3>Overview</h3>
<p>The Magnatrol 16S14 is a Type ‘S’ full port, bronze solenoid valve designed for general purpose fluid control. It features a Normally Closed (N/C) operation, meaning the valve opens when the coil is energized and closes when power is de-energized. This pilot-operated valve is designed to operate from zero to its maximum differential pressure, requiring no pressure differential to open, and is constructed to be packless for dependable service.</p>
<h3>Features</h3>
<ul>
<li>Operation: Normally Closed (N/C), opening upon coil energization and closing when de-energized.</li>
<li>Construction: Cast Bronze body with Globe Pattern, NPT ends, and full port, packless design.</li>
<li>Coil: Encapsulated Class H coil is standard with 18″ leads.</li>
<li>Pressure Operation: Requires no differential pressure to open; has a Maximum Static Pressure of 200 PSI.</li>
<li>Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top.</li>
</ul>
<h3>Specifications</h3>
<ul>
<li>Part Number: 16S14 (also G16S14SC-ACTS)</li>
<li>Pipe Size: 1″ NPT</li>
<li>Maximum Differential Pressure (Max Diff PSI): 25 PSI</li>
<li>Control Voltage (Standard AC): 120 VAC, 60 HZ</li>
<li>Power Rating: 25 Watts AC / 18 Watts DC</li>
<li>Amperage (120-60): 0.4 Amp hold, 1.5 Amp inrush</li>
<li>Maximum Fluid Temperature: 400° F</li>
<li>Body Material: Bronze</li>
<li>Weight: Approximately 10 lbs</li>
</ul>
<h3>Applications</h3>
<p>The 16S14 solenoid valve is used to control the flow of Steam, provided the steam is free of sediment.</p>
