131S44 Magnatrol Solenoid Valve

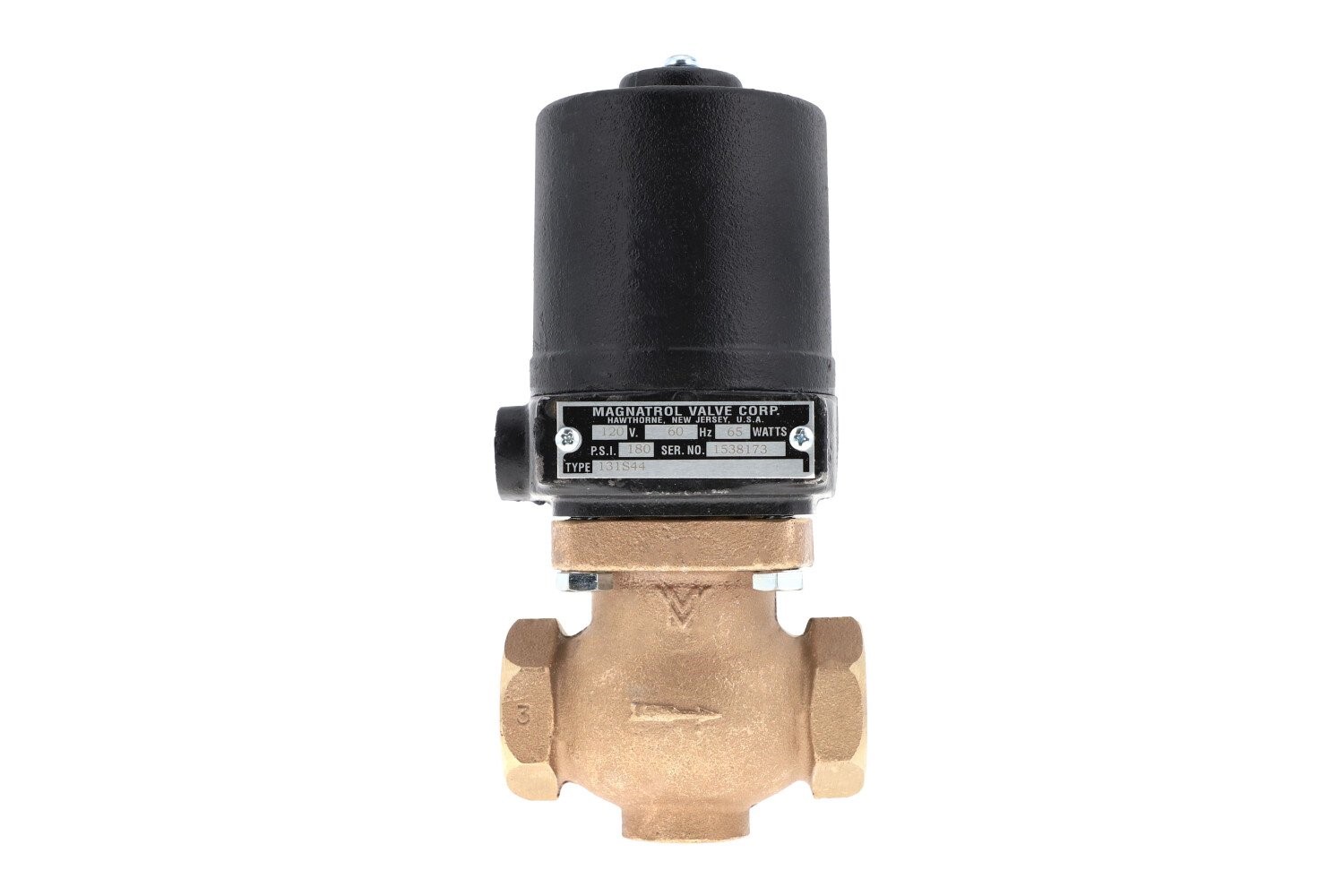

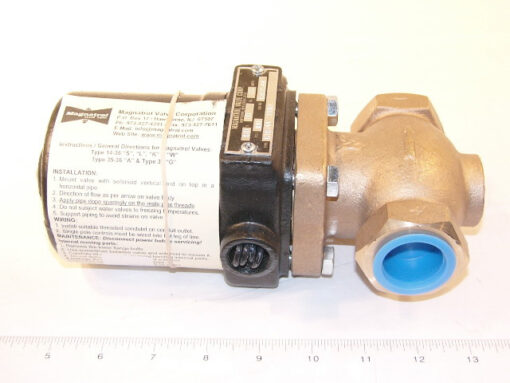

The Magnatrol 131S44 SOLENOID Valve 1″ N/C 13cv 0/180# STEAM 120V

Overview

The Magnatrol 131S44 is a full port, bronze solenoid valve, categorized as Type “”S,”” which is primarily designed for the control of steam. It features a Normally Closed (N/C) operation, meaning it opens when the coil is energized (Energize to Open) and closes when power is de-energized. This internal pilot-operated valve operates from zero up to its maximum differential pressure, requiring no pressure differential to open the valve, and is constructed to be packless for dependable service.

Features

• Operation: Normally Closed (N/C), opening when energized. The design utilizes a pilot valve, piston, and plunger mechanism.
• Construction: Cast Bronze body with a Globe Pattern and NPT ends.
• Coil: Encapsulated Class H coil is standard, designed for continuous duty with both AC and DC voltages.
• Pressure Operation: No differential pressure is required to open the valve.
• Design: Full Port, 2-Way Straight Thru design with packless construction.
• Wetted Parts: Bronze piston, 430 Stainless Steel plunger, 303 Stainless Steel pilot valve, and Glass Filled Teflon orifice seal.
• Installation: Must be mounted in a horizontal pipe with the solenoid enclosure positioned vertically and on top.

Specifications

• Part Number: 131S44
• Pipe Size: 1″” NPT
• Maximum Differential Pressure (Max Diff PSI): 180 PSI
• Maximum Fluid Temperature: 400° F
• Maximum Static Pressure: 200 PSI
• Control Voltage (Standard AC): 120 V-AC, 60 HZ
• Wattage: 65 Watts AC / 33 Watts DC
• Amperage (120-60): Hold Amps 1.2A; Inrush Amps 4.2A
• Body Material: Cast Bronze
• Coil Enclosure: Malleable or Cast Iron, 1/2″” NPS conduit connection
• Weight: Approximately 13.00 lbs

Applications

The 131S44 solenoid valve is used to control the flow of steam. For proper operation, the steam must be free of sediment. This valve is highly suitable for use in various industrial fluid control applications, including process control systems and fluid distribution.
