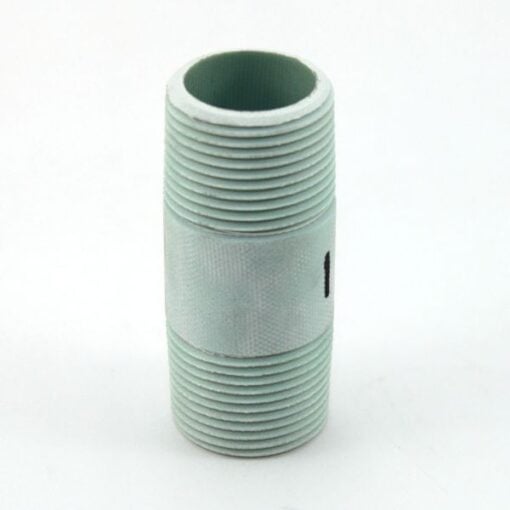

35-127-1 Fireye Insulator

Overview

The Fireye 35-127-1 is a high-quality heat insulating nipple designed to protect flame scanners from excessive heat transfer in industrial and commercial burner systems. By acting as a thermal barrier between the hot sight pipe and the flame scanner head, it prevents the transmission of conductive heat, thereby protecting sensitive internal electronics and ensuring the scanner’s longevity and reliable operation.

Features

• Thermal Protection: Minimizes heat exposure from hot sight pipes to extend the service life of scanner components.
• Secure Connection: Features a high-quality NPT threaded design for a leak-proof and heat-resistant fit.
• Industrial Durability: Built with robust materials capable of withstanding demanding boiler and burner environments.
• Signal Integrity: Helps maintain accurate flame detection by reducing heat-related interference and operational failures.

Specifications

• Model Number: 35-127-1
• Connection Size: 1 inch NPT
• Cross Reference: 116D22
• Compatibility: Specifically designed for Fireye 45UV5 series scanners
• Material: High-temperature resistant insulating material
• Weight: Approximately 0.5 lbs to 1.0 lbs

Applications

The 35-127-1 heat insulator is primarily used in industrial and commercial combustion systems, including boilers and burners. It is specifically engineered for use with Fireye 45UV5, 45RM, 45FS, 85UVF, and 95 Series flame scanners. It is an essential accessory in high-temperature applications where the scanner is mounted directly to a sight pipe that reaches temperatures exceeding the scanner’s rated limits.
