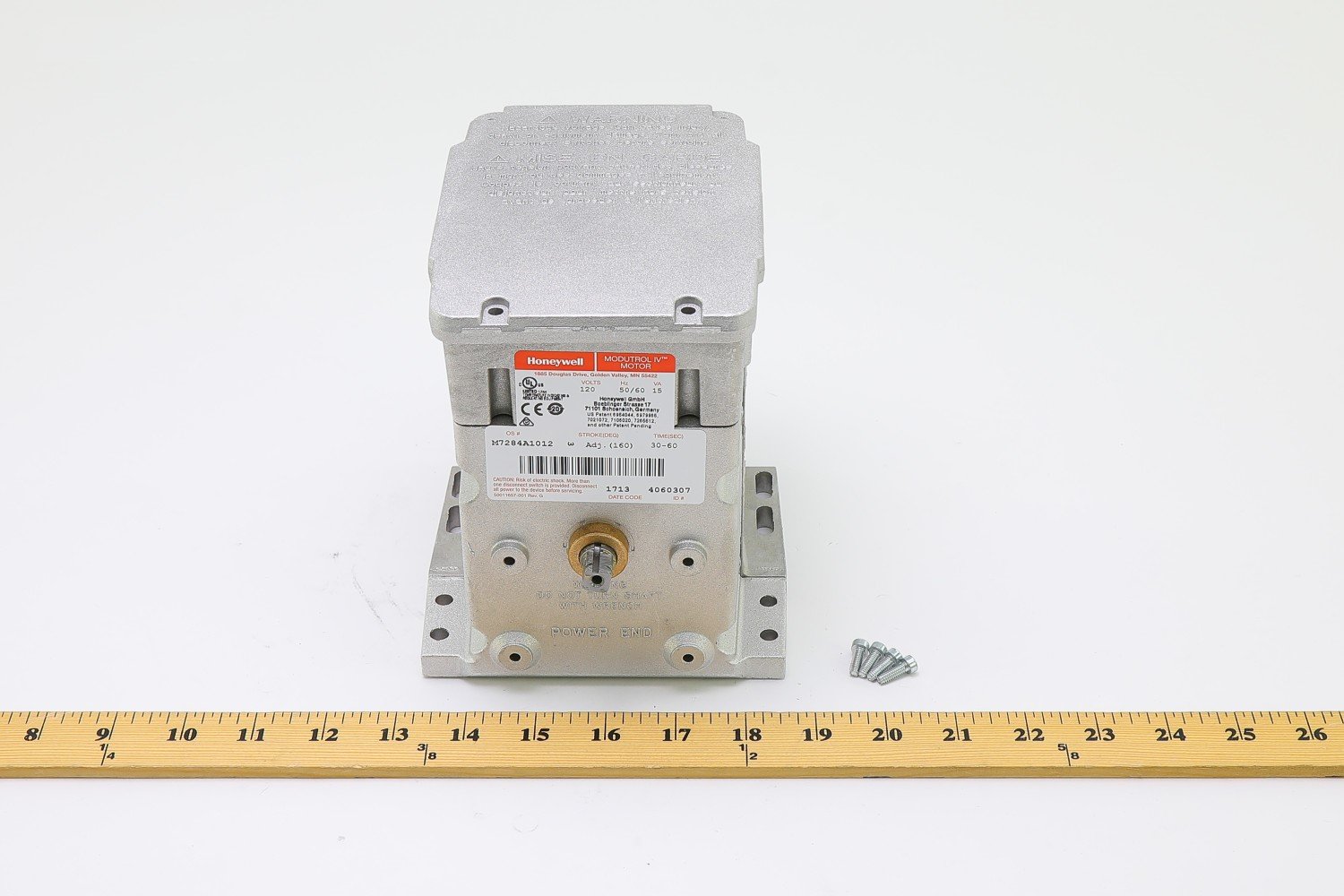

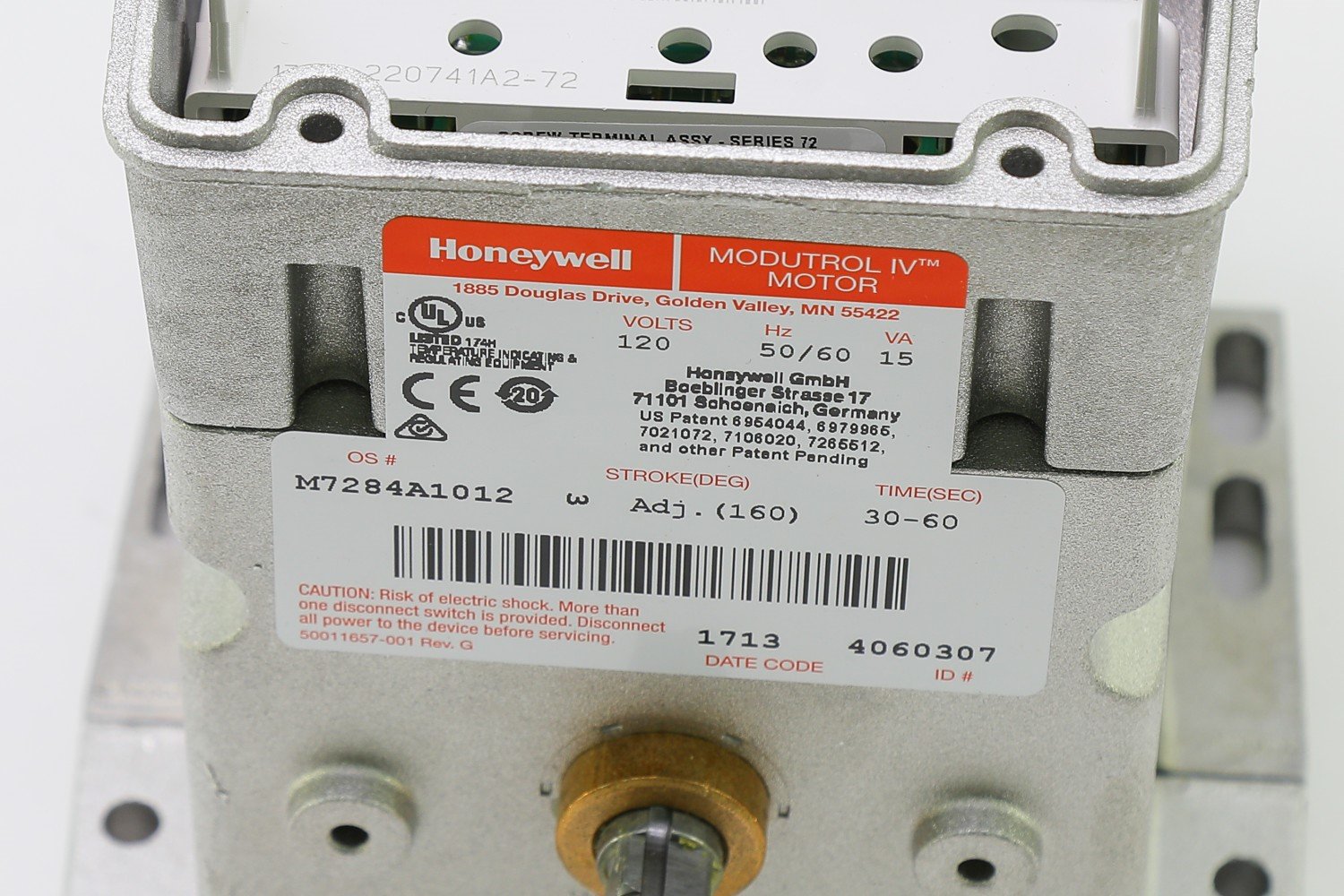

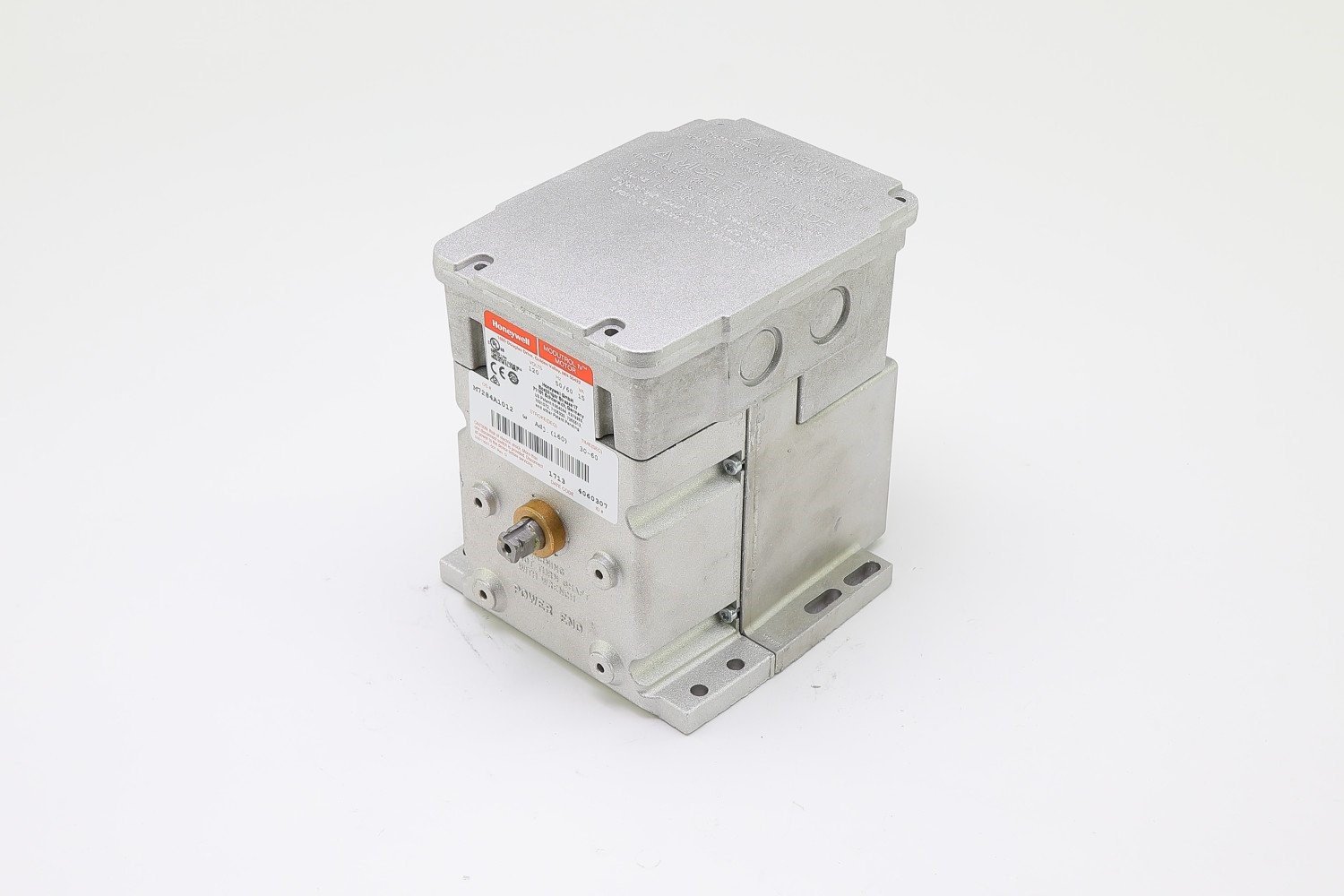

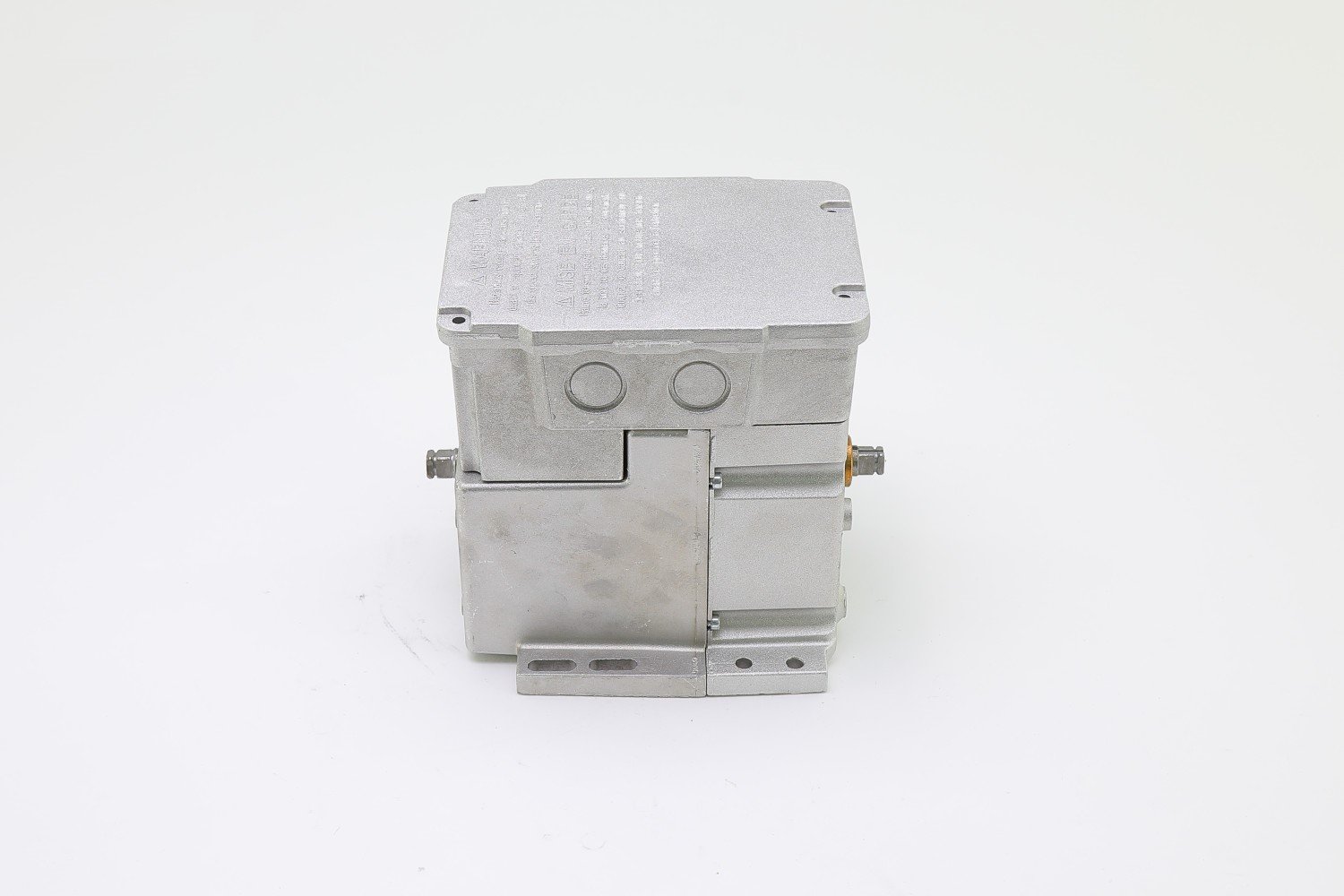

M7284A1012 Honeywell Actuator – 120V Non-Spring Return, Modutrol IV
$1,130.00
M7284A1012 Modutrol IV Motor, 120Vac, Non Spring Return, 150 Lb-In Torque, 30-60 Second Nominal Timing, Modualting, 4-20 Ma Control Signal, 90-160 Degree Stroke, 160 Degree Factory Stroke Setting, Foot Mounted, Dual Ended Square Shaft, Integral Junction Box Provides Nema 3 Weather Protection, Includes Transformer and Screw Terminal Adapter
3 in stock
M7284A1012 Honeywell Datasheet
Overview
The Honeywell M7284A1012 is a non-spring return Modutrol IV actuator designed for precise positioning of dampers and valves in HVAC and industrial systems. Operating at 120 volts, this actuator delivers 150 lb-in torque with adjustable stroke and durable construction, making it ideal for demanding applications.
M7284A1012 Specifications
| Specification | Value |
|---|---|
| Voltage | 120 VAC, 50/60 Hz |
| Actuator Type | Non-spring return |
| Torque | 150 lb-in |
| Control Signal | Modulating (4–20 mA or equivalent) |
| Stroke Range | Adjustable 90° to 160° |
| Stroke Timing | 30–60 seconds |
| Mounting Style | Foot-mounted |
| Shaft | Dual-ended 3/8 in square |
| Operating Temperature | –40 °F to +150 °F |
| Housing Material | Die-cast aluminum |
| Power Consumption | 15 VA (driving) |
| Auxiliary Switches | Optional (not included in this model) |
Key Features & Benefits
-
Provides modulating control for valves and dampers.
-
Adjustable stroke settings from 90° to 160°.
-
Durable die-cast aluminum housing built for harsh environments.
-
Foot-mounting design simplifies installation and retrofits.
-
Works across a wide ambient temperature range.
-
Reliable torque output ensures consistent positioning.
Applications
-
HVAC damper modulation
-
Valve actuation for hot water and chilled water systems
-
Industrial control systems requiring proportional actuation
-
Replacement for older non-spring return actuators
Installation & Maintenance
-
Confirm correct wiring and polarity before energizing the unit.
-
Adjust stroke limits according to system requirements.
-
Ensure linkage is properly aligned to avoid binding.
-
Inspect actuator and connections periodically for wear.
-
Do not force the shaft manually, as this can damage internal gearing.
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 7 × 10 × 8 in |
