AG13A020 Schneider Electric Erie PopTop Actuator
$63.00

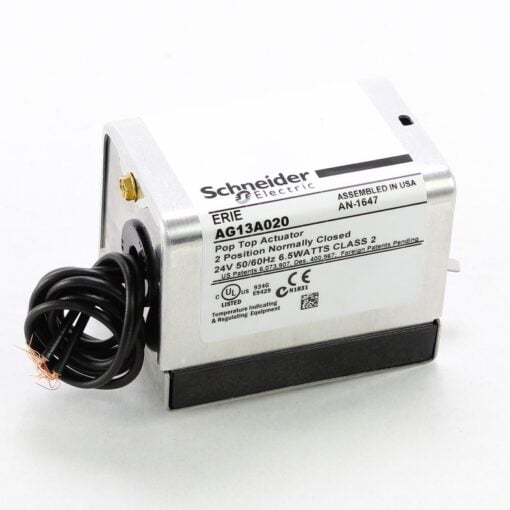

Invensys AG13A020 Two Position Actuator, 24V, GCO, N.C., General Temp, 18″ Leads; Act (AG13A020): Elec, 2Pos, SR, 24 VAC, App, Rotary, N1, Erie PopTop
Overview of AG13A020 Schneider Electric Erie PopTop Actuator
The AG13A020 is a PopTop series spring-return, two-position actuator used in HVAC zone valve assemblies. It is designed for easy installation and servicing, as it can be installed or removed from the valve body without disturbing the piping. This actuator is typically used with 2-way (on/off) zone valves and is frequently paired with Erie VT/VS PopTop valve bodies. Invensys AG13A020 Two Position Actuator, 24V, GCO, N.C., General Temp, 18″ Leads
Actuator: (AG13A020):
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: 18 in Appliance
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: AG
- Actuator Use: Zone Valves
Product Specifications
| Actuator Housing Material | Stainless steel base plate, aluminum cover |
| Actuator Type | Electric |
| Actuator Use | Zone Valves |
| Auxiliary Switch | 1 SPDT |
| By Schneider | Yes |
| California Residents | WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Control Signal | 2-Position (On/Off) |
| Humidity | 5 to 95% non-condensing |
| IP Protection Rating | IP10 |
| Lead Length | 18 in |
| Leads and Connections | Appliance |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Motor Type | AC Synchronous |
| NEMA Protection Rating | NEMA 1 |
| Override | Automatic reset |
| Position Indicator | Housing scale |
| Power Consumption Running VA | 7.50 VA |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 24 VAC |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | AG |
| Stroke Running time | 51.0 s |
| Temperature Ambient Operating Range | 0 to 93.3 C (32 to 200 F) |
| Temperature Shipping and Storage Range | -40 to 71 C (-40 to 159.8 F) |
Features & Benefits
-
PopTop modular design: actuator can snap on/off valve body without disturbing piping
-
Spring-return mechanism ensures safe default position during power loss
-
Removable actuator makes servicing fast and non-disruptive
-
Designed for general close-off (GCO) applications in standard HVAC zoning
-
Compatible with PopTop series valves for mixing or diverting functions
-
Offers durable performance in standard heating and cooling systems
Applications
-
HVAC zone control on hot water or chilled water systems
-
Mixing / diverting valve actuation in hydronic systems
-
Retrofits or upgrades for existing PopTop valve installations
-
Systems requiring reliable on/off control with fail-safe fallback
Installation & Maintenance Tips
-
Ensure actuator is wired to 24 VAC supply, observe polarity and wiring length
-
Snap the actuator onto the valve body after piping is installed
-
Verify full stroke and correct valve action before system commissioning
-
Manual override can be used for testing or maintenance
-
Inspect periodically for wear, gear integrity, and ensure actuator alignment
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 4 × 3 in |
