114S43 Magnatrol Solenoid Valve

The Magnatrol 114S43 SOLENOID Valve 3/4″ NC 0/110#Steam 120vFullPo

Overview

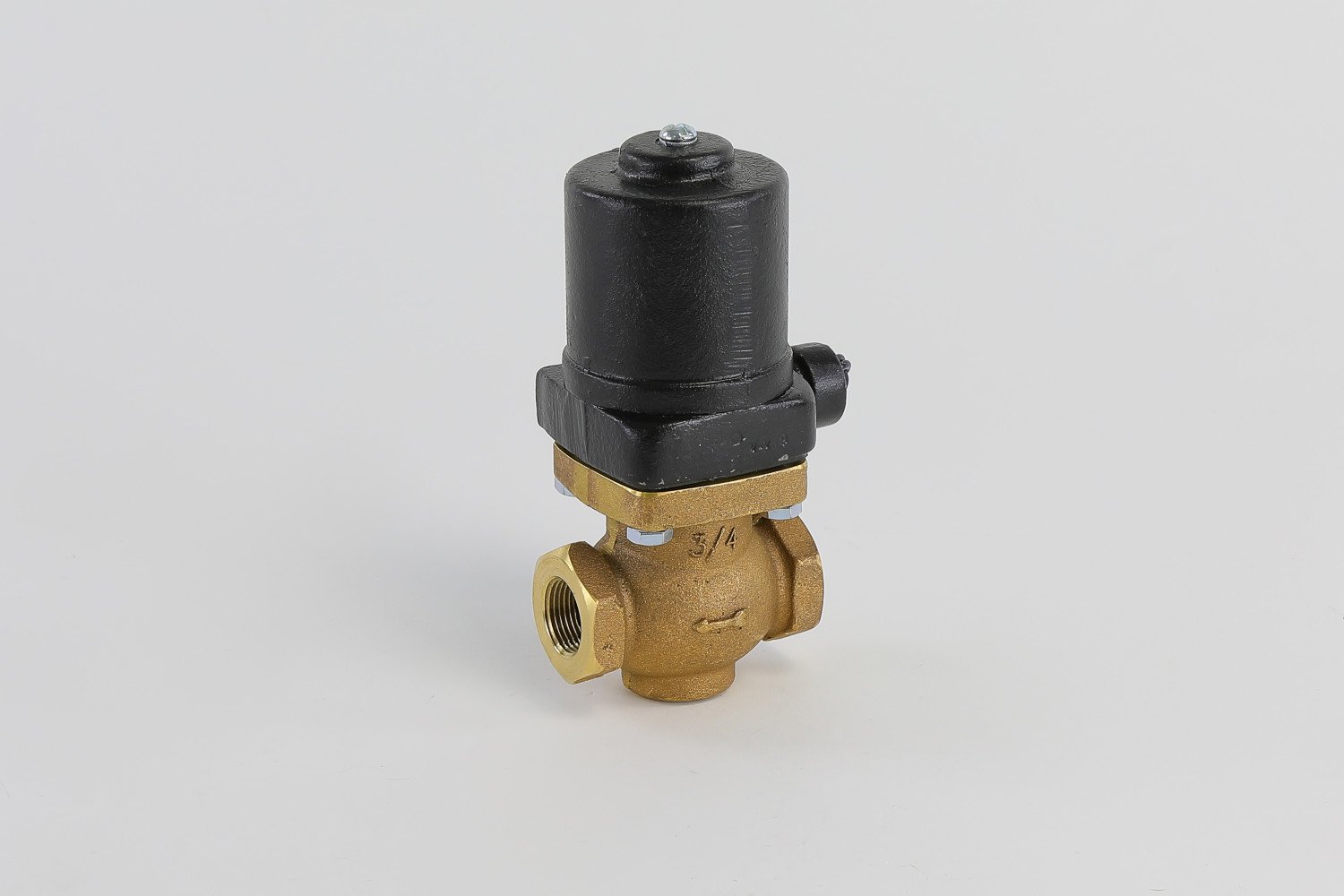

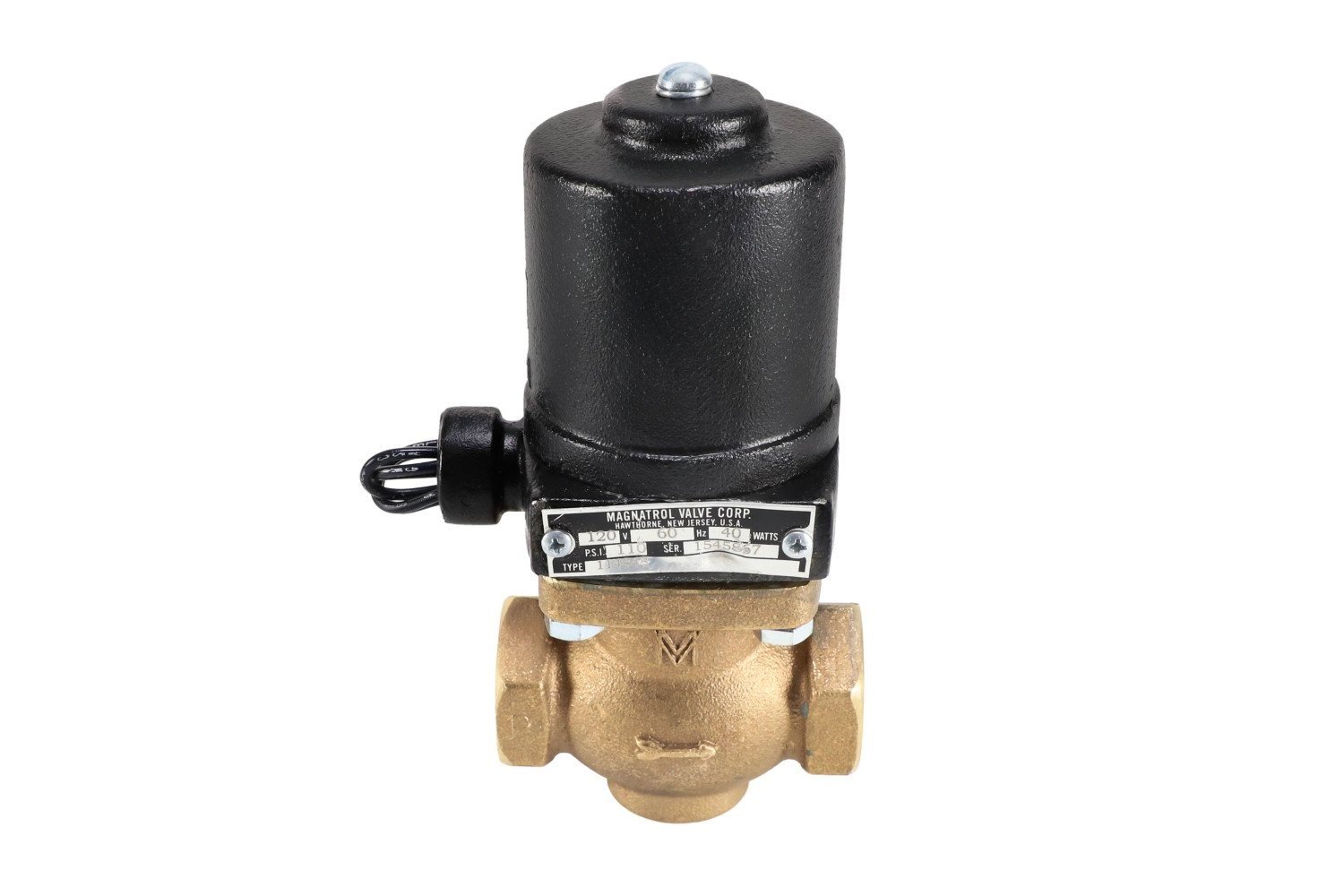

The Magnatrol 114S43 (Type S) is a full port, two-way, bronze solenoid valve. It features a Normally Closed (N/C) operation, meaning it is an “Energize to Open” design where the valve opens when the coil is energized and closes when power is de-energized. This internal pilot-operated valve is designed to operate from zero to its maximum differential pressure, requiring no differential pressure to open. It is packless in construction and features a coil designed for continuous duty.

Features

• Operation: Normally Closed (N/C), opening upon coil energization.
• Port: Full Port, providing a straight-thru design.
• Pressure Operation: Operates from zero to maximum differential pressure with no differential pressure required to open.
• Construction: Cast Bronze body with Globe Pattern, NPT ends, and packless design.
• Coil: Encapsulated Class H coil with 18-inch leads, designed for continuous duty with both AC and DC voltages.
• Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top.
• Materials: Bronze Piston, 430 Stainless Steel Plunger, 303 Stainless Steel Pilot Valve, and Glass Filled Teflon Orifice Seal.

Specifications

• Part Number: 114S43 (G114S43SC-ACTS)
• Pipe Size: 3/4″ NPT
• Maximum Differential Pressure (Max Diff PSI): 110 PSI
• Maximum Fluid Temperature: 400° F
• Control Voltage (Standard AC): 120 VAC, 60 HZ
• Wattage: 40 Watts AC / 28 Watts DC
• Amperage (120-60): Hold Amps 0.6A; Inrush Amps 2.0A
• Body Material: Bronze
• Maximum Static Pressure: 200 PSI
• Standards: Explosion-Proof & NEMA 4; NEMA 12 (General Purpose); NEMA 4X

Applications

The 114S43 solenoid valve is primarily used to control the flow of steam. It is essential that the steam be clean and free of sediment for proper function.
