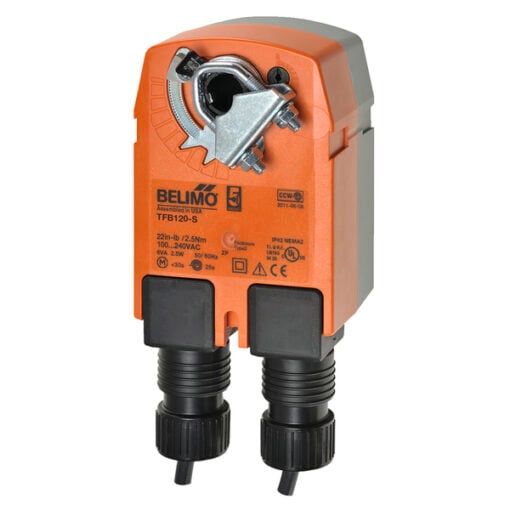

TFB120-S Belimo Damper Actuator

The Belimo TFB120-S Damper Actuator,22 in-lb,Spring Return,100 to 240V,On/Off

Datasheet

Installation Guide

Application

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact, or a manual switch. The actuator is mounted directly to a damper shaft from 1/4” up to 1/2” in diameter by means of its universal clamp, 1/2” shaft centered at delivery. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

Operation

The TF series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides consistent torque to the damper with, and without, power applied to the actuator. The TF series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 90°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. Power consumption is reduced in holding mode. The actuator is double insulated so an electrical ground connection is not necessary. The TF-S versions are provided with one built-in auxiliary switch. This SPDT switch is provided for safety interfacing or signaling, for example, for fan start-up. The switching function is adjustable between 0° and 95°.

Specifications

• Actuator Type
  • Spring return
• Angle of Rotation
  • 95°
• Auxiliary Switches
  • 1 x SPDT
• Control Type
  • On/Off
• Degree of Protection
  • IP42, NEMA 2, UL Enclosure Type 2
• Direction of Rotation (Fail-Safe)
  • Reversible with cw/ccw mounting
• Electrical Connection
  • Cable
• Power Consumption (Holding)
  • 3 W
• Power Consumption (Running)
  • 5 W
• Running Time (Fail-safe)
  • <25 s
• Running Time (Motor)
  • 75 s
• Safety Function
  • YES
• Shaft Diameter
  • 1/4…1/2″ round, centers on 1/2″
• Torque
  • 22 in-lb [2.5 Nm]
• Voltage AC/DC
  • AC 100…240 V
