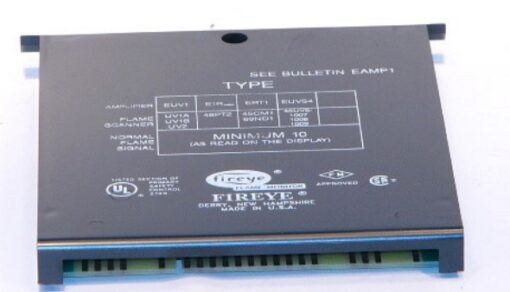

E1R1 Fireye Amplifier

Overview

The Fireye E1R1 is a plug-in infrared AutoCheck flame amplifier module designed for use with the Fireye Flame-Monitor burner management control system. It provides accurate and reliable flame detection for industrial and commercial combustion systems by amplifying infrared signals. A key feature is its AutoCheck functionality, which continuously verifies the integrity of the flame detection system during burner operation, ensuring high safety standards for applications with long or continuous operating cycles.

Features

• AutoCheck technology for continuous self-monitoring and verification of the scanner and amplifier.
• Infrared (IR) flame detection optimized for sensing fuel radiation while ignoring background heat.
• Plug-in design allows for easy installation and modular replacement within the Flame-Monitor chassis.
• Status indication through the Flame-Monitor display module for diagnostic and monitoring purposes.
• Non-volatile memory within the system chassis ensures control status is retained even after power interruptions.

Specifications

• Model Number: E1R1
• Compatible Scanners: Fireye 48PT2 infrared scanners
• Supply Voltage: 120 VAC (+10%, -15%), 50/60 Hz
• Operating Temperature: -40 degree F to 140 degree F (-40 degree C to 60 degree C)
• Shipping Weight: Approximately 0.44 lbs (0.2 kg)
• Dimensions: 6.45 x 6.7 x 1.7 inches

Applications

The E1R1 amplifier is used in conjunction with Fireye Flame-Monitor systems (such as E110 chassis) to provide flame safeguard protection for automatically ignited oil, gas, and combination fuel burners. It is primarily applied in industrial boilers, furnaces, and commercial heating systems where reliable infrared flame monitoring is required. It is ideally suited for continuous or long-burning processes that benefit from the safety provided by automatic self-checking components.
