VM2252
$106.30
VB: 1/2 in, 2W, Zone, FLR, BR, 2 cv, Erie PopTop, No Steam
1/2″ Flare, Modulating, 2-Way, General Temp

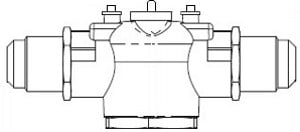

Valve Body (VM2252):
- Body Size: 15 mm (1/2 in)
- Configuration: 2-Way
- Type: Zone
- Connection: Flare
- Material Trim: Brass
- Flow Coefficient: 2 Cv
- Control Media: Glycol 25 to 60% and Water
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: VM2
Product Alert: Not for use with steam
Product Specifications
| Body Size | 15 mm (1/2 in) |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Configuration | 2-Way |
| Connection Type | Flare |
| Flow Characteristic | Equal percentage |
| Flow Coefficient | 1.73 kvs |
| 2.00 cv | |
| Material Body | Forged brass |
| Material Paddle | High temperature thermoplastic/rubber |
| Material Seat Port A | Brass |
| Material Stem | Nickel-plated/chrome-plated brass |
| Material Trim | Brass |
| Media Compatibility | Glycol 25% |
| Glycol 30% | |
| Glycol 50% | |
| Glycol 60% | |
| Water | |
| Pipe Size | 1/2 in |
| Pressure Allowable Static | 400 psi |
| Pressure Class | 400 ANSI |
| Product Range | Erie PopTop |
| Product Series | VM2 |
| Seat Leakage Port A | ANSI IV (0.01%) |
| Stem Movement | Rotary |
| Temperature Range Fluid | 0 to 93 C (32 to 200 F) |
| Type | Zone |
| Weight | 2 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
