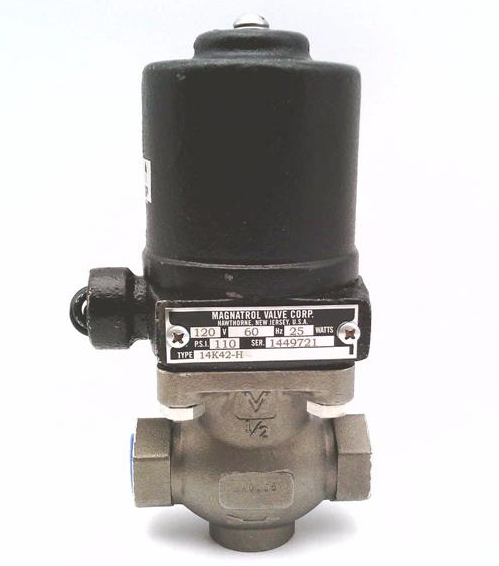

14K42 Magnatrol Solenoid Valve (G14K42SC-ACTH)

14K42 Magnatrol Solenoid Valve (G14K42SC-ACTH) 1/2″npt N/C 120V 110# SS

Overview

The Magnatrol 14K42 is a Type “K,” two-way, full port solenoid valve designed for general industrial and process control applications. It features Normally Closed (N/C) operation, meaning the valve opens when the coil is energized and closes when power is de-energized. This valve is constructed from stainless steel and is capable of operating from zero up to its maximum differential pressure, requiring no pressure differential to open.

Features

• Operation: Normally Closed (N/C), opening upon coil energization.
• Construction: Stainless Steel (304 SS Globe Pattern) body with NPT ends and a packless design for dependable service.
• Full Port: Provides a straight-thru design for maximum flow.
• Coil: Encapsulated continuous duty coil (Class H) suitable for both AC and DC voltages.
• Pressure Operation: No differential pressure is required for the valve to open.
• Fluid Temperature: Rated for high-temperature service up to 400° F.
• Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top.

Specifications

• Part Number: 14K42 (G14K42SC-ACTH)
• Pipe Size: 1/2″ NPT
• Maximum Differential Pressure (Max Diff PSI): 110 PSI
• Maximum Static Pressure: 300 PSI
• Control Voltage (Standard AC): 120 VAC, 60 HZ
• Power Rating AC: 25 Watts
• Amps Hold AC: 0.4 (120-60)
• Amps Inrush AC: 1.2 (120-60)
• Power Rating DC: 18 Watts
• Maximum Fluid Temperature: 400° F
• Body Material: Stainless Steel
• Shipping Weight: Approximately 7-8 lbs

Applications

The Type 14K42 solenoid valve is used to control the flow of a variety of fluids, particularly those that are corrosive or cryogenic. Suitable applications include controlling the flow of:

• Corrosive Fluids
• Deionized Water
• Hot Liquids and Hot Gases
• Condensate and Ammonias
• Vegetable Oils and Fuel Oils
• Flammable Liquids
• Cryogenic fluids (including Liquid Oxygen, Liquid Argon, and Liquid Nitrogen)

It is suitable for any fluids that are not reactive with the construction materials and are free of sediment.
