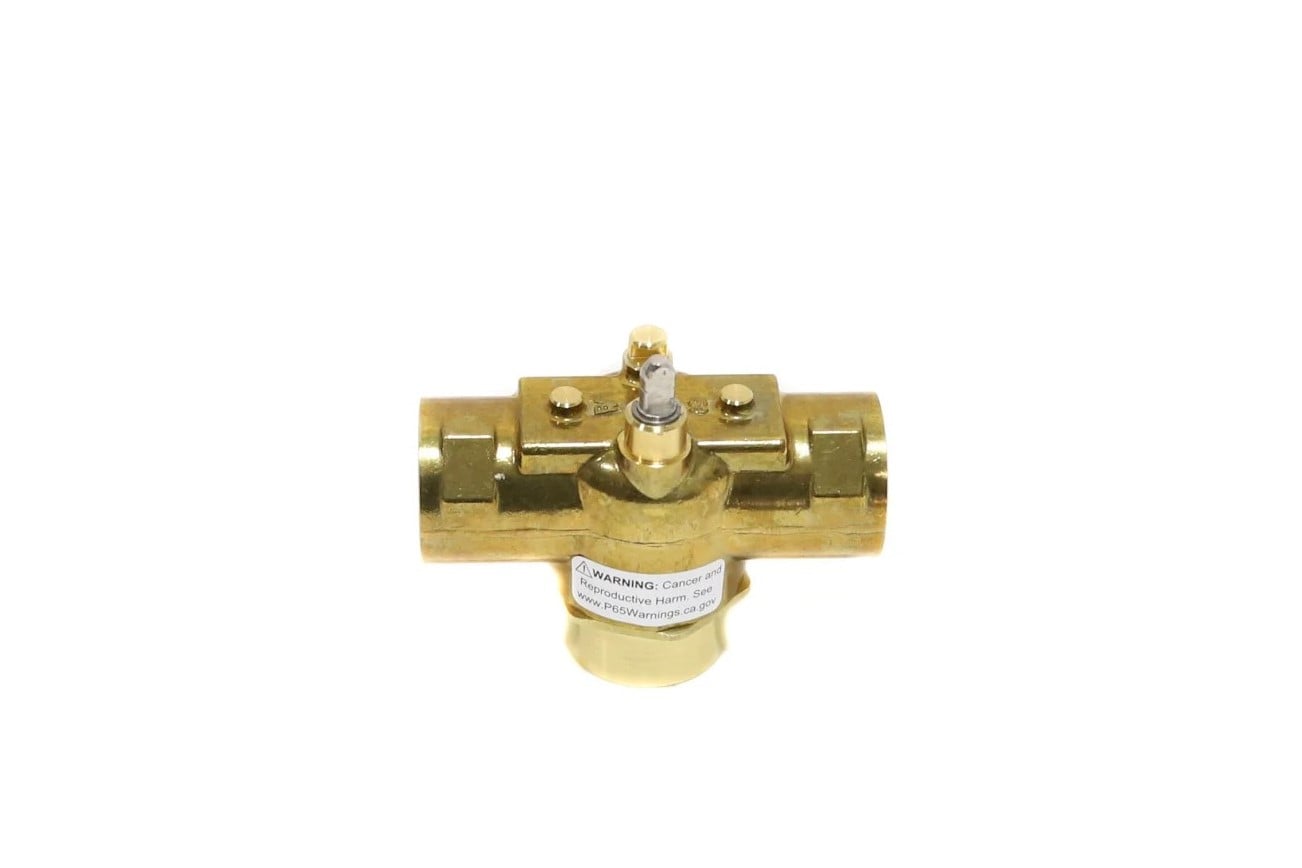

VT3415 Schneider Electric Erie Poptop Valve
$109.00
VB: 1 in, 3W Mix/Div, Zone, SWT, BR, 5 cv, Erie PopTop, No Steam
1 in stock (can be backordered)
VT3415 Schneider Electric Erie Poptop Valve
VLV BODY 2POS 3W 1IN SWT
Valve Body (VT3415):
- Body Size: 1 in
- Configuration: 3-Way Mixing/Diverting
- Type: Zone
- Connection: Sweat
- Material Trim: Brass
- Flow Coefficient: 5 Cv
- Control Media: Glycol 25 to 50% and Water
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: VT3
Product Alert: Not for use with steam
Product Specifications
| Body Size | 25 mm (1 in) |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Carbon footprint (kg CO2 eq, Total Life cycle) | 3 |
| Carbon footprint of the distribution phase [A4] | 0.07753821308973825 |
| 0.1 kg CO2 eq. | |
| Carbon footprint of the end-of-life phase [C1 to C | 1 kg CO2 eq. |
| 1.127149763538999 | |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| 0.0024897978271050626 | |
| Carbon footprint of the manufacturing phase [A1 to | 2 kg CO2 eq. |
| 2.2223992306814524 | |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 0 |
| 0 kg CO2 eq. | |
| Circularity Profile | No need of specific recycling operations |
| Configuration | 3-Way Mixing/Diverting |
| Connection Type | Sweat |
| Final Result for Connectable | Not connectable |
| Final Result for Flywheel performance tracking | Non Flywheel |
| Flow Characteristic | Quick open |
| Flow Coefficient | 4.32 kvs |
| 4.99 cv | |
| Manufacturer | Schneider Electric |
| Material Body | Forged brass |
| Material Stem | Nickel Plated Brass |
| Material Trim | Brass |
| Media Compatibility | Glycol 25 % |
| Glycol 30 % | |
| Glycol 50 % | |
| Water | |
| Packaging made with recycled cardboard | Yes |
| Packaging without single use plastic | No |
| Paddle Material | Buna N |
| Pipe Size | 1 in |
| Pressure Allowable Static | 400 psi |
| Pressure Class | ANSI class 400 |
| Product Alert | Not for use with steam |
| Product Or Component Type | Valve |
| Seat Leakage | Port A: Class IV (0.01 %) |
| Seat Material | Port A: brass |
| Selection Tools | Valve Selection Tool |
| Stem Movement | Rotary |
| Sustainable packaging | No |
| Take-back | No |
| Temperature Range Fluid | 32…199 °F (0…93 °C) |
| Total lifecycle Carbon footprint | 3 kg CO2 eq. |
| Valve Product Range | Erie PopTop |
| Valve Product Series | VT3 |
| Valve Type | Zone |
| Warranty (in months) | 18 |
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 3 in |
