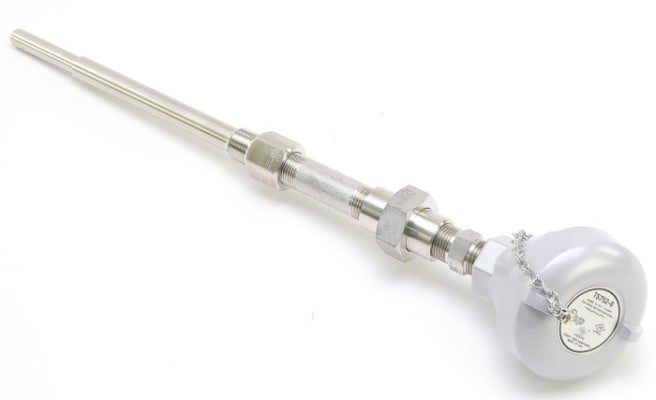

TS752-8 Fireye Sensor

Overview

The Fireye TS752-8 is a high-precision immersion-style temperature sensor designed for industrial burner management and combustion control systems. It utilizes a platinum RTD sensing element to provide accurate and stable temperature feedback, ensuring safe and efficient burner operation. This sensor is engineered for compatibility with Fireye PPC4000 Fuel Air Ratio Controllers and BurnerLogix Burner Management Systems, providing a linear 4-20 mA control signal over its specified temperature range without requiring manual calibration or setting.

Features

• Platinum, positive temperature coefficient sensing element for reliable accuracy.
• Linear 4-20 mA output signal directly proportional to the detected temperature.
• 8-inch insertion length probe for deep immersion in pipes or tanks.
• Includes a rugged stainless steel thermowell for protection against high pressure and corrosive environments.
• 1/2-14 NPT mounting for secure installation in standard industrial fittings.
• No field calibration or settings required for simplified setup and maintenance.

Specifications

• Model Number: TS752-8
• Temperature Range: 32 F to 752 F (0 C to 400 C)
• Output Signal: 4-20 mA DC
• Insertion Length: 8 inches
• Mounting: 1/2 inch – 14 NPT
• Sensing Element: 100 ohm Platinum RTD
• Thermowell Material: Stainless Steel
• Dimensions: Approximately 20.4 x 6.6 x 6.9 inches
• Shipping Weight: Approximately 3.13 lbs

Applications

The TS752-8 is primarily used to monitor and signal temperatures for water, stack gases, boiler water in steam boilers, and outdoor air. It is specifically designed for integration with Fireye Nexus PPC4000 and BurnerLogix systems with integrated boiler control. It is ideally suited for demanding industrial heating environments where consistent temperature data is critical for system performance, safety, and energy efficiency.
