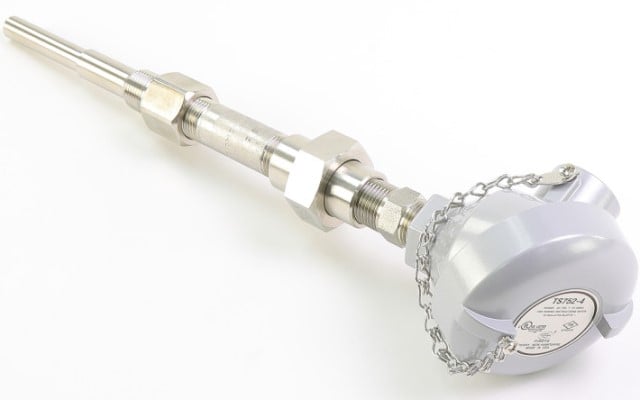

TS752-4 Fireye Sensor

Overview

The Fireye TS752-4 is a precision-engineered RTD (Resistance Temperature Detector) probe assembly designed for industrial burner management and combustion control systems. This immersion-style temperature sensor provides accurate and stable feedback to support safe and efficient burner operation. It is specifically designed to integrate seamlessly with the Fireye PPC4000 Fuel Air Ratio Controller and BurnerLogix management systems, providing a linear 4-20 mA control signal across its temperature range.

Features

• High-accuracy platinum 100-ohm RTD sensing element for reliable temperature monitoring.
• Provides a stable 4-20 mA output signal that is linear with the measured temperature.
• Durable construction featuring a 300-series stainless steel thermowell for protection in demanding environments.
• Simplified installation process with no field calibration or settings required.
• Robust design suitable for various industrial heating and combustion applications.

Specifications

• Temperature Range: 32 degree F to 752 degree F (0 degree C to 400 degree C).
• Insertion Length: 4 inches.
• Output Signal: 4-20 mA.
• Sensing Element: Platinum RTD, 100 ohms +/- 0.1% at 32 degree F.
• Mounting: 1/2-14 NPT threaded connection.
• Operating Ambient Temperature: -13 degree F to 185 degree F (-25 degree C to 85 degree C).
• Accuracy: +/- 0.75% of span.
• Thermowell Material: 300 Series stainless steel.

Applications

The TS752-4 is utilized in industrial and commercial facilities to monitor critical temperatures within combustion systems. Key applications include measuring water temperature, stack temperature, and boiler water temperature in steam boiler systems. It is also used for outdoor air temperature monitoring. The sensor is a standard component for systems utilizing Fireye PPC4000 and BurnerLogix controls where precise thermal feedback is necessary for fuel/air ratio optimization.
