BLL510 Fireye Keypad Display

Overview

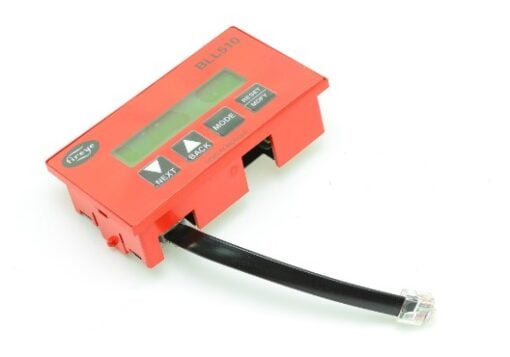

The Fireye BLL510 is a liquid crystal display (LCD) and keypad module designed for use with the BurnerLogix series of flame safeguard and burner management controls. This plug-in module provides a user-friendly interface for monitoring current operating status, reviewing lockout history, and configuring factory default parameters within the programmer module. Featuring a 2-line by 16-character alpha-numeric display, the BLL510 delivers full language descriptors of system diagnostics and status, improving usability and on-site management of industrial combustion systems.

Features

• High-visibility 2-line x 16-character LCD screen for clear status and diagnostic feedback.
• Integrated 4-key tactile feedback keypad for easy menu navigation and parameter modification.
• Ability to change factory default settings stored in the programmer module via the Program Setup sub-menu.
• Comprehensive data retrieval including total burner hours, cycles, and a history of the last 10 lockouts with time stamps.
• NEMA 4X / IP66 protection rating when mounted remotely using compatible extension kits.
• Smart LED indicators for immediate status and diagnostic awareness.
• Included interface cable for direct connection to the BurnerLogix chassis.

Specifications

• Model Number: BLL510
• Display Type: Liquid Crystal Display (LCD)
• Interface: 2 Lines, 16 Characters per line
• Operating Temperature: -4 degree F to 140 degree F (-20 degree C to 60 degree C)
• Storage Temperature: -40 degree F to 158 degree F (-40 degree C to 70 degree C)
• Humidity: 0% to 95% relative humidity, non-condensing
• Enclosure Rating: NEMA 4X (remote mount), NEMA 1 (plug-in)
• Connection: 4-inch ribbon cable included (remote kits available up to 8 feet)

Applications

The Fireye BLL510 is specifically engineered for the BurnerLogix Y and Z series burner management control systems. It is used in industrial and commercial boiler rooms to provide operators and technicians with a localized interface for burner commissioning, troubleshooting, and routine monitoring. It is ideal for applications requiring remote mounting on control cabinet doors to allow system interaction without exposing personnel to high-voltage internal components.
