SCN-TST-02-03 Flame Scanner Tester

Overview

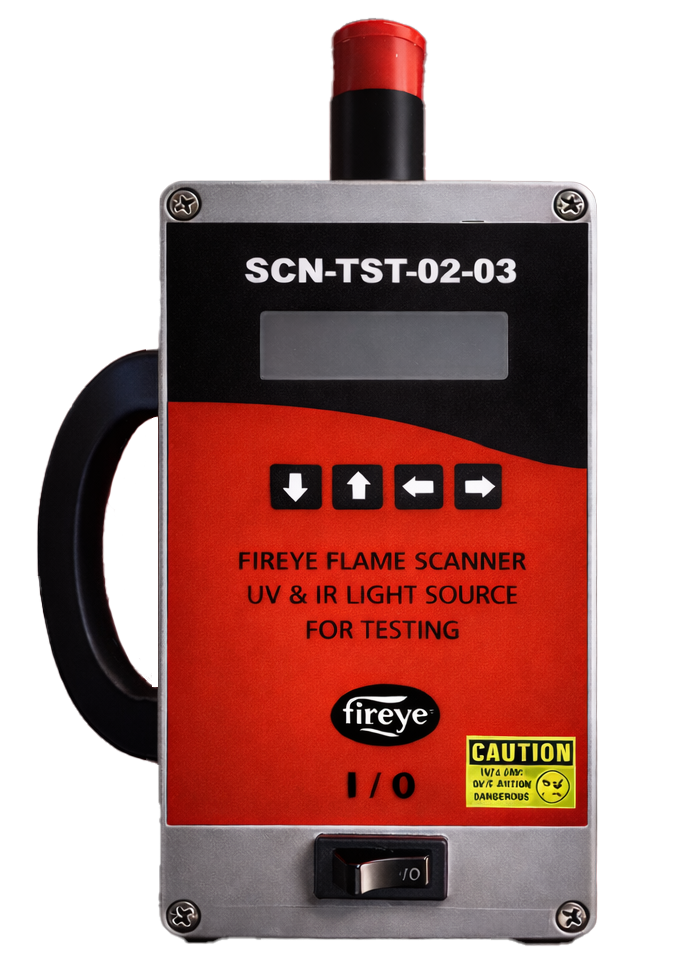

The Fireye SCN-TST-02-03 Flame Scanner Tester is a professional diagnostic tool designed for testing Fireye Paragon, Phoenix, and InSight flame scanners without requiring a live burner. The tester simulates both infrared (IR) and ultraviolet (UV) radiation, allowing technicians to verify flame scanner operation during commissioning, routine maintenance, troubleshooting, and system testing.

Designed for both field and workshop use, the SCN-TST-02-03 provides adjustable flame flicker frequencies to simulate different burner flame characteristics. It can also be used to verify the 4–20 mA analog output of integrated flame scanners, monitor flame and fault relay states, and measure flame relay switch-on and release times.

Features

• Designed for testing Fireye Paragon, Phoenix, and InSight flame scanners
• Simulates both IR and UV flame radiation
• Adjustable flicker frequency for realistic burner flame simulation
• Tests flame scanners without requiring an operating burner
• Verifies 4–20 mA analog output from compatible integrated flame scanners
• Monitors flame relay and fault relay status
• Measures flame relay switch-on and release times
• Two-line backlit alphanumeric LCD display
• Simple four-key keypad operation
• Supports battery-powered and mains-powered operation
• Rugged glass fiber-reinforced polyester housing
• Integrated carrying handle for portable field testing

Power & Operation

The SCN-TST-02-03 Fireye Scanner Tester supports two operating modes. For portable field testing, the unit can operate from a 9V battery, while the flame scanner receives power from the plant supply. For mains operation, the tester includes an integrated 24 VDC scanner power supply and accepts 100–230 VAC, 50/60 Hz input.

Applications

The Fireye SCN-TST-02-03 is ideal for:

• Flame scanner commissioning and startup
• Preventive and routine burner maintenance
• Flame detection system troubleshooting
• Flame scanner functional verification
• Testing Fireye flame scanners without a live flame
• Industrial burner and combustion system diagnostics
• Technician training and workshop testing

Specifications

• Manufacturer: Fireye
• Part Number: SCN-TST-02-03
• Product Type: Flame Scanner Tester
• Flame Simulation: Infrared (IR) and Ultraviolet (UV)
• Scanner Output Testing: 4–20 mA
• Mains Input: 100–230 VAC, 50/60 Hz
• Scanner Supply: Integrated 24 VDC supply during mains operation
• Battery Operation: 9V block battery
• Display: Two-line backlit alphanumeric LCD
• Controls: Four-key keypad
• Housing: Glass fiber-reinforced polyester
• Connections: 12-pin terminal strip
• Compatible Fireye Scanner Families: Paragon, Phoenix, and InSight

The Fireye SCN-TST-02-03 Flame Scanner Tester provides a convenient way to test and diagnose Fireye flame detection equipment under simulated operating conditions, helping technicians verify scanner performance without needing to operate the burner.
