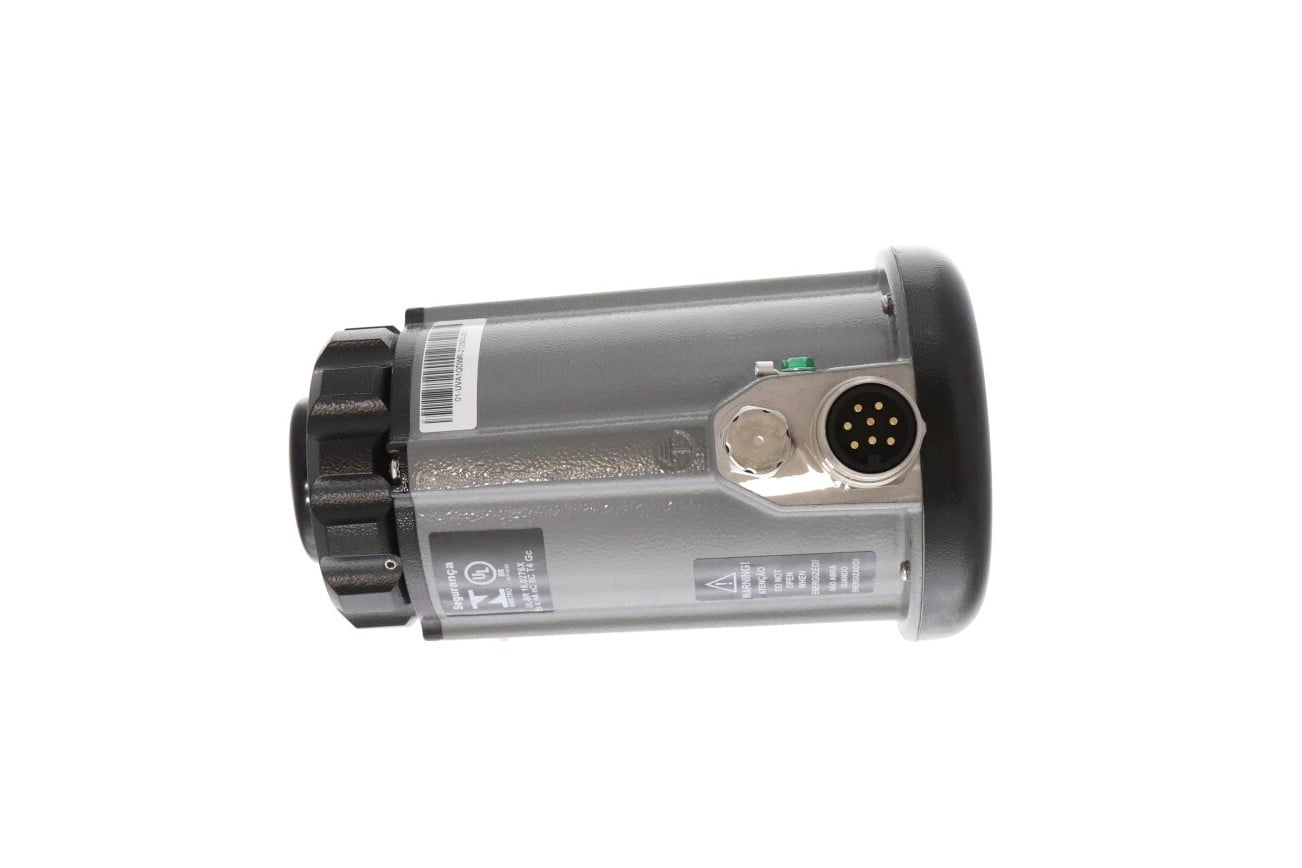

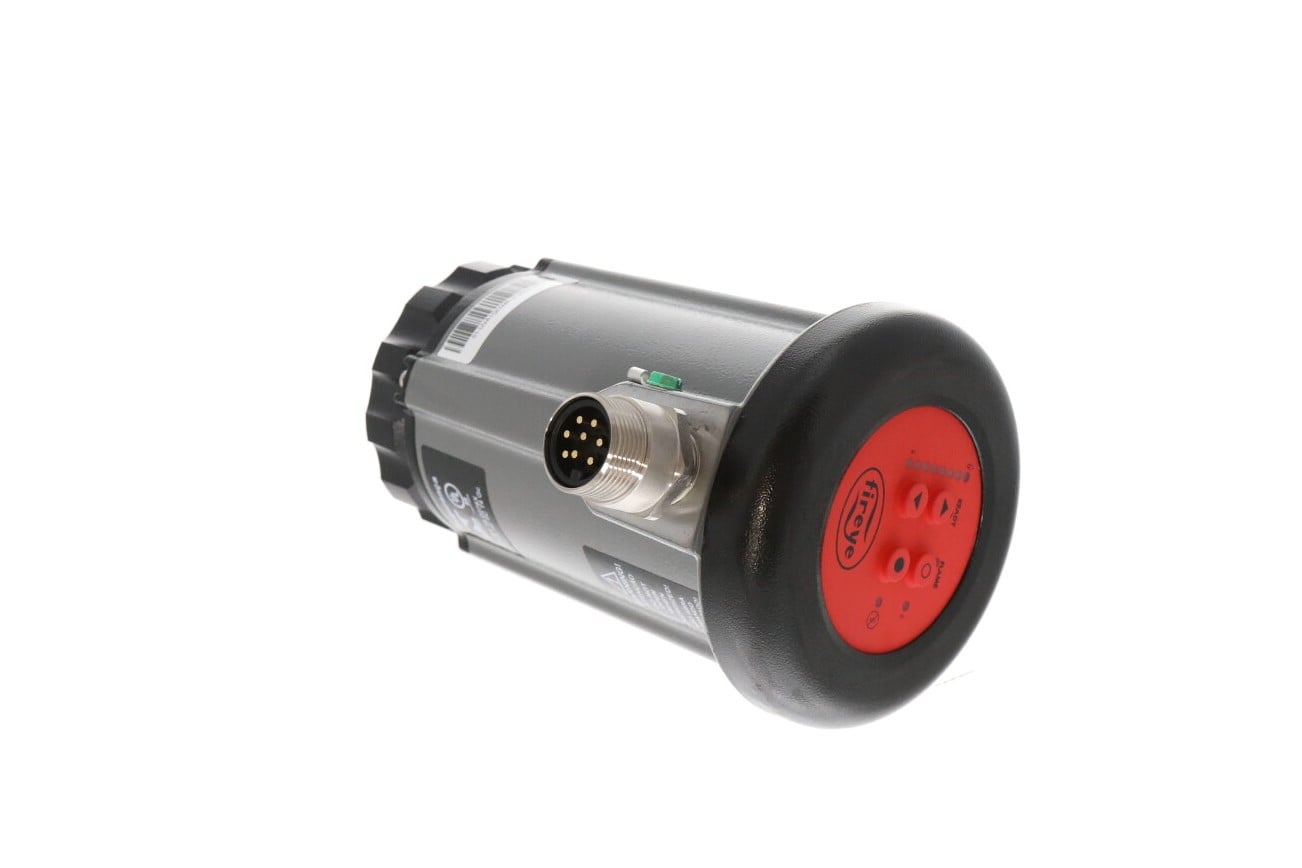

85UVF4A-1QDWR Fireye Phoenix II Integrated UV Flame Scanner

Overview

The Fireye 85UVF4A-1QDWR Phoenix II is an advanced, microprocessor-based integrated flame scanner designed for precise ultraviolet (UV) flame detection and monitoring. As a self-checking device, it incorporates a solid-state UV sensor and an internal flame relay, eliminating the need for a remote flame amplifier. It is engineered to improve the safety and reliability of combustion systems by providing fast and accurate flame verification in demanding industrial and commercial environments.

Features

• Ultraviolet (UV) sensor for accurate and reliable flame detection.
• Internal flame relay with automatically set ON/OFF thresholds.
• User-selectable Flame Failure Response Time (FFRT) for application flexibility.
• Full self-diagnostics and electronic self-checking for enhanced safety.
• 4-button keypad with multiple LED indicators for flame signal strength, relay status, and fault codes.
• Compact and rugged cast aluminum housing with a gray polyester powder coat.
• Quick-disconnect 8-pin electrical connection for easy installation.
• One optically isolated 4-20mA analog output for flame strength monitoring.

Specifications

• Input Power: 24 Vdc nominal, 200 mA supply current.
• Relay Outputs: Flame Relay (SPST N.O.) and Fault Relay (SPST N.C.).
• Contact Rating: 2 A @ 30 Vdc, 2 A @ 230 Vac (maximum resistive load).
• Analog Output: 4 to 20mA dc, maximum load 750 Ohms.
• Ambient Temperature Rating: -40 degrees F to 150 degrees F (-40 degrees C to +65 degrees C).
• Humidity: 0% to 95% relative humidity, non-condensing.
• Cooling/Purge Air: 4 SCFM (113 l/min) at 3/8 inch mounting flange.
• Weight: Approximately 4.70 to 5.90 lbs (2.13 to 2.69 kg).
• Mounting: Compatible with 60-2692 or 60-2919 mounting flanges.
• Cable: Uses P/N 59-546 multi-core 8-conductor shielded cable.

Applications

The 85UVF4A-1QDWR is suitable for detecting ultraviolet emissions from fossil fuel flames including natural gas, coke oven gas, propane, methane, and light petroleum distillates. Common applications include:

• Industrial boilers and furnaces.
• Power generation plants (coal and gas).
• Petrochemical and refinery facilities.
• Duct burners and low NOx burners.
• Incinerators and waste gas units.
• Manufacturing plants and large commercial HVAC systems.
