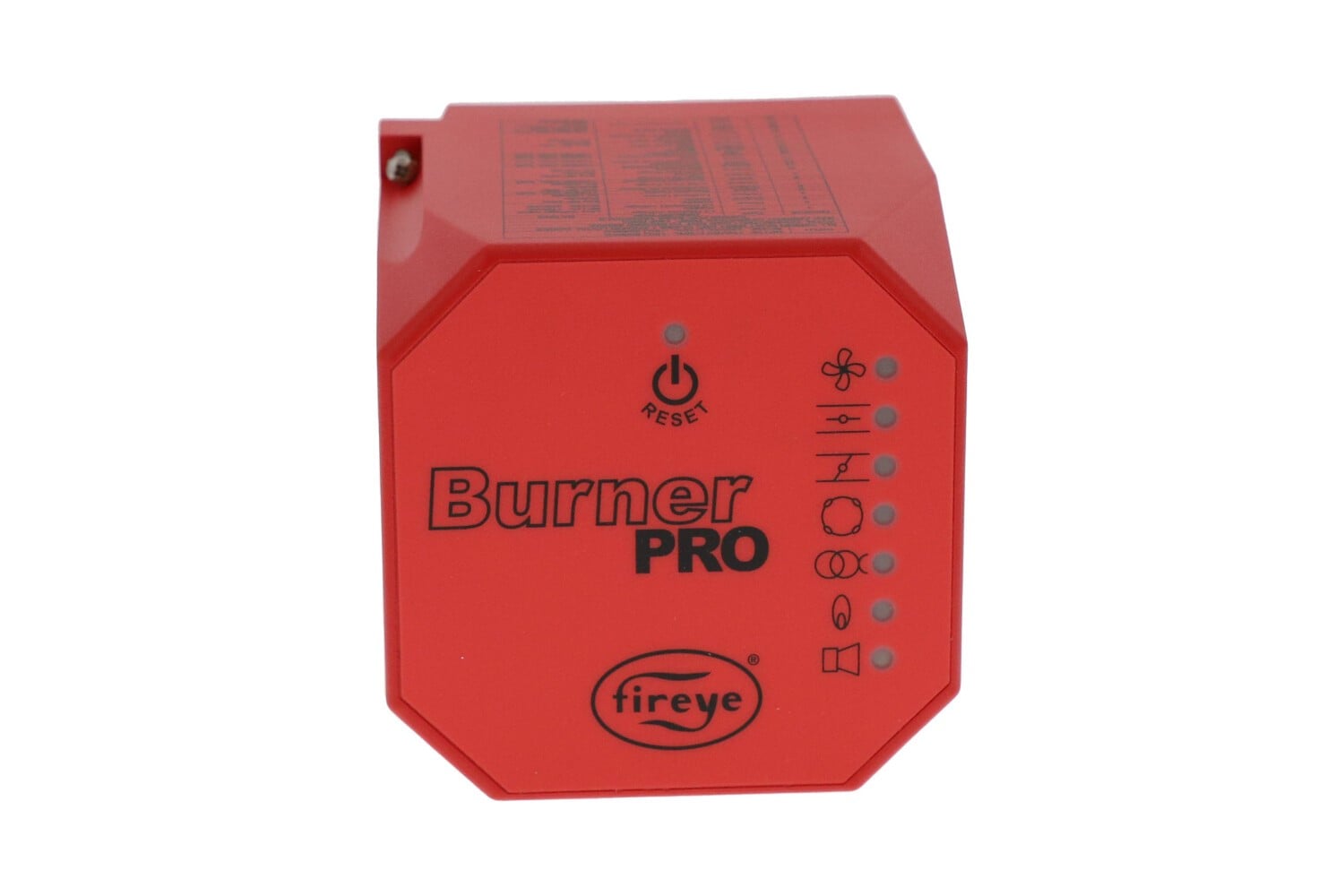

BP110UV-S3 Fireye Burner Control

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier, IP40. Compatible with 60-2981-1 and Siemens LFL wiring base

Overview

The Fireye BP110UV-S3 Burner Control is a compact, microprocessor-based, primary flame safeguard control for single burner commercial heating and process equipment firing oil and gas fuels. It is designed to provide proper burner sequencing, ignition, and continuous flame monitoring. This specific model operates on 110VAC and utilizes Series 3 timings with a non-self-check UV amplifier, suitable for non-permanent operations that require burner recycle at least once every 24 hours.

Features

• Non-volatile lockout capability.
• Proof of fuel valve closure and air-flow proving.
• Run/Check feature allowing the operator to stop the program sequence at different positions.
• Remote and local reset functions.
• One second flame failure response time.
• Seven SMART LEDs provide operating status, flame quality, and diagnostic lockout information.
• Real-time internal diagnostics for added safety integrity.
• Extended temperature operation of -40°C to 60°C with an over-temp inhibit feature.
• High capacity relay contacts.

Specifications

• Model: BP110UV-S3 (Series 3 timings).
• Voltage: 110 VAC (+20%, -15%) 50/60 Hz, single phase.
• Flame Monitoring: UV non-self check amplifier.
• Protection Rating: IP40 (except wiring base).
• Power Consumption: 7 VA.
• Operating Temperature: -40°C to +60°C (-40°F to 140°F).
• Compatibility: Fireye 60-2981-1 and Siemens LFL wiring base.
• Shipping Weight: Approximately 2.5 lbs (1.13kg).

Applications

• Provides flame supervision for on-off, multi-stage, or modulating burners.
• Used in commercial heating and process equipment that fires oil and gas fuels.
• Suitable for single burner applications, including small to medium-sized steam or hot water generating boilers.
• Ideal for non-permanent operations requiring a burner recycle at least once every 24 hours.
