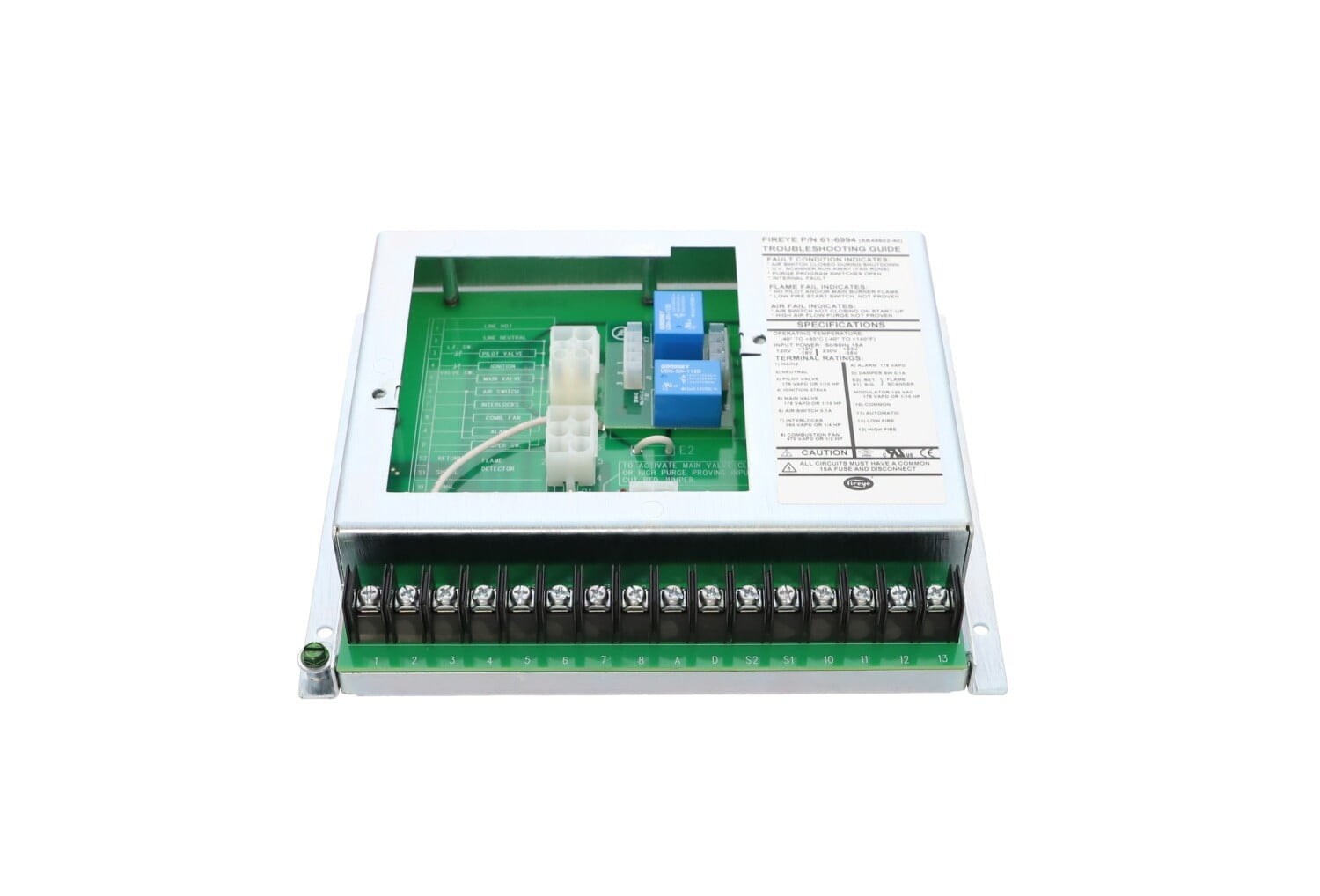

61-6994 Fireye Base (SB49602-40)

61-6994 Fireye Base (SB49602-40)

Overview

The Fireye 61-6994 (SB49602-40) is a specialized modulation wiring base designed for use with the Fireye SB Series Flame Safeguard Control system. It serves as an expanded external terminal base specifically engineered for burner management systems that require modulation or air damper control. This base functions as a direct drop-in replacement for the obsolete Eclipse VeriFlame part number 49602-40, allowing for seamless upgrades of legacy combustion equipment to modern Fireye controls.

Features

• Designed for modulation sequence control units within the SB Series.
• Acts as a robust interface for connecting field wiring from the burner and valve system to the control unit.
• Direct mechanical and electrical replacement for the retired Eclipse VeriFlame 49602-40.
• Features an expanded external terminal layout to accommodate complex modulation wiring requirements.
• Durable industrial construction suitable for harsh combustion environments.

Specifications

• Part Number: 61-6994 (SB49602-40)
• Compatibility: Fireye SB Series Flame Safeguard Controls
• Style: Expanded External Terminal Base
• Maximum Current Rating: 15 Amps
• Shipping Weight: Approx. 1.0 – 3.0 lbs
• Dimensions: Approx. 8.37 x 6.75 x 2.00 inches
• Approvals: Tested to EN298, UL listed, and FM approved when used with appropriate SB series controls.

Applications

• Industrial and commercial burner management systems.
• Systems requiring automatic ignition and continuous flame monitoring with modulation (air damper control).
• Retrofitting and replacing obsolete Eclipse VeriFlame combustion control systems.
• Power generation, industrial boilers, and process heating equipment firing gas, oil, or combination fuels.
