AGG02 Siemens Heat Insulating Lens

Overview

The Siemens AGG02 is a heat-insulating glass kit designed to protect ultraviolet (UV) flame detectors from high temperatures in industrial and commercial burner applications. Specifically engineered for use with Siemens QRA series flame detectors, such as the QRA2, QRA4, and QRA10, this insulating lens extends the service life of the UV cell by providing a thermal barrier against radiant heat. It is a critical accessory for maintaining the reliability of flame supervision systems in high-heat environments.

Features

• High-quality heat-insulating quartz glass construction designed to withstand significant thermal stress

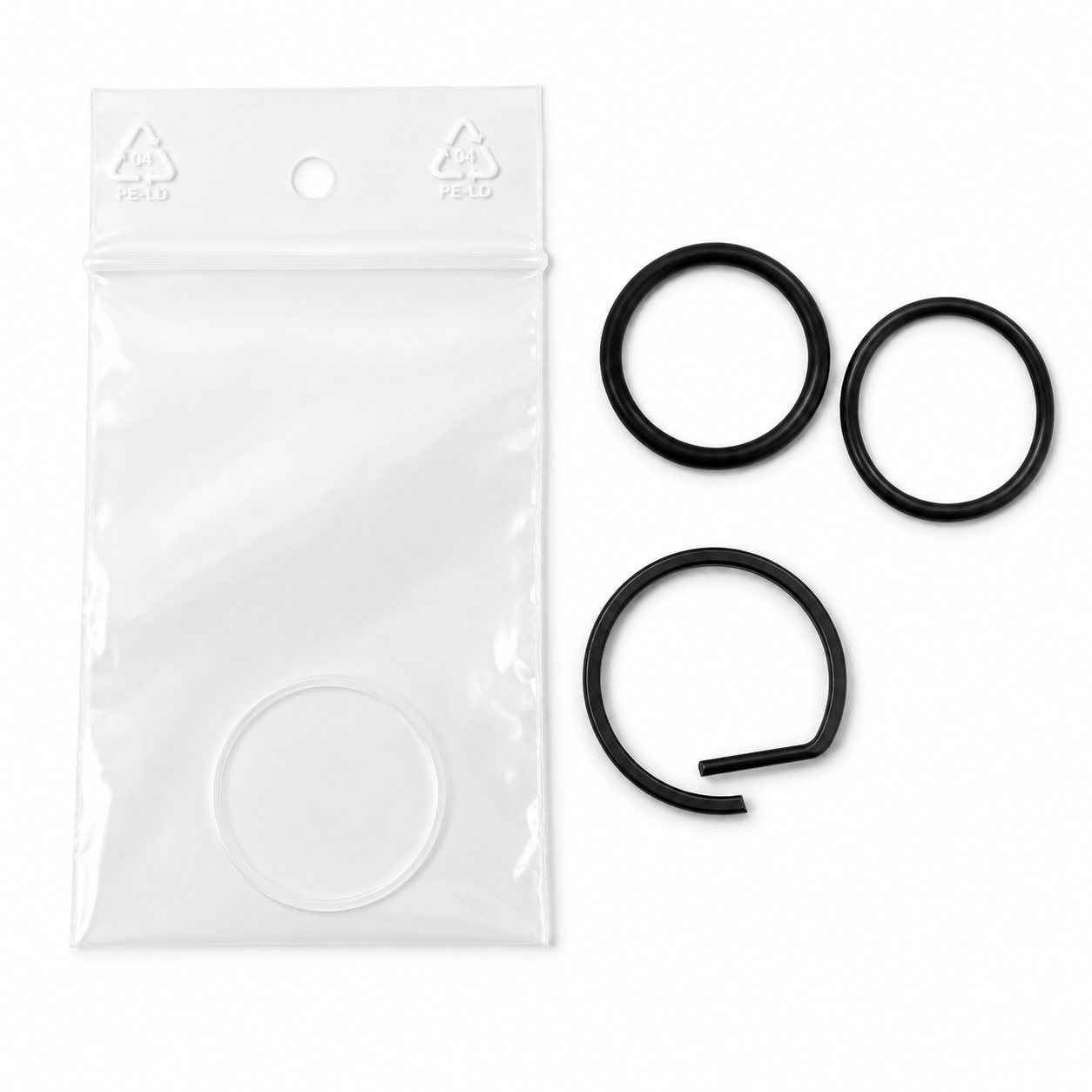

• Comprehensive kit includes the insulating lens, a spring washer, and an O-ring for a complete installation
• Provides effective thermal protection for the sensitive UV cells within flame detectors
• Compatible with various mounting accessories including AGG04 fixing adapters and AGG06 lens holders
• Compact and lightweight design facilitates easy integration into existing gas train or burner assemblies

Specifications

• Model: AGG02
• Manufacturer: Siemens
• Material: Heat-insulating glass / Quartz glass
• Dimensions: Approximately 23 mm diameter x 3 mm thickness
• Weight: Approximately 0.006 kg (6 grams)
• Components Included: Heat-insulating glass, spring washer, and O-ring
• Compatibility: Designed for QRA2, QRA4, QRA10, QRA53, QRA55, and AGG16 mounting couplings

Applications

• Thermal insulation for Siemens QRA series ultraviolet flame detectors in industrial burners
• Protection of flame sensors in high-temperature combustion environments to prevent premature failure
• Used in conjunction with AGG06 glass holders to provide combined lens and insulation functionality
• Suitable for use in gas trains and fuel trains for both oil and gas-fired equipment
• Integration with Siemens burner controls and flame safeguard systems like the LMV5 or LGK series
