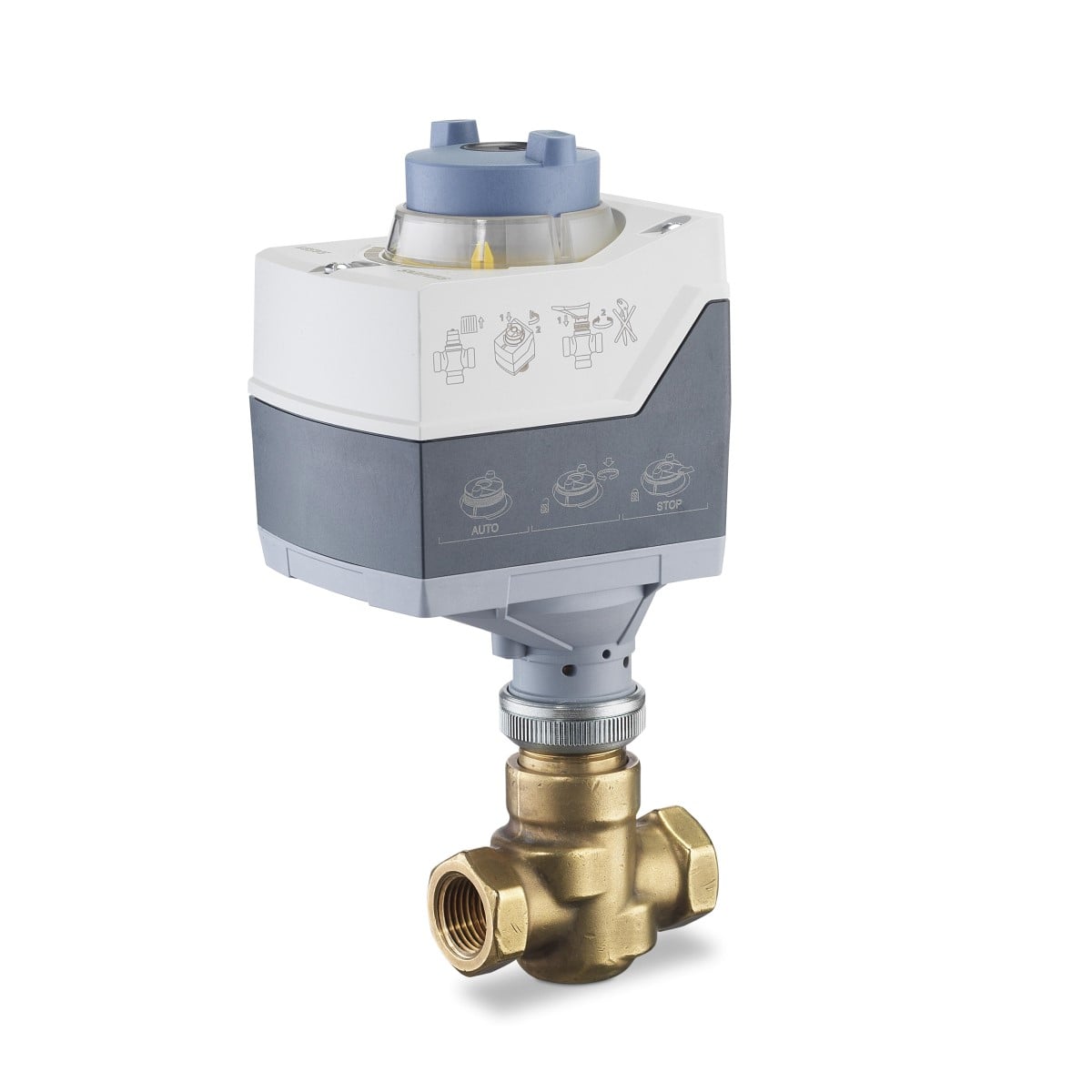

364-02000 Siemens 2-Way Normally Closed Brass Valve with SAS61.03U Actuator
$271.18
MT Series 2W Valve asy ANSI 250 NC ModEqPct 1/2″ Internal Thread x Internal Thread 0.4Cv 24V 0-10V/4-20mA NSR
Overview
The Siemens 364-02000 is a 2-Way Normally Closed Brass Valve assembly paired with a Siemens SAS61.03U Powermite 599 MT Series electronic actuator. Operating on a 24 VAC/DC supply voltage, this robust valve and actuator combination is designed to deliver precise proportional control for HVAC and terminal unit building automation applications, responding reliably to 0-10 Vdc or 4-20 mA control signals.
Features
- Durable brass body with female NPT by female NPT (FxF) end connections
- Integrated SAS61.03U non-spring return electromotoric actuator
- Fast 30-second runtime for agile response
- Direct-coupled universal bonnet for easy installation and maintenance
- Low leakage rate adhering to ANSI Class IV standards
Specifications
- Valve Size: 0.5 inch
- Flow Coefficient: 0.4 Cv
- Supply Voltage: 24 VAC/DC
- Control Signal: 0-10 Vdc or 4-20 mA
- Positioning Force: 90 lbs (400 N)
- Nominal Stroke: 5.5 mm (7/32 inch)
- Enclosure Rating: IP54
- Feedback Signal: 0-10 Vdc position feedback
- Body Material: Brass
Applications
- Precise control of hot or chilled water in HVAC systems
- Terminal unit building automation systems
- Fan coil units, convectors, unit conditioners, radiation, and reheat coils
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 4 × 4 in |
